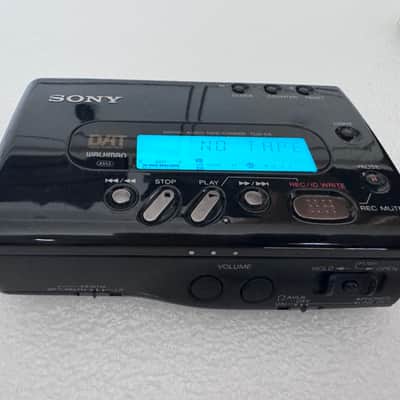

Sony TCD-D8 DAT Walkman 2000 - Excellent

The Sony TCD-D8 is a legendary, ultra-compact portable Digital Audio Tape (DAT) Walkman. Released by Sony in 1995, it became a highly sought-after tool for live music recording, field audio, and high-fidelity digital transfers. It offered a rare balance of near-studio audio quality in a package small enough to fit inside a jacket pocket.

Key Specifications

• Media Format: Digital Audio Tape (DAT).
• Audio Resolution: 16-bit linear quantization.
• Sampling Frequencies: 48 kHz, 44.1 kHz, and 32 kHz.
• Frequency Response: 20 Hz to 22,000 Hz (at 48 kHz sampling).
• Signal-to-Noise Ratio: Exceeds 87 dB.
• Total Harmonic Distortion: Under 0.008%.
• Power Supply: Four AA batteries or an external 6V AC adapter.
• Weight: Approximately 500 grams with batteries installed.

Key Features

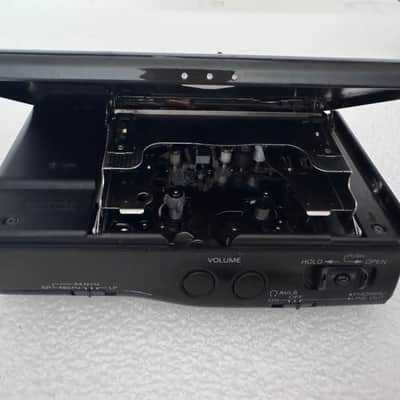

• Helical Scan Technology: Uses a tiny rotating head drum similar to a VCR. This allowed the 4mm narrow tape to capture massive amounts of uncompressed digital data.
• Long Play (LP) Mode: Doubles the tape capacity. A standard DT-120 tape can store up to 240 minutes of audio at a reduced 32 kHz sampling rate.

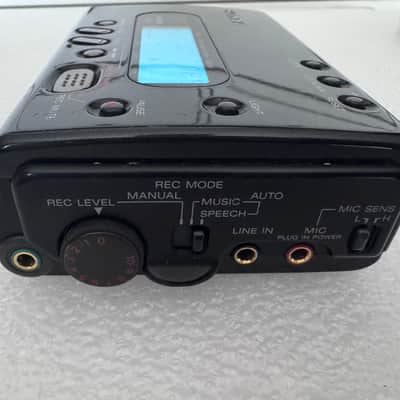

• Digital and Analog Connectivity: Features a specialized 7-pin digital I/O port. This allows direct digital-to-digital transfers with CD and MD players, alongside standard 3.5mm microphone and line inputs.
• Date & Time Stamp: Automatically injects a real-time data clock stamp into the tape sub-code during recording.

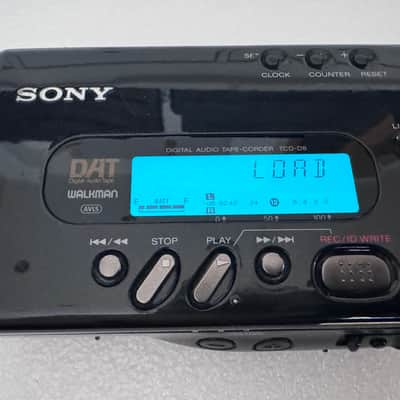

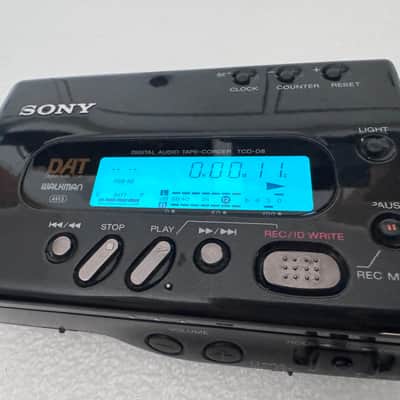

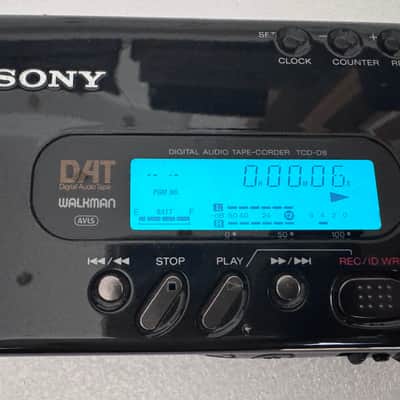

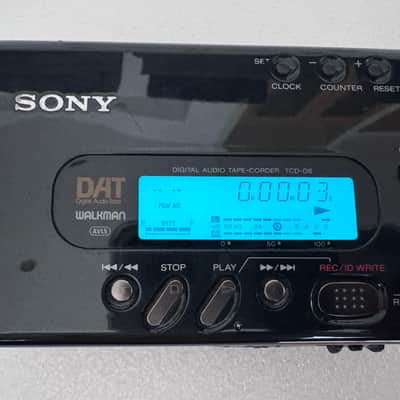

• Backlit LCD Display: Shows precise tracking info, audio levels, and operating status.

Known Issues & TroubleshootingIf you own or are looking to buy a vintage TCD-D8, keep the following mechanical issues in mind:

• Pinch Roller Failures: The rubber on the original pinch rollers degrades over decades. This causes tape slippage, eating tapes, or failing to play entirely.
• Tape Guide Realignment: The mechanical tape guide pins inside the helical assembly are known to slowly wiggle loose over time. They require careful, precise physical realignment to fix audio dropouts.
• Leaky Capacitors: Like many mid-90s Sony portable devices, the surface-mount electrolytic capacitors on the circuit board can leak over time. This causes low audio output, distorted sound, or total power failure.
