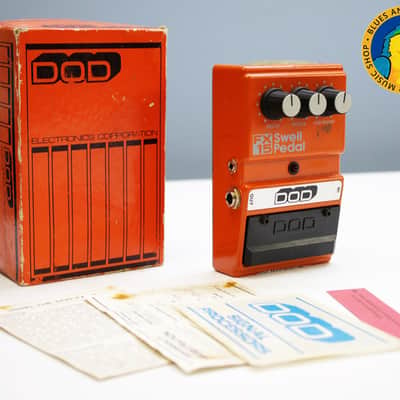

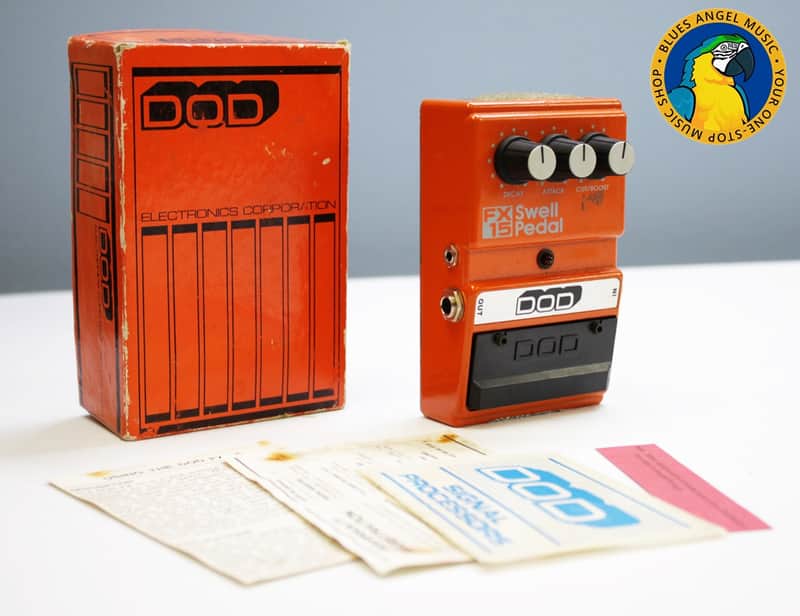

DOD FX15 Swell Pedal **Includes original Box!**
Outside the lower 48 states? Message us! In many cases, we can ship worldwide :)

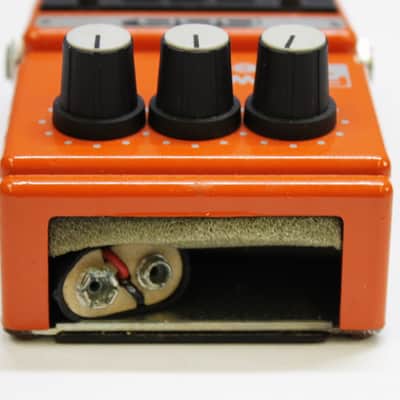

***This is an awesome vintage pedal made in Japan! Comes with original box! The front battery cover is missing, but the pedal is in great woking condition otherwise***

We ask you to look at our pictures and invite you to reach out with any questions. We're happy to help!

# Scott #

06/25/2026

DESCRIPTION

Founded in 1973 by David Oreste DiFrancesco and John Johnson, DOD Electronics was later purchased by Harman, the parent company of DigiTech. DOD effects are popular within the experimental/noise music community, and are prized for their unique sounds. In 2013, the DOD brand was revived with a number of re-releases of classic effects.

The FX35 Swell Pedal is a unique concept in effects pedals; it was designed to emulate backwards guitar sounds. It features attack, decay, cut and boost controls. The FX35 did not sell well and was discontinued in 1986 after only two years of production.

FEATURES

General

• Effect Type: Swell / Volume Modulation Pedal
• Circuit Type: Analog VCA (Voltage Controlled Amplifier)
• Production Years: 1984–1986
• Switching: Momentary Footswitch (effect active only while switch is pressed)
• Bypass: Buffered (not true bypass)

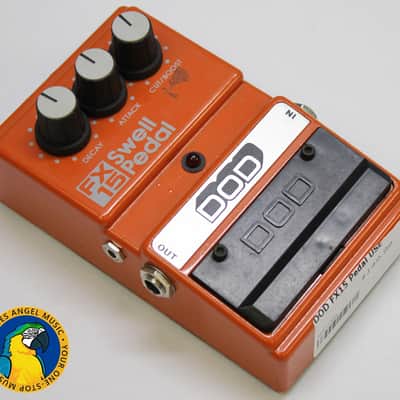

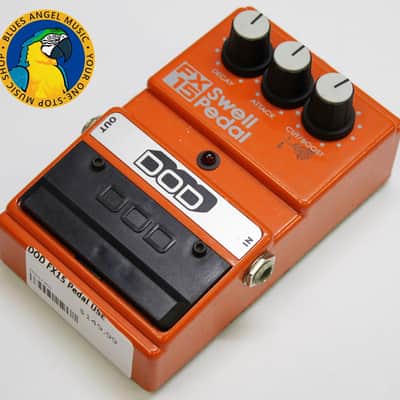

Controls

• Attack – Controls how quickly the signal cuts or boosts when the switch is pressed
• • Range: Approximately 20ms to 1 second
• Release – Controls how quickly the signal returns to normal after the switch is released
• • Range: Approximately 0.7 to 2 seconds
• Cut/Boost – Adjusts the amount of attenuation or gain
• • Up to -37dB Cut
  • Up to +15dB Boost
  • Unity Gain at center position

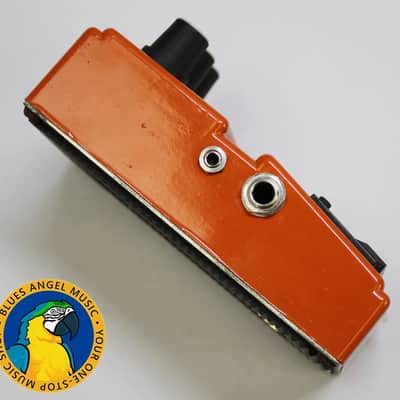

Connections

• Input: 1/4" Instrument Input
• Output: 1/4" Instrument Output
• Power Input: 9V–12V DC External Adapter
• Battery: Internal 9V Battery Operation

Technical Specifications

• Input Impedance: 500kΩ
• Output Impedance: 1kΩ

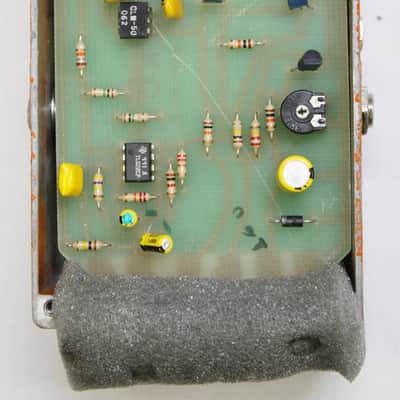

• Notable Components:
• • CLM-50 Optoisolator
  • TL022CP Op-Amp

Features

• Violin-like volume swells
• Pedal steel-style volume effects
• Tremolo-style pulsing via repeated footswitch taps
• Solo boost capability
• Can increase gain and saturation when placed before overdrive/distortion pedals
• Unique momentary operation for expressive real-time control

Finish

• Original DOD FX Series enclosure
• Gray chassis with orange graphics (period-correct finish)

Made In

• USA

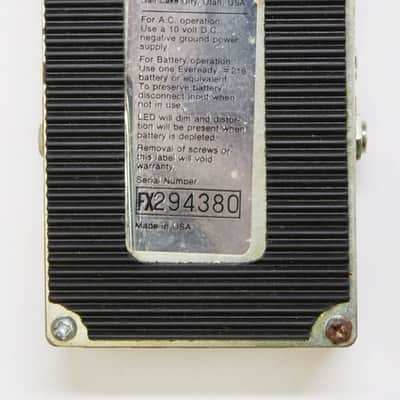

Power Requirements

• 9V Battery or 9V–12V DC Adapter
• Low current draw (approximately under 20mA reported by users)
