Description

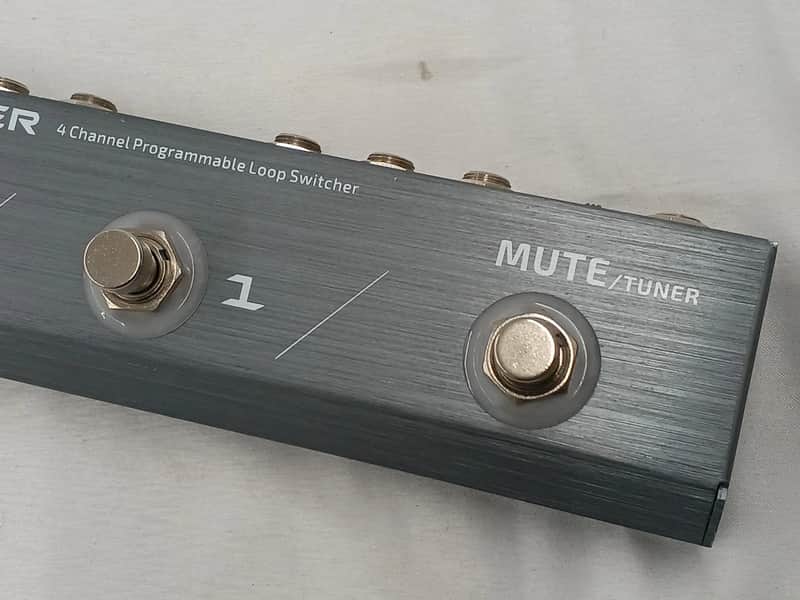

Patch Kommander is a light-weight, programmable loop switcher that keeps your pedals and effects in order. Four true-bypass loops guarantee a pristine signal, a built-in input buffer saves your highs and harmonics, and an ultra-intuitive control panel sets you free from complex, annoying patch programming.

Features

• Compact size, rock solid aluminum casing
• 4 independent relay-based True Bypass audio loops
• Switchable high quality input buffer for preventing high frequency loss
• Mute/Tuner function with independent tuner output
• SW A/B function for amp channel switching
• Low switching noise
• 2 switching modes: Direct mode for instant access and Preset mode with 12 programmable presets for different combinations

Attributes

• Color: Silver

Technical Specifications

• Dimensions: 1.89" H x 15.87" W x 2.2" D
• Weight: 1.18 lbs
• Inputs: 1 x 1/4" (Input), 1 x 1/4" (Tuner), 4 x 1/4" (FX Return)
• Outputs: 1 x 1/4" (Output), 1 x 1/4" (SW A/B), 4 x 1/4" (FX Send)
• Power Source: 9V DC power supply (sold separately)
• Effects: Utility & Signal Router
• Processing Type: Digital
• Presets: 12 programmable presets
• Power Usage: 150mA
