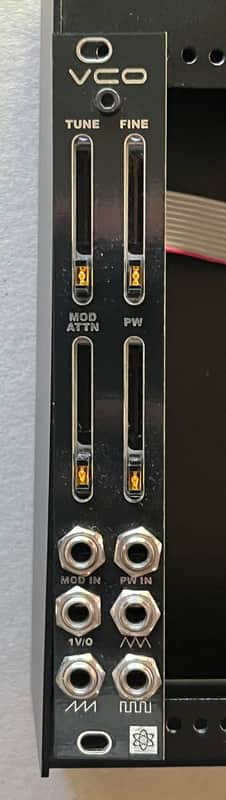

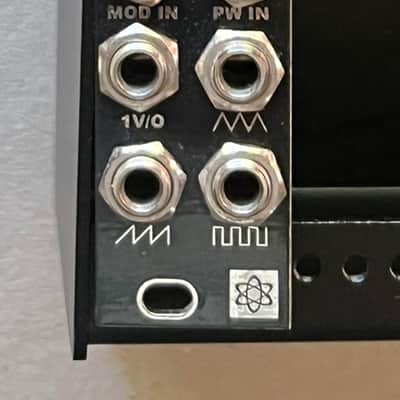

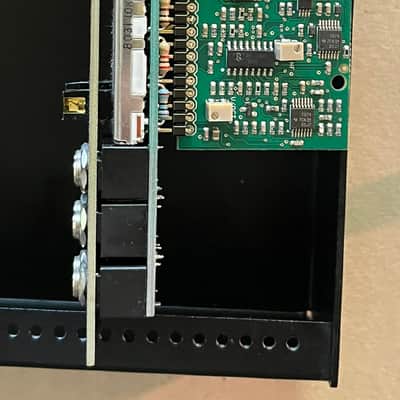

Synthrotek VCO - voltage controlled oscillator Eurorack module - built from kit by me (experienced builder) - with power cable & screws.
from original product description:
--------------------------------------------------------
The VCO is an analog voltage controlled oscillator with a wide frequency range and 8 trackable octaves. It uses the Curtis CEM3340 reissue chip, which is famous for its outstanding sound quality. This is the fully assembled version of the VCO.
Features:
Simultaneously available triangle, saw and square wave outputs
Frequency range: 5Hz to 28kHz
FM input and attenuation control
PWM input and attenuation control
1V/o input, tracks 8 octaves
Specifications:
Width: 4HP
Depth: 53mm
Power draw:
+12V: 42mA
-12V: 31mA
