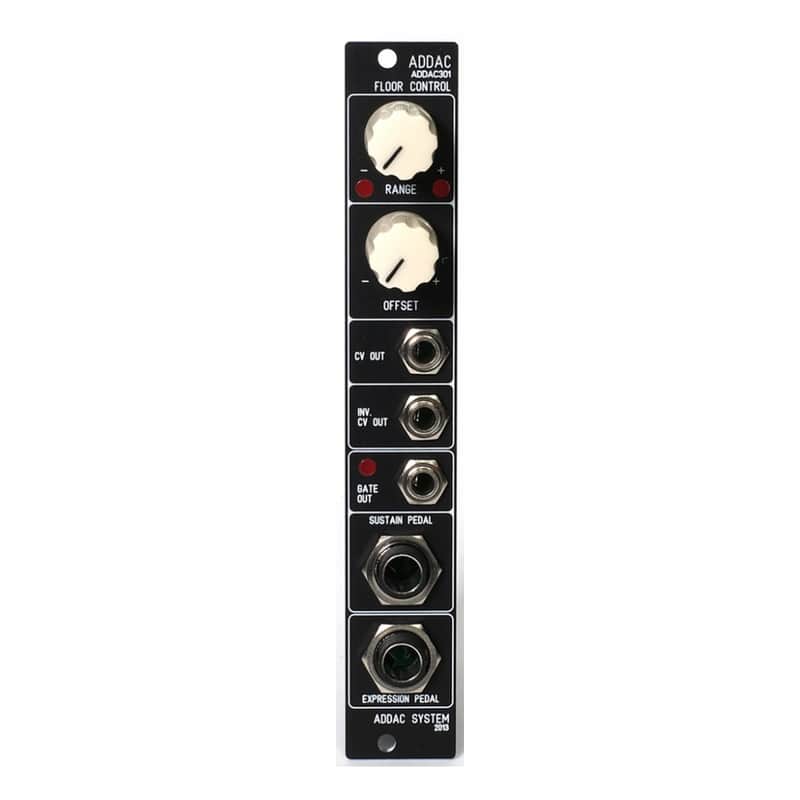

ADDAC 301 Floor Control Eurorack Pedal CV Control Module

While we were working on our new VC Stompboxes we tested several expression pedals and it became clear to us that most often, while playing a modular system, our hands are busy, cables around our neck, some between our teeth and still our feet are normally free.
It's also kinda normal to have an expression pedal lying around somewhere so we thought of bringing these back, clean up the dust and put them to good use.

This module allows the connection of any standard expression and sustain pedal.

The expression pedal action can be fine tuned with Range and Offset knobs.
Range defines the voltage range (-10v, +10v).
Offset transposes the range by (-5v, +5v).
Two leds, plus and minus, monitor the CV Output
Positive and inverted output jacks.

The sustain pedal action will generate a gate signal on the gate output.
One led monitors this output.

The ADDAC301 also features a bus board +5V Adaptor, this provides +5V to any bus board.
It ships with an extra jumper which, if placed on the back of the module, can enable this feature.
Note: before inserting the jumper to activate the +5V delivery, make sure your busboard does not already provide it. If it is the case, do not use the jumper on the module.
