Up for sale a Radial Engineering ProDI Single-Channel (Mono) Passive Instrument Direct Box! We are an Authorized Dealer of Radial Engineering! This instrument is Brand New / Never Played With / Never Displayed and it comes with the Full Manufacturer's Warranty*. Unit comes in its Original Packing.
-

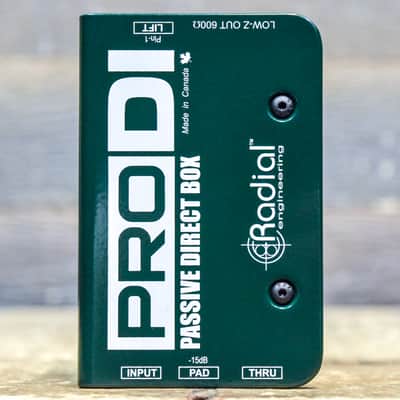

RADIAL PRODI PASSIVE DIRECT BOX
The Radial ProDI is a passive direct box that combines exceptional audio performance with solid dependable construction, making it the ideal general duty direct box for stage and studio.
The heart of the ProDI is a custom wound Radial transformer. It features an exceptionally high 140kΩ input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal MuMETAL® shield to protect against electromagnetic fields that can cause unshielded transformers to distort.
This compact direct box begins with 14-gauge steel I-beam skeleton for added rigidity and Radial's unique book-end design that creates a protective zone around switches and connectors. Glass filled nylon connectors and high cycle switches combine with the mil-spec PCB and internal RF filtering to provide durability and noise-free performance. A full bottom no-slip pad provides both mechanical isolation and electrical insulation to further protect against the rigors of professional touring.
The ProDI is ideally suited for instruments such as bass guitar, active acoustics, keyboards and just about anything else! When you consider all of the features and the affordable price tag, it is no wonder the Radial ProDI has become one of the most popular direct boxes ever made.
The Radial ProDI… Spectacular performance at a price that anyone can afford!
-
FEATURES:
- Compact passive direct box for stage and studio
- Able to handle huge transients without distortion
- Transformer isolation eliminates noisy ground loops
- Plug and play easy to use feature set - on stage or in the studio
-
SPECIFICATIONS
Audio circuit type : Passive, transformer based
Number of channels : Single channel (mono)
Frequency response : 20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range : 128dB
Maximum input : +18dB @ 20Hz
Total harmonic distortion : 0.01% from 20Hz~20kHz @-10dB
Phase deviation : 1° @ 100Hz; 8° @ 20Hz
Input impedance : 140k Ohms, unbalanced
Output impedance : 150 Ohms, balanced
Transformer : Eclipse ET-DB2, 12:1 ratio
Shield : Faraday, MuMETAL® can
Input pad : -15dB
Ground lift : Disconnects pin-1 at XLR output
XLR configuration : AES standard (pin-2 hot)
Connectors : 1/4" in & thru, XLR-M out
Construction : 14 gauge steel chassis & outer shell
Finish : Durable powder coat
Size (W x H x D) : 70 x 108 x 44mm (2.75” x 4.25” x 1.75")
Weight : .54kg (1.2lbs)
Shipping size (W x H x D) : 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
Shipping weight : 0.61 kg (1.35 lbs)
Power : Passive, no power required
Conditions : For use in dry locations only between 5°C and 40°C
Warranty : Radial 3-year, transferable
-
*The full manufacturer's warranty is only valid through us.
All our items are fully verified by our pro technician and/or adjusted by our pro luthier before being very carefully packed by our pro service team here at the shop prior to shipment, buy with confidence!
---------------------------------------------------------------------
Canadian customers must pay any applicable sales taxes.
Please refer to the shipping and payments details for prices.
**Depending on your location, free shipping may not apply to certain heavy or oversize orders.
You can contact us for confirmation before buying.
Shipping cost to USA includes lower 48 states only.
For any other locations, please send us an email for a quote!
We Ship Worldwide!!!
To international buyers (outside Canada): Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
