Condition:

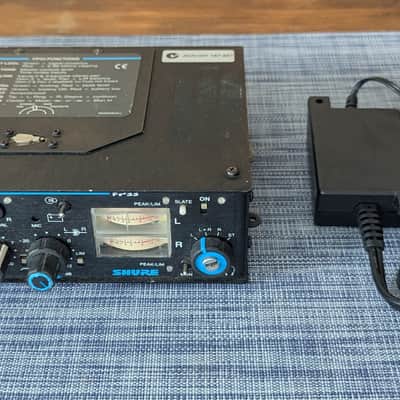

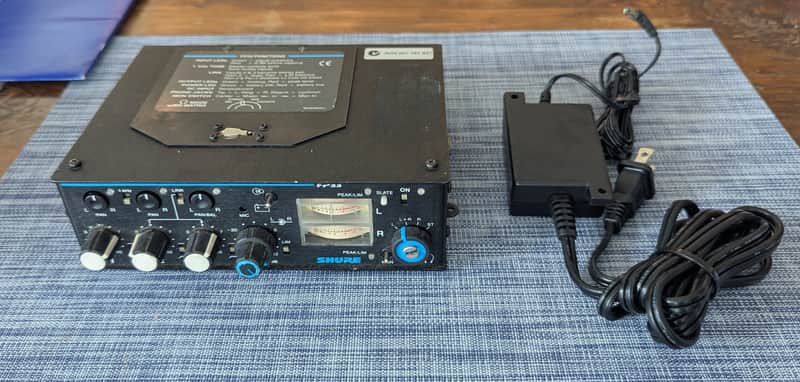

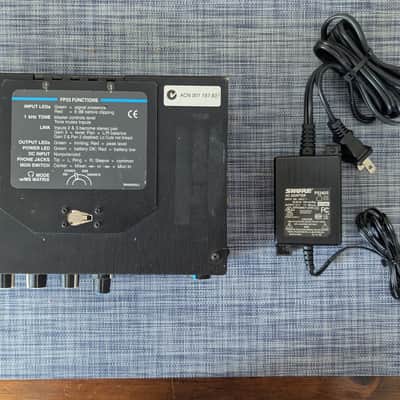

Everything works as it should. Includes FP-33 unit and Shure P24US power supply.

Description:

The Shure FP33 is a three-input, two-output portable stereo mixer designed for professional electronic news gathering (ENG), electronic field production (EFP), and on-location film production. The FP33 mixer sets a new standard for portable mixer performance and features. An exceptionally low-noise design makes the FP33 ideal for use with digital transmission links or digital video and audio recording media, including DAT. Lightweight, compact, and rugged, the FP33 is designed to withstand the most demanding field production conditions.

All types of dynamic and condenser microphones may be used with the FP33. The mixer provides 48 V phantom, 12 V phantom, and 12 V T (A-B) power for operating condenser microphones. It will operate for at least 8 hours on two 9 V alkaline batteries. An external 12–30 Vdc power source, such as a Shure PS20 or PS20E ac adapter, may also be used.

Features:

• Exceptionally quiet design, suitable for use with DAT and other digital formats
• Extended frequency response of 20 Hz–20 kHz
• Dynamic range greater than 100 dB
• Transformer balanced inputs and outputs for superior rejection of RFI and electromagnetic hum
• Three selectable mic/line inputs
• Two selectable mic/line outputs
• Wide range input gain controls handle hot signal levels without attenuators
• 48 V phantom, 12 V phantom, and 12 V T (A-B) micro-phone power
• Pop-up pan pots
• Link switch gangs inputs 2 and 3 to control a stereo microphone
• Switchable low-cut filters on each input
• Bi-color LED signal presence and peak indicator for each input
• Professional VU meters with selectable timed or toggled backlighting
• Dual clutched Master gain control for simultaneous or separate adjustment of output levels
• Precision, conductive plastic, sealed rotary input potentiometers
• Bi-color LED limiter and peak indicator for each output
• Two linkable output peak limiters with adjustable thresholds and release times
• Slate microphone and slate tone with selectable functions
• Isolated two-way talk-back using Monitor In and modified Slate Mic/Tape Out jack
• High tolerance 3.5 mm jacks for stereo Tape Out and Monitor In
• 1 kHz tone oscillator

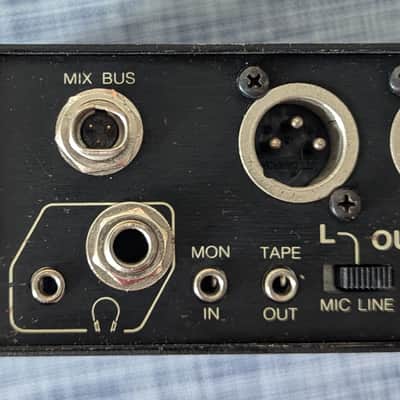

• Mix bus jack and cable to link FP33 or FP32A mixers
• Headphone monitor mode switch to select L, L+R (Mono), R, or Stereo
• Internal headphone level adjustments to balance post-master audio levels and Monitor In levels at the headphone output
• Selectable M/S decoding circuit for headphone monitor.
• Mixer/Monitor In switch (locking and momentary)
• Internal Monitor defeat switch for split-feed headphone operation
• Headphone volume control
• 1/4 in. and 3.5 mm jacks for stereo headphone outputs.
• Customized operation via internal DIP switches, trim pots, slide switches, and optional jumpers
• Regulated voltage rails (r15 Vdc) provide exceptional headroom
• Bi-color power On/Off LED
• Battery check switch and low battery warning LED
• Non-polarized external power jack
• External power operating range of 12 to 30 Vdc
• Soft-touch, color coded control knobs with raised position indicators

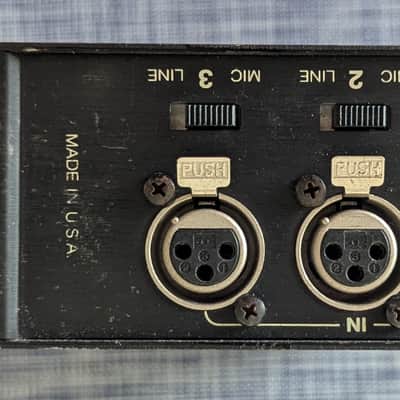

• Metal XLR input and output connectors
• Rugged, plated metal chassis
• Operates for 8 hours on two 9 V alkaline batteries
• Designed and manufactured in U.S.A.
