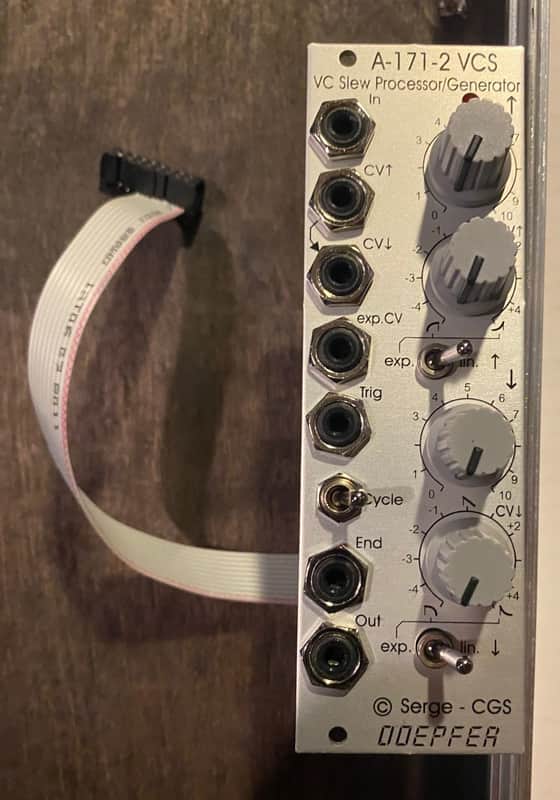

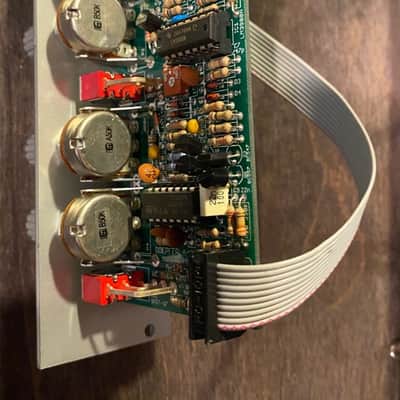

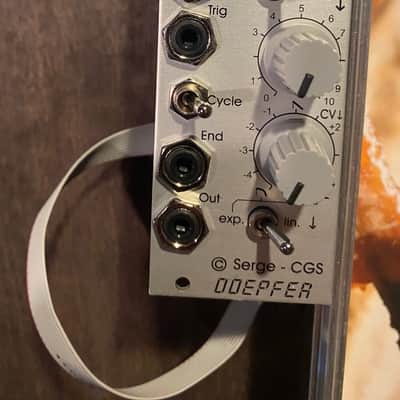

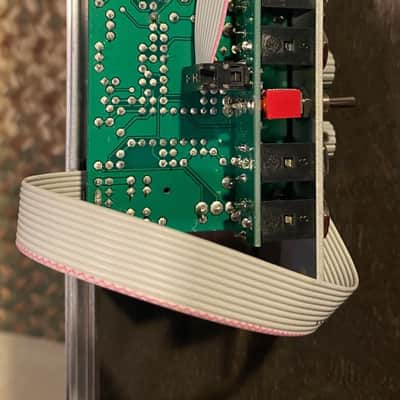

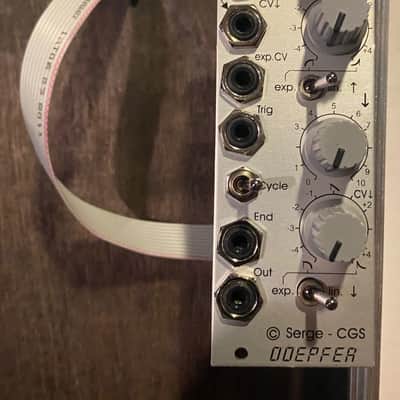

DOEPFER A-171-2 VOLTAGE CONTROLLED SLEW PROCESSOR/GENERATOR
This Doepfer A-171-2 is in new condition having never been used or mounted. It is a voltage controlled slew limiter based on the Serge VCS but with added features. It provides for manual control of the slew-up and slew-down time and CV control of the slew-up and slew-down time with polarizer. Switches for linear/exponential shape of the rising section and the falling section of the response curve are provided, together with a signal input (the signal to-be-slewed), output, and CV up and down inputs (affected by the CV up and down controls and the corresponding exp./lin. switch). CV up and CV down sockets are normalled. An exponential CV input is mainly used for VCLFO/VCO applications in cycle mode or as common exponential control for both up and down times in slew mode. The trigger input is for envelope generation or retrigger in VCLFO/VCO mode, a trigger pulse starting the envelope or retriggering the VCLFO/VCO. The End output turns high as the output falls below about 20mV and turns low as the outputs goes beyond about 3.5V.In cycle mode a rectangle signal is generated. The cycle on/off switch when "on" cycles the End output to the trigger Input to generate cyclic signals like a VCLFO/VCO, max.
Width: 8 TE / 8 HP / 40.3 mm
Depth: 60 mm (measured from the rear side of the front panel)
Current: +30mA (+12V) / -30mA (-12V)
SHIPMENT WITHIN THE CONTINENTAL U.S. ONLY
