Description

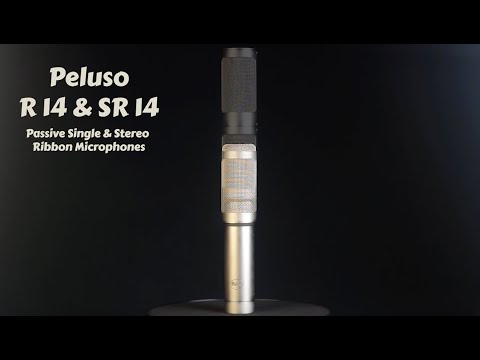

When designing the R 14, TR 14 and SR 14 microphones, Peluso wanted to create a classic vintage-style ribbon microphone in the vein of the early RCA microphones.

Peluso used classic long ribbon geometry. Thin corrugated aluminum ribbon is tensioned between two rare earth neodymium magnets. As the ribbon moves with the ambient acoustic air pressure variation a current is induced in the ribbon itself. This current is the microphone's output signal. The ribbon is placed just forward of the magnet center. This provides a very slight low-end roll-off on the backside of the microphone, which can be very useful if proximity effect needs to be countered.

The R 14 delivers clean, balanced output through the use of a custom output transformer. The R 14's sound is rich, warm, and silky smooth with generous low end. It is un-hyped, natural, and takes EQ very nicely. The R 14 ribbon microphone is the perfect complement to the condensers in your microphone collection.

• Long Geometry Ribbon
• Classic Ribbon Sound
• Very Low Self Noise
• Handle Very High SPL
• Custom Wound Output Transformer

Microphone kit comes as a complete system including:

• R 14 Microphone
• Wood Microphone Box
• Shock Mount
• Velvet Bag

R 14 Technical Data

• Type: Ribbon-Velocity Studio Microphone
• Operating Principal: Electrodynamic Pressure Gradient
• Magnets: Rare Earth Neodymium
• Frequency Range: 30Hz/16Khz
• Polar Pattern: Figure of 8 (Bi-Directional)
• Sensitivity: -52 dBV (re 1v/pa)
• Impedance: 200 ohms
• SPL: 149 dB
• Equivalent Noise: 0 dB(A)
• Power Requirements: none required or recommended
• Size: 36mm x 176mm
• Weight: 496g
