RJR Stereo Insert Switcher

RJR SIS is designed for mastering use. You'll find it to be somewhat different than other units. The main reason is that it has no amplification stages. The audio runs through gold plated connectors, a small amount of solid core copper wire, copper traces on the circuit board, and the high quality Omron relays. Sonically it's really no different than running audio through a nice quality XLR cable like Mogami or Canare starquad. The unit has no sound of its own as it is simply a switching matrix, whereas some other units have amplification stages and audio processing functions that will impact the audio.

Cables are not included. And also, be aware that the DB25 pinout is the Tascam style.

The RJR SIS is the perfect way to add switchable stereo inserts into your workflow. This unit was built to order for me and has been a wonderful addition to my studio. RJR makes some of the best custom gear!

HIGHLIGHTS:

- 100% passive, no amplification circuits whatsoever

- Audio only travels through copper wire, copper traces, and switch contacts

- Extremely low noise floor; power supply only used for relay activation and indicator lighting

- Uses standard Tascam (AES/EBU) DB25 snakes

- Built by hand, one unit at a time, in the USA

SPECS:

- Balanced stereo audio path throughout

- Input XLR jacks connect directly to output XLR jacks when all inserts are "out"

- Eight stereo inserts, each switchable in or out (hard bypass)

- Flip function swaps position of neighboring inserts

[(1,2) or (2,1)] ; [(3,4) or (4,3)] ; [(5,6) or (6,5)] ; [(7,8) or (8,7)]

- Each DB25 connector carries fully balanced stereo send and return connections for each pair of inserts

- Input AC: Please specify 110V-120V or 220-240V when ordering

​

MATERIALS:

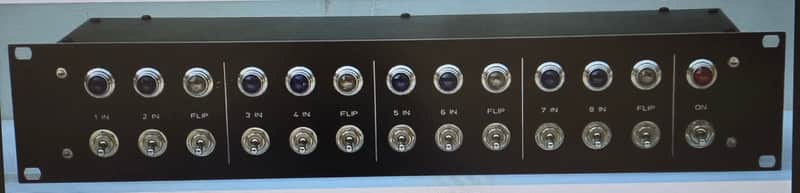

- 4mm thick black anodize aluminum front panel with CNC engraving

- 2mm thick black anodize aluminum rear panel with CNC engraving

- All aluminum black chassis

- Gold plated Neutrik XLR jacks

- Heavy duty large toggle switches

- Jewel light indicators for power, inserts, and flip

- High quality Omron relays
