Animal Factory Vivisect Eurorack Synthesizer Module w/ Tiptop Stackcables #58646

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58646

BRAND: Animal Factory Amplification

MODEL:  Vivisect

FUNCTION: Eurorack Synthesizer Module

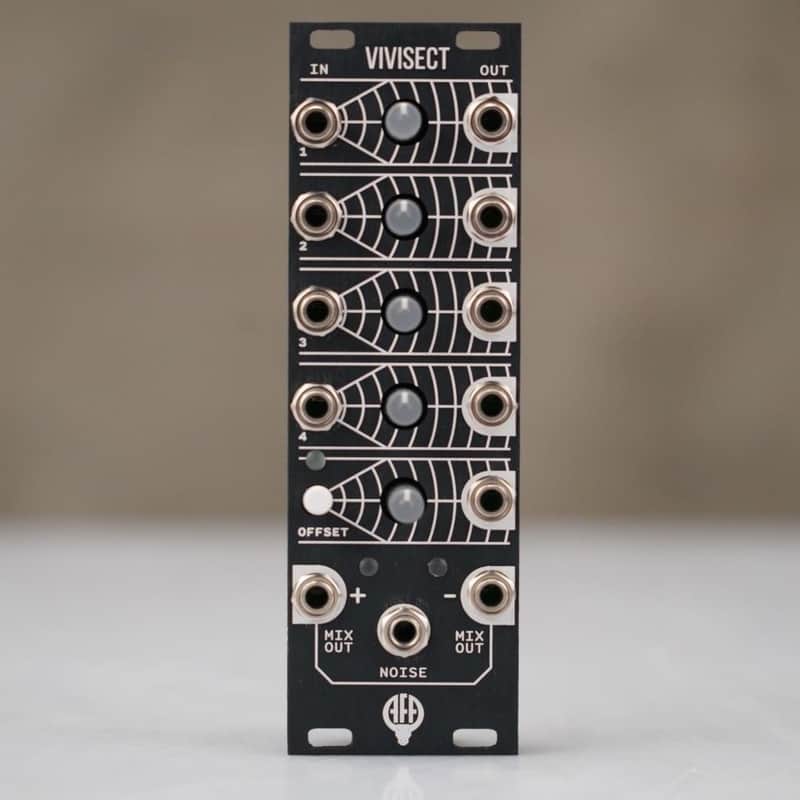

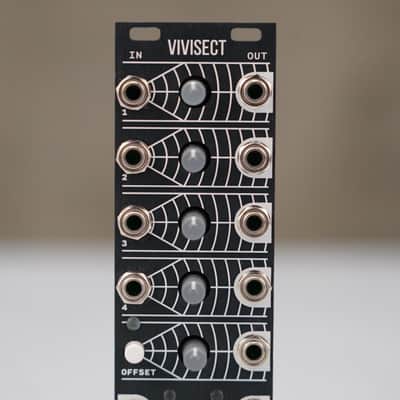

PRODUCT DESCRIPTION: This listing is for an Animal Factory Amplification Vivisect Eurorack Synthesizer Module. The Animal Factory Amplification Vivisect is an 8HP Eurorack mixer and utility module designed for processing both audio and CV signals through four channels of attenuverters, along with a switchable offset and a white noise generator.

SPECS:

• Serial # AFA-EM7-VV-223
• Version: 1.0
• Date: August 2022
• Function: The Vivisect serves as a versatile utility module, functioning as a 4-channel attenuverter, CV mixer, signal processor, offset generator, and noise source.
• Channels: It features four input channels, each with an independent output and an attenuverter (bipolar control).

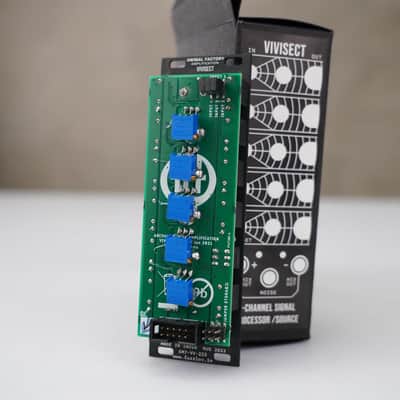

• Mixing: The four channels can be summed into a mixed output. Jumpers on the back allow for normalizing any or all of the other inputs to Input 1, enabling more complex signal flows.

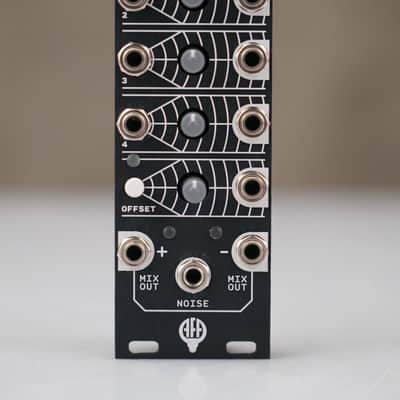

• Offset & Noise: An independent offset control (with its own attenuator) can be switched in or out of the mixed signal. A separate white noise source is also included.
• Signal Type: All inputs and outputs are DC-coupled, making it suitable for both Control Voltage (CV) and audio signals.
• Visual Feedback: The module uses lights on the buttons and outputs to indicate positive (white) and negative (blue) signal values, providing quick visual feedback on signal polarity.
• Specs:
  • Width: 8HP.
  • Depth: 46mm.
  • Power: 30mA @ +12V / 30mA @ -12V

ACCESSORIES INCLUDED: This item comes as seen in photos and includes its original module box +

• Eurorack Power Cable
• (4) Eurorack Screws
• (2) Tiptop Stackcable Patch Cables
• AFA Test Report Card & Decals

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 6" x 3" x 4"
