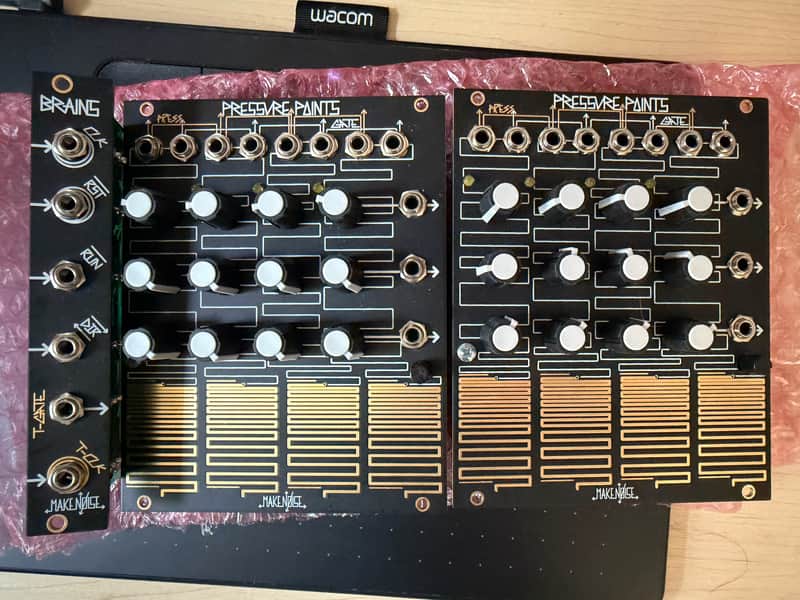

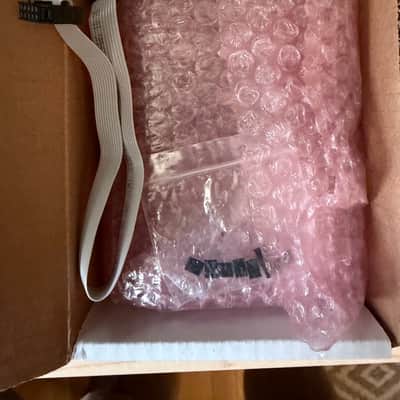

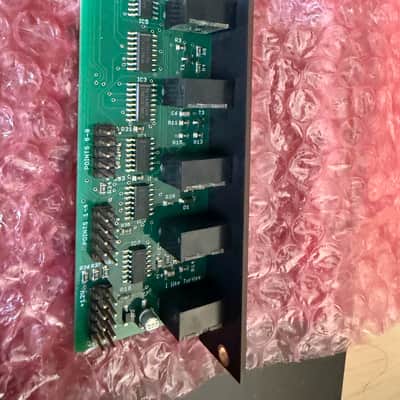

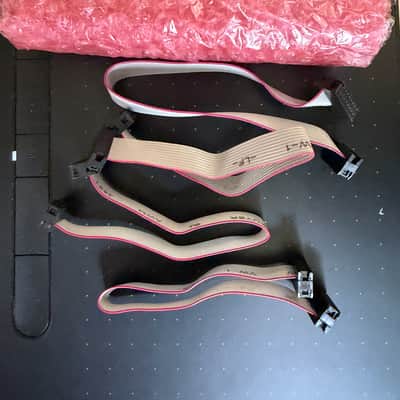

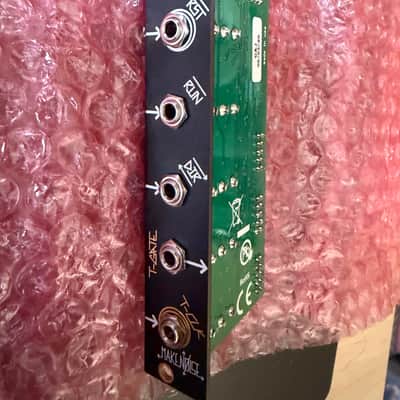

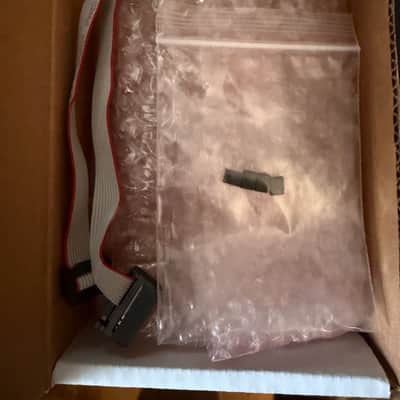

Package deal including Brains and 2 Pressure Points modules (makes a great 8-step sequencer, etc). Modules are in excellent condition and were always racked with knurlies in a smoke-free home studio. Original owner of both Pressure Point modules. Brains was purchased second hand. Everything works perfectly. Includes boxes, jumpers and all cables to connect the modules together.

Make Noise Brains

Brains, from Make Noise, is an expansion for Pressure Points. It allows for CV control over the selection of channels on the Pressure Points. With the Clock input, it will advance to the next stage. There is a reset input for starting back from the beginning. It is able to run both forwards and backwards. Up to two Pressure Points can be connected to Brains, providing eight channels to control, making an eight step sequencer with three individual channels.

Brains Features

• Clocked Sequential Binary Event Machine Pressure Points Expansion Module
• Voltage Control over Direction, RUN/ Stop and ReSeT
• Pressure Points provides data input to BRAINS in the form of touch selectable ReSeT and Hold stages and patchable ReSeT Pulses per stage
• Pressure Points provides the tuned voltages per stage
• The Touch-GATE OUT produces a Gate HIGH signal whenever a Pressure Points is touched
• Maximum number of Pressure Points that may be connected to a BRAINS is two

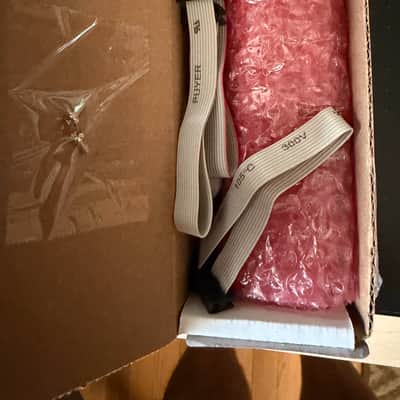

• Ships with all cables needed for expansion of one or two Pressure Points
• Pairs only with Pressure Points

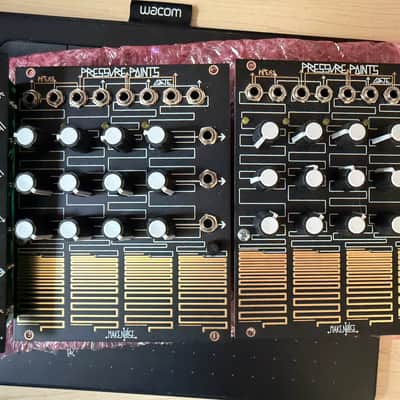

Make Noise Pressure Points

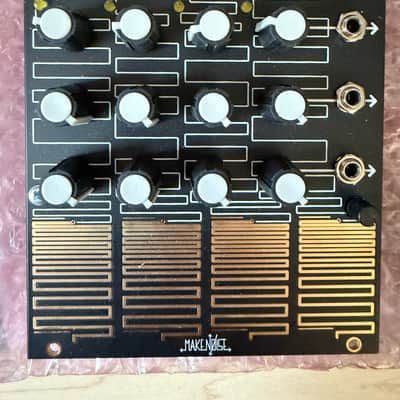

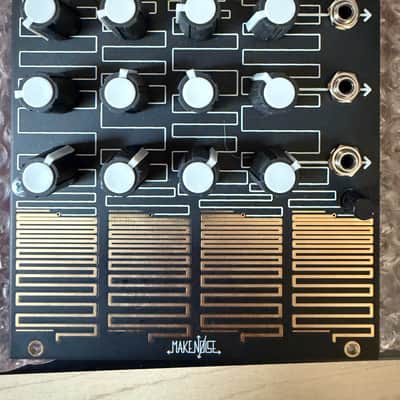

Pressure Points, from Make Noise, is a tactile control voltage generator meant to be played and touched. It provides four different sets of three voltage outputs that can be switched by touching the panels exposed board tracings. There is also a Pressure output, which measures the amount of ones finger touching the tracings, providing a higher voltage when more of the tracings are touched. A gate output is also present for both their four individual channels as well as a global gate for any time the tracings are touched.

When paired with the Make Noise Brains, one can turn Pressure points into a 3CH, four-step sequencer. A second Pressure Points can be chained with Brains, giving an eight-step sequencer.

Pressure Points Features

• Controller and Tactile Analog Sequencer Module
• The Gate signals may be used to turn portions of a patch ON/ OFF, generate Timing Events within a patch or to Trigger a Function Generator such as MATHS
• The PRESSure signals may be used to add expression to a patch by varying Pitch or Timbre in real-time, based upon the artist's input
• The Tuned Voltages may be used to play the Pitch of a sound in a traditional melodic fashion, Program Chords or Timbral shifts (aka Presets)
• Up to 4 may be CHAINed together (using CHAIN Cable), to create controllers of varying size and complexity
• All outputs are capable of driving a passive 4 way mult without loading effects (no buffered mult needed)
• Expansion port allows for sequential control via the BRAINS expander module
• Pairs well with MATHS
