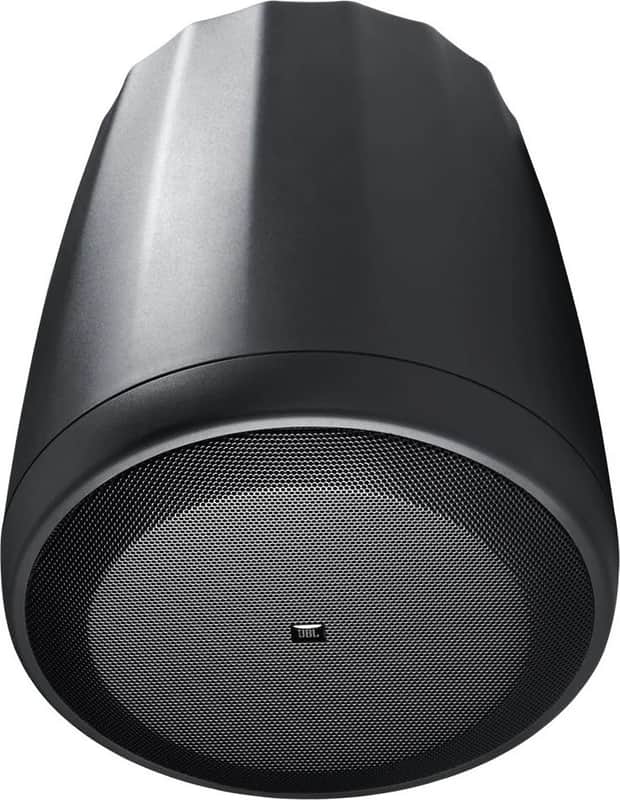

Control 65P/T incorporates JBL’s exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space.

Frequency Response (-10 dB) : 55 Hz – 20 kHz

Frequency Range (±3 dB) : 78 Hz – 18 kHz

Power Capacity : 75 Watts Continuous Pink Noise Power
(with 300 Watts peaks)
150 Watts Continuous Program Power

Nominal Sensitivity : 86 dB

Nominal Coverage Angle : 120° (+20°/-10°)

Rated Maximum SPL @ 1m : 105 dB continuous pink noise, 111 dB peak

Rated Impedance : 8 ohms

Transformer Taps : 70V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, 15W

LF Driver : 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former

HF Driver : 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former

Enclosure Material : High impact polystyrene

Grille : Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting

Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per
IEC 529 – splashproof rating.

Termination : Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.

Suspension : Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).

Safety Agency Ratings : Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Dimensions : 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.

Net Weight (ea) : 3.7 kg (8 lbs)

Included Accessories : Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors

Features:

RBI Radiation Boundary Integrator Technology
120° conical coverage
5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
75 Watts, 8 ohms and 60W multi-tap transformer
