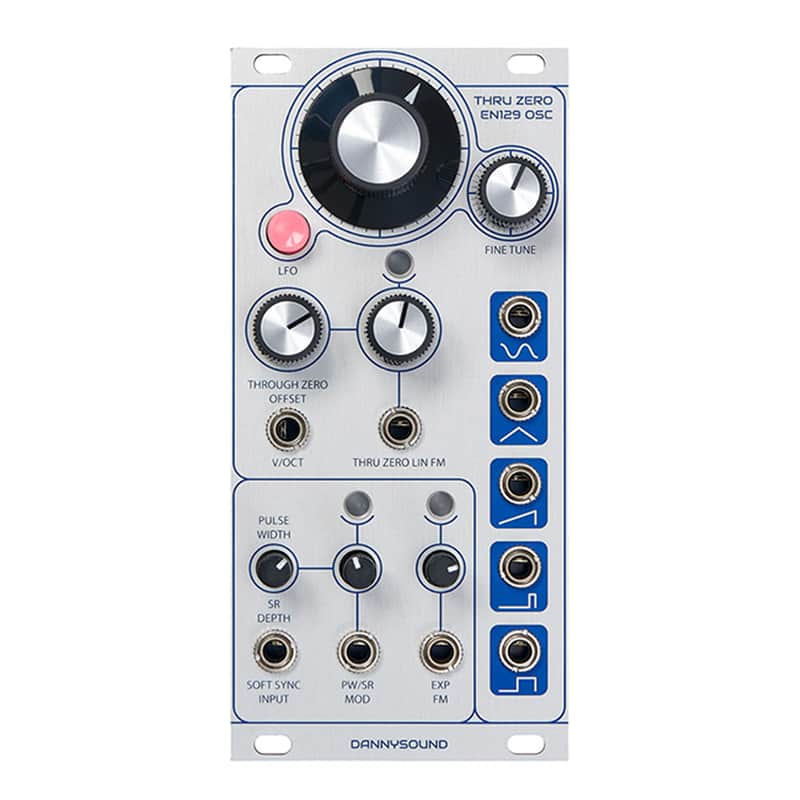

Dannysound EN129 OSC Eurorack Oscillator Module
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
This all analogue Oscillator from our pal Danny is a great way to introduce those classic fat thru zero sounds to your system. It has got loads of wave outputs so it's really versitile for wave-mixing or seperately processing related waveforms.
Manufacturer’s descriptionThe EN129 Thru Zero Oscillator is an all analogue triangle-core VCO specialising in frequency modulation. Analogue through-zero FM modulation produces a wide array of timbres particularly useful for bell like or percussive sounds.
Through-zero linear frequency modulation can be precisely dialled in thanks to a dedicated CV input attenuator and through zero offset control. Logarithmic FM is also available via its own dedicated input with attenuator and both FM inputs have an LED to indicate incoming voltages.
Simultaneous analogue wave outputs include: Sine, Triangle, Sawtooth, Square and Pulse wave with Pulse Width Modulation. The PWM control goes to zero at either end of it’s range, which is very useful for creating rhythmic sounds with voltage control. Furthermore the PWM control doubles up as wave shape modulation for the Sawtooth wave – gradually altering the waveform until it shifts half a cycle.
The EN129 features Coarse and Fine frequency controls as well as an LFO mode. LFO range is accessed via an LED pushbutton that also acts as the LFO speed indicator – the button will light up when the waveform moves through its positive cycle. A Soft Sync Input allows the phase of the oscillator to be controlled by an external oscillator for an even greater range of timbres.
The EN129 is based on the pioneering work by Douglas Kraul and Bernie Hutchins. You can read the original Electronotes article from 1981 that the design is based upon here:
Features- Soft sync input
- Through-zero linear FM
- Logarithmic FM
- Zero to zero pulse width modulation
- Sawtooth wave shape modulation
- Simultaneous outputs for sine, triangle, saw, pulse & square
- Coarse & fine tuning controls with LFO mode
- Includes power supply isolation on frequency controls
