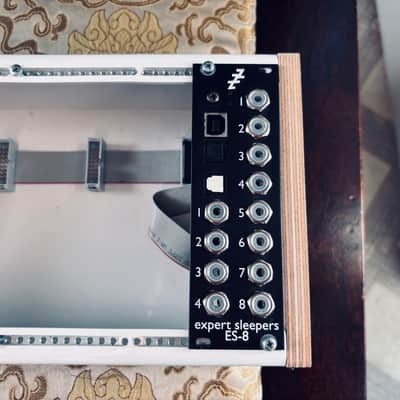

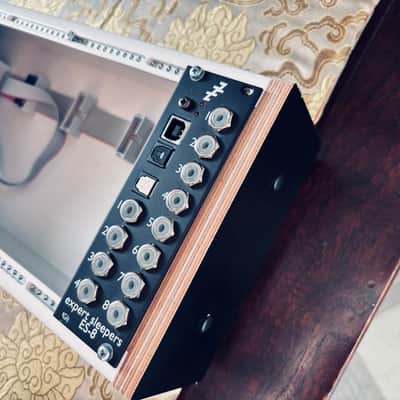

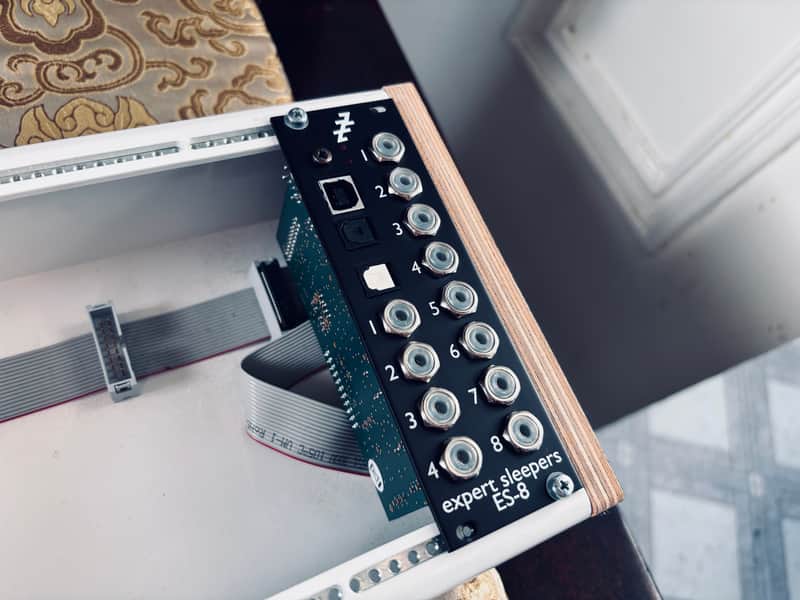

Expert Sleepers ES-8 USB Audio Interface Eurorack Synth Module
This seller has not set a shipping cost for United Kingdom. Please contact them to ask about shipping.
Our users rate Reverb
The overall condition of this Expert Sleepers ES-8 is like new
technical condition
- technical condition is perfect
cosmetic condition
- barely any signs of use, like new
- one minor discoloration around a screw hole
shipping
- shipping within USA is included in the price.
description
USB Audio Interface
The ES-8 is a USB 2.0 class-compliant audio interface in a Eurorack module, with DC-coupled inputs and outputs that can be used for both CVs and audio. As such it is directly compatible with all popular computer-based CV generation software (e.g. Silent Way, Max/MSP, Bitwig Studio, Reaktor, CV Toolkit, etc.) as well as audio and CV processing iOS apps.
The ES-8 also has ADAT inputs & outputs. This could be used for example to expand the output count via an Expert Sleepers ES-3, or to connect a traditional audio interface to add, say, mic preamps or 1/4" line outputs.
- USB socket: Type B
- Driver support: class-compliant USB 2.0 (No driver required for macOS/iOS/Linux - Windows ASIO driver available)
- Channel count: 12 in, 16 out
- Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Output connections: 8x 3.5mm jacks, DC-coupled
- Maximum output voltage: approximately ±10V DC
- Analogue inputs: 4x 3.5mm jacks, DC-coupled
- Input voltage range: approximately ±10V
- Digital I/O: 1x ADAT input, 1x ADAT output
- Expansion headers: 1 for ES-5, 1 for ES-6
The front panel is drilled for both Doepfer and Analogue Systems mounting holes (using a 'slot' rather than a single round hole). The power connector is a Doepfer standard 16 way IDC, with -12V furthest from the top of the board.
Dimensions
8 HP
50 mm deep
Current Draw
198 mA +12V
52 mA -12V
0 mA 5V
