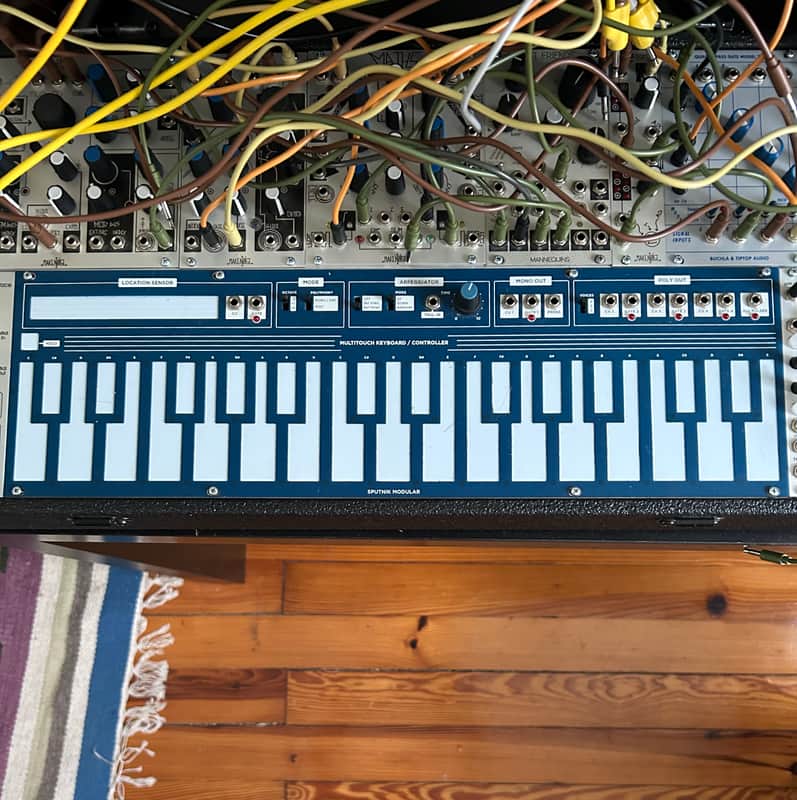

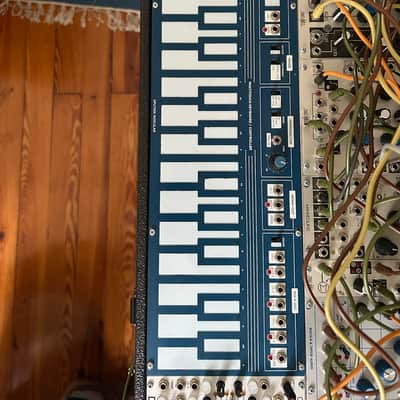

Modular Multi-Touch Keyboard Controller
The Sputnik Modular Multi-Touch Keyboard Controller includes 29 keys, up to 4 voices and the following features:
CONTROL PER KEY
- 1v/oct
- “Pressure” CV (measured surface amount)
- Gate CV
ARPEGGIATOR
- Internal and External sync switch
- Up, Down, and Random modes
- CV Trigger input
- Manual Time control control knob
- Hold
MODES
- Polyphony Mono/Arp or Poly (2,3,4 voices)
- Octave switch for +1, +2
- In Mono/Arp mode, CV2 sends CV1+2 semitones, CV3 sends CV1+4 semitones, CV4 sends + 7 semitones
- In Mono/Arp mode Gate 1 sends every gate, Gate 2 every 2nd gate, Gate 3 every 3rd gate and Gate 4 every 4th gate and can work like a clock divider
LOCATION SENSOR
- Touch sensitive location strip with both CV and Gate outputs
MONO OUTPUTS
- CV 1 out
- Gate 1 out
- Pressure CV out
POLYPHONIC OUTPUTS
- 2,3,4 voice switch
- CV 2-4 outs
- Gate 2-4 outs
- All Pulses out
- Also includes a 5v or 10v switch on the PCB for Pressure and Location
