TAD ME1TX - MICRO EVOLUTION 1 TX - BOOKSHELF SPEAKERS (Pair)

Refined to Perfection beyond Expectations
In 2016, the TAD-ME1 was born and quickly earned worldwide acclaim.
Now, its evolution — the TAD-ME1TX — takes sound to even greater heights.
Featuring a newly developed 2.5cm beryllium diaphragm tweeter, manufactured using TAD’s proprietary vapor deposition technique, along with cutting-edge innovations throughout.
Experience sound that surpasses expectations, resonating beautifully in refined spaces.

TECHNOLOGIES
Clear and vivid sound reproduction, 9 cm CST driver delivers ideal single-point-source sound.
The TAD-ME1TX boasts TAD’s proprietary CST* driver, which controls the directivity of the concentrically mounted midrange and tweeter over an extended frequency range from the point of matching phase. TAD-ME1TX’s 9 cm CST driver achieves clear and solid imaging, as well as natural sound-field reproduction. The midrange cone controls the directional characteristic of the concentrically mounted tweeter to bring the phase and directivity of their output in line in the crossover region. The result is wide-range sound reproduction from 420 Hz to 60 kHz by the CST driver alone, while achieving a natural attenuation characteristic and directivity pattern across all bands.
* CST = Coherent Source Transducer

Tweeter features a beryllium diaphragm
The TAD-ME1TX uses a newly developed, light yet rigid 25 mm beryllium diaphragm for its tweeter, manufactured with our proprietary vapor deposition technique. We have applied our computer-analyzed optimization technique called Harmonized Synthetic Diaphragm Optimum Method (HSDOM) in designing the form of the diaphragm. This technique enables the precise control of the diaphragm’s divided vibrations and piston motions, which makes possible wide-range sound reproduction of up to 60 kHz.

Midrange features a newly developed magnesium diaphragm with a high internal-loss characteristic
The midrange’s diaphragm made of magnesium alloy achieves lightweight and high internal loss properties. The combination of anodization and coating applied to the surface of the diaphragm gives it additional hardness and a yet greater internal loss. Combined with the suppression of even the smallest resonance arising from where a leading wire is connected to the voice coil, the result is clear, distortion-free reproduction in the midrange. In addition, the arm of the frame basket that houses a magnetic circuit has been redesigned to achieve much greater structural strength and allow smoother propagation of sound waves behind the midrange diaphragm.

Incredibly expansive mid-to-low frequency range
Woofer features an MACC diaphragm
The 16 cm woofer employs a Multi-layered Aramid Composite Cone (MACC) diaphragm composed of laminated layers of woven aramid fabric and non-woven fabric of different material to deliver a rich, clear sound in the low-frequency-range, as well as a coloration-free sound in the mid-to-low-frequency range. The combination of the refined Linear Drive Magnet Circuit (LDMC) and a corrugated surround made of foamed polycarbonate contributes to outstanding linearity and delivers deep and clear bass. Furthermore, the arm of the woofer basket has been redesigned to achieve greater structural strength to withstand the powerful movement of the woofer and allow smoother propagation of sound waves behind its diaphragm.

SILENT enclosure combines structural strength with an outstanding vibration-dampening characteristic
The TAD-ME1TX comes in a SILENT (Structurally Inert Laminated Enclosure Technology) enclosure, which combines sturdy birch-plywood braces with medium-density fiberboard (MDF) panels having a high internal loss to provide superb structural strength and an outstanding low-resonance characteristic. The addition of 5 mm-thick steel panels to the right and left sides of the enclosure further reduces the vibration of the cabinet down to a minimum. Moreover, acoustic absorbent chosen and placed carefully inside the enclosure, based on meticulous analyses of internal standing waves, helps eliminate standing waves that would adversely affect the sound field and imaging performance of the speaker.

Rich and natural-sounding bass
Bidirectional ADS port design contributes to rich and natural-sounding bass
As its predecessor, the TAD-ME1TX employs the Bidirectional Aero-Dynamic Slot (ADS) port design, which places slit-shaped ports (ducts) inside the right and left side-panels of the enclosure with flared openings to the front and rear to allow a smoother airflow through them.
This design helps reduce port noise generated at high amplitude levels and keeps internal standing waves from escaping from the ports, resulting in a rich, responsive bass. The symmetrically placed port openings, both laterally and along the front-rear axis, cancel out vibrations from the port movement to deliver a natural-sounding bass response.

DESIGNED FOR ELEGANCE, CRAFTED FOR PERFORMANCE
Two color variants to choose from to match room decor
The TAD-ME1TX comes in two color variants to offer options to choose from to better match the room decor. In addition to the black finish, which was available to its predecessor, the TAD-ME1TX is also available in new silver white finish. Skilled artisans spend hours finishing each enclosure with meticulous care, beginning with applying high-grade, clear coating to the surface and buffing the base coating and finishing with surface polishing. The TAD-ME1TX comes as standard with non-slip pads to be placed under the enclosure, a cleaning cloth, and a woofer grille having a minimum adverse effect on the speaker’s performance.

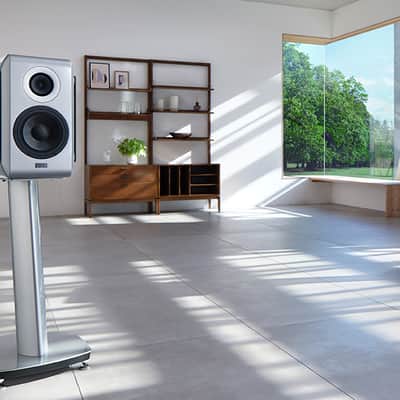

Matching speaker stand specially designed for TAD-ME1TX
The matching TAD-ST3TX-K and TAD-ST3TX-SWstands are designed to bring out the best of the TAD-ME1TX. They employ a slanted design to suppress the reflection and diffraction of the sound from the speaker and achieve greater structural strength and a high vibration-dampening characteristic.

SPECIFICATIONS
Model No

TAD-ME1TX-SW / TAD-ME1TX-K

Type

3-way, bass-reflex bookshelf speaker system

Drive Units

Woofer: 16cm (6 1/2 in.) cone;

Midrange/tweeter: concentric 9 cm (3 1/2 in.) magnesium cone and 2.5 cm (1 in.) semi -dome

Performance Data

Frequency response: 36Hz to 60kHz

Crossover frequencies: 420 Hz and 2.5 kHz

Maximum input power: 150W

Sensitivity: 85dB (2.83V, 1m)

Rated impedance: 4Ω

Weight

Weight: 21kg (46 lb) per unit

Dimensions

254mm (W) × 411mm (H) × 402mm (D)

(10 in. (W) x 16 3/16 in. (H) x 15 13/16 in. (D))

Accessories

Woofer grille, short cables x 2, non-slip pads x 4, cleaning cloth, owner’s manual
