NLC Nonlinearcircuits - 1050 Mixer Sequencer [USED]

Used - Fully Tested - Excellent Condition

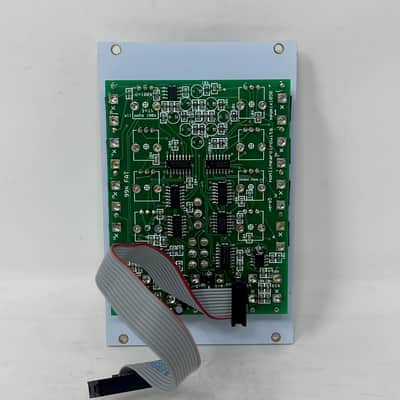

Assembled by professional builder, ships with ribbon cable

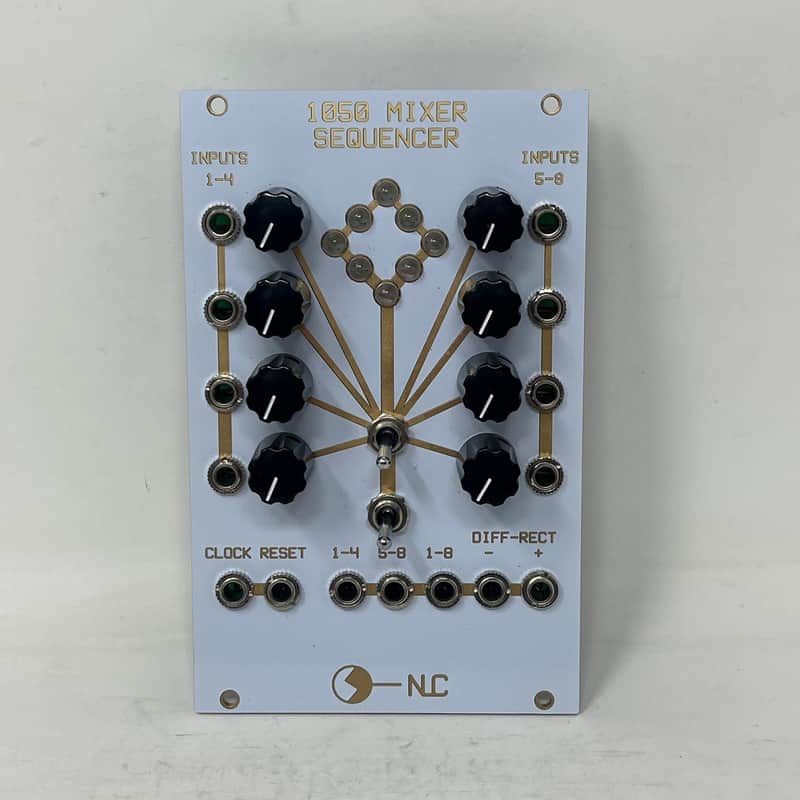

This module is based on the Arp 1050 mix sequencer. Although this version drops the VCO and push button functions. Using the switches, it is an 8 step sequencer, two 4 step sequencers, an 8 input mixer, 8 stage sequential switch, two 4 stage sequential switches and there is also a difference rectifier giving the +ve and -ve difference between stages 1-4 and 5-8.

Inputs

INPUTS 1-4 : four CV/audio inputs.
INPUTS 5-8 : four CV/audio inputs.
CLOCK : the clock input
RESET : will reset the sequencer

Outputs

1-4 : output the selected signal from 1-4
5-8 : output the selected signal from 5-8
1-8 : output the selected signal from 1-8
DIFF- : the negative output of diff/rect operation from all inputs
DIFF+ : the positive output of diff/rect operation from all inputs

16hp
