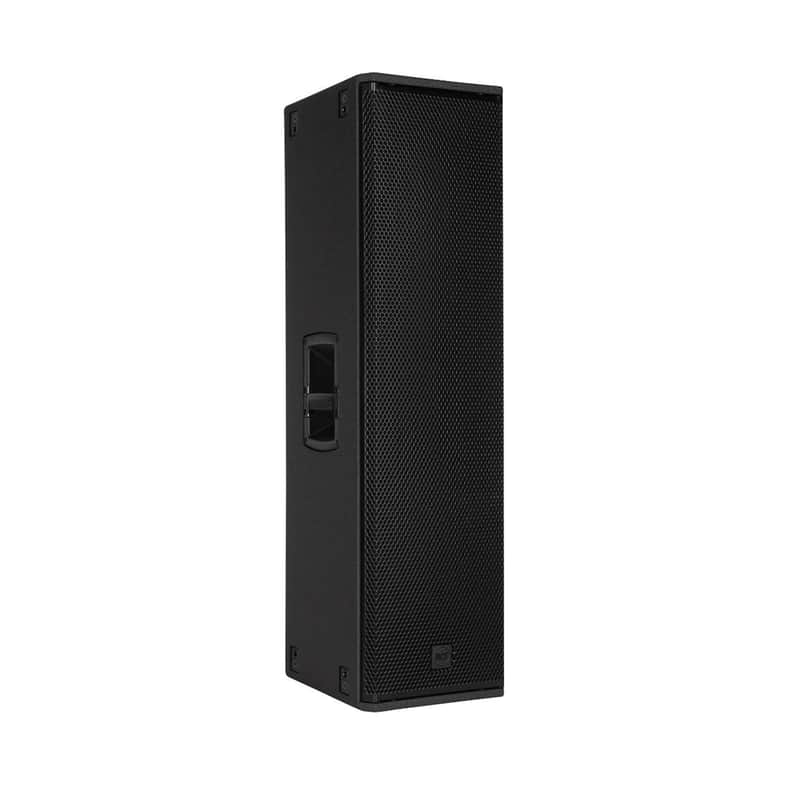

RCF NXW44-A Active Two Way Professional Column Speaker Black - 2100 W

The RCF NXW 44-A is a column speaker masterfully engineered from the ground up to deliver stellar audio performance for bands, DJs, nightclubs, and rental companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produces coherent 100° x 50° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a CMD horn-loaded 3” compression driver. The Constant Matching Design horn delivers accurate sound to the coverage area without tilting the cabinet. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown or pole-mounted. Pairing the speaker with a subwoofer delivers full-range power for medium-sized concerts and high-powered DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXW 44-A speaker is tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood enclosure is easy to carry and installed securely using dedicated rigging points.

Power that Moves

The most powerful amplifier in its class. RCF continues to make improvements in transducer design to make them stronger and more powerful. With 2100W of power, the new NXW 2-channel Class-D amplifier is 50% more powerful than previous models. The speaker manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. RCF amplifier modules are energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger to the rear of the cabinet, with no moving parts. The input circuit features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight.

Accurate Performance and Coverage

The advanced horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand. Intelligibility is then significantly increased in acoustically challenging environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.

Superior Transducers

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.

The extended clarity of the 3" compression driver features a neodymium magnet for improved current handling and weight reduction. The best-in-class titanium dome and the Polyimide/Kapton voice coil handle extreme power levels with very low distortion.

Three, high-power 10" low-frequency woofers with a new advanced transducer design gain more stability over higher currents, with less distortion, fast transient response, and better heat dissipation.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Product Specifications:

Frequency Response: 45 Hz – 20000 Hz

Max SPL@1m: 135 dB

Horizontal Coverage Angle: 100°

Vertical Coverage Angle: 50°

Compression Driver: 1 × 1.4" neo, 3.0" voice coil

Woofer: 3 × 10" neo, 2.5" voice coil

Input Signal: Balanced / Unbalanced

Input Connectors: Combo XLR / Jack

Output Connectors: XLR

Input Sensitivity: -2 dBu / +4 dBu

Crossover Frequencies: 800 Hz

Protections: Thermal, Excursion, RMS

Limiter: Soft Limiter

Controls: Linear / Boost / High-Pass presets, Volume

Total Power: 2100 W Peak

High Frequencies: 700 W Peak

Low Frequencies: 1400 W Peak

Cooling: Convection

Connections: Powercon TRUE1 TOP IN / OUT

Safety Agency: CE compliant

Cabinet/Case Material: Baltic birch plywood

Hardware: 8 × M8, 8 × Quick Lock

Handles: 2 side

Pole Mount/Cap: 35 mm insert

Grille: Steel

Color: Black

Product Weight: 31.55 kg / 69.56 lbs.

Product Dimensions  (LxWxH): 1080 × 297.5 × 373 mm / 42.52 × 11.71 × 14.69 in

Shipping Weight: 33.65 kg / 74.19 lbs.

Shipping Dimensions (LxWxH): 43.9" × 12.87" × 15.75"
