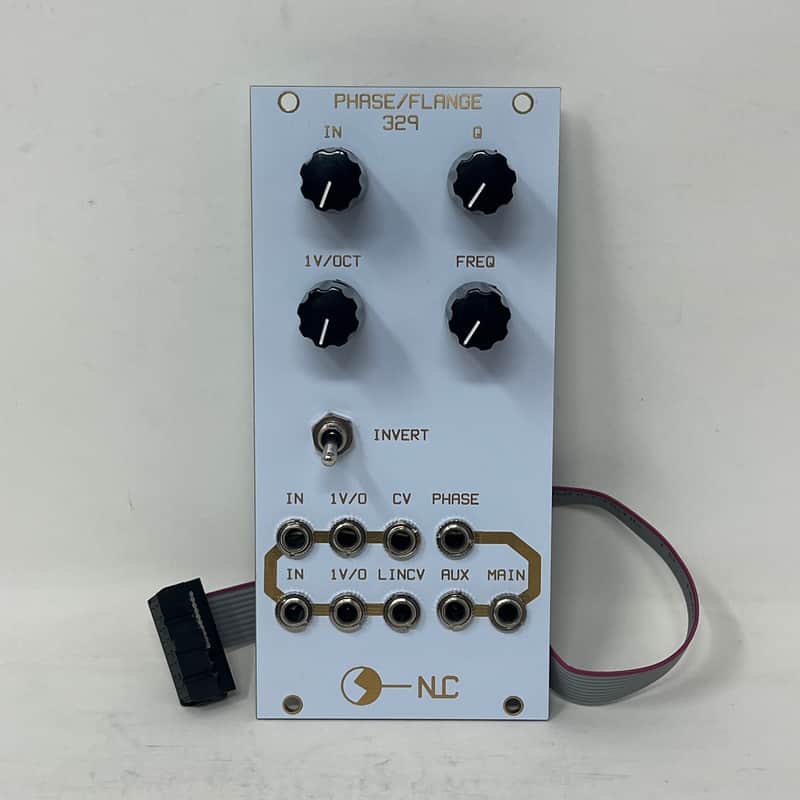

NLC Nonlinearcircuits - 329 Phase Flange [USED]
This seller has not set a shipping cost for Denmark. Please contact them to ask about shipping.
Our users rate Reverb
Used - Fully Tested - Excellent Condition
Assembled by professional builder, ships with ribbon cable
This module is based on the Aries 329 Phase/Flange. The main differences are in semiconductor component selection and it is all 0805 & SMD, otherwise it is pretty close to the original. The schematic for this module that can be easily found on the net has a component PD10, with 2 + terminals and 2 – terminals. Searching for this component shows a full wave bridge rectifier……hmm…. can’t be right, though reading various DIY forums shows few people were sure and there do not seem to be any online photos of the 329 PCB. It turns out PD10 was a resin block 10 stage phase shift network available in the late 70s. The Tau pipe phaser had two and the phaser in the Arp Quadra had one.
12hp
| Listed | a month ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
