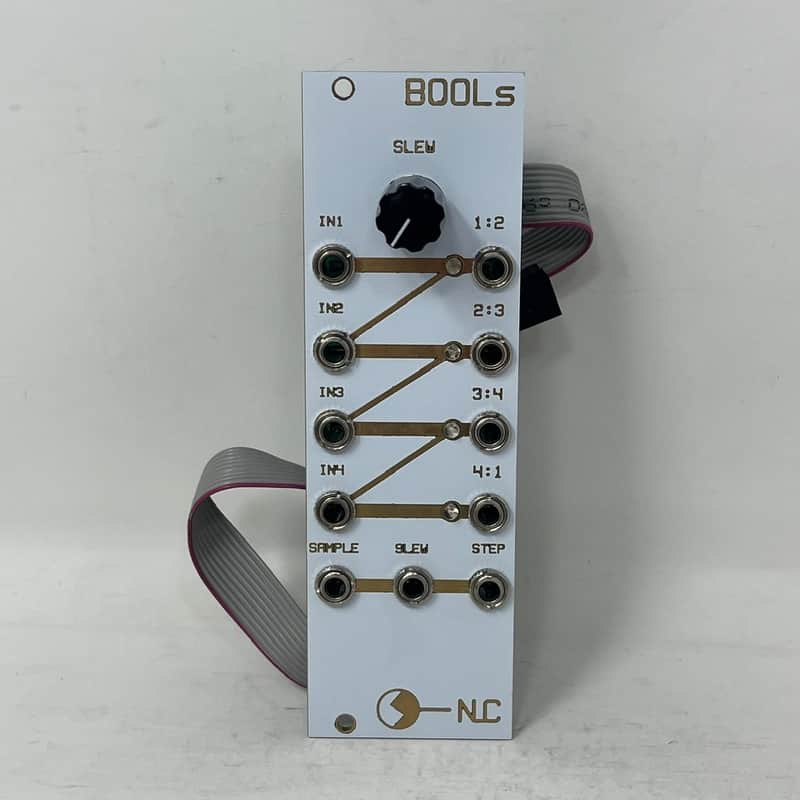

NLC Nonlinearcircuits - Bools [USED]
Our users rate Reverb
Used - Fully Tested - Excellent Condition
Assembled by professional builder, ships with ribbon cable
This module is like a hybrid between the NLC quad logic module and the Sauce of Unce. There are 4 inputs driving chained logic gates (you can choose what logic you want - OR, NOR, AND, NAND, XOR or XNOR by the chip installed). There are 4 gate outputs giving the boolean logic result of the signals on inputs 1&2, 2&3, 3&4 and 4&1. A resistor ladder network gives the stepped output based on what these 4 outputs are doing. From this a S&H circuit with a slew processor gives a smooth output.
8hp
Reverb Buyer Protection
Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.
| Listed | 2 months ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Categories |
