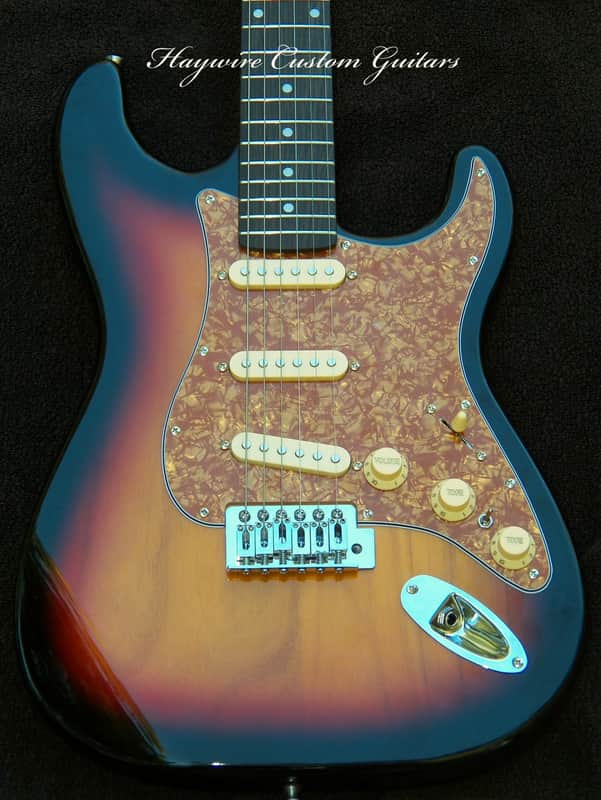

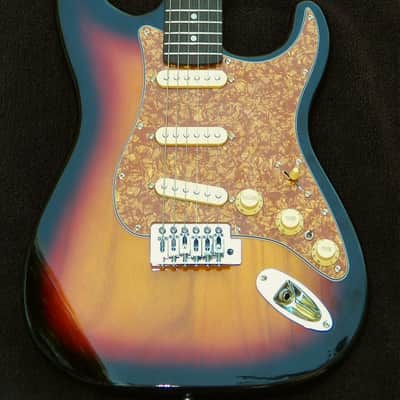

XX-Wide 2" Maple/Ebony Neck (51mm Nut Width) X-Light Weight 6 lb. Sunburst Ash Strat + Working Bridge Tone+ 7 Sound Switching +Treble Bleed+ SRV Pickups +Grover 406C Locking Tuners+ Leveled, Crowned & Polished Frets+ Full Low Action Setup!

A Real Players Guitar:

XX-Wide 2" Neck (51mm Nut Width) + X-Light Weight 6 lb.

Extra-Lightweight Guitar from: Haywire Custom Guitars Inc.

XX-Wide 2" Maple/Ebony Neck (51mm Nut Width) X-Light Weight 6 lb. Sunburst Ash Strat + Working Bridge Tone + 7 Sound Switching + Treble Bleed + SRV Pickups + Grover 406C Locking Tuners + Leveled, Crowned & Polished Frets+ Full Low Action Setup!

Haywire Custom Guitars Master-built X-lightweight 2" Wide Neck guitar. It's a very light guitar for musicians with long gigs requiring constant stage presence. This guitar will be a comfort because it's so light. Haywire Custom Guitars builds very light guitars for musicians. As a musician you need this guitar for long gigs requiring constant stage presence for hours. Haywire Custom Guitars super-light guitar, feather light, and X-Light guitars will be a comfort in that they are so super-light it will help eliminate back and shoulder pain. It makes it a pleasure for musicians to work all night on the job playing guitar pain-free.

We Ship World Wide!

 Oven Baked to a Golden Crisp (to lose moisture and weight) "Swamp Ash" body with 3 Noiseless Matched Hot Pickups + Tone Control on Bridge Pickup Plus 7 Sound Switch Added Between Tones Pots Recessed Heel Crest added Modified with-all new hardware.

• Tone Profile: Thick, warm, and creamy tone that resembles Vintage sounds
• Smooth Treble: Unlike many single-coil pickups, the treble response is smoother and less piercing, making it excellent for high-gain solos.
• Versatility: The pickup performs well in both neck and bridge positions, allowing for a mix of jazz-like tones in the neck or aggressive blues/rock tones in the bridge.

How the pickup combination works together:

Positional versatility:

Depending on which pickup or combination of pickups you select, you can quickly switch between a warmer neck tone, a bright middle tone, or a cutting bridge tone.

Blending options: When using the middle position with all pickups selected, you can blend the characteristics of each pickup, creating a unique, balanced sound.

Note: Our electronics are added free of charge, however if you have any specific electronic requirements, please ask. As a full service custom shop, we have every and any part you’ll need.

These pickups are great for fat clean tone or harder driving rock with more grind or Soulful Blues Neck and bridge will be equal, or bridge slightly hotter when playing single notes. SRV Neck and Bridge Pickups for Warmth with exceptional definition for any chord voicing and great presence for coming through a mix.

The Incredible Convenience of Locking Tuners

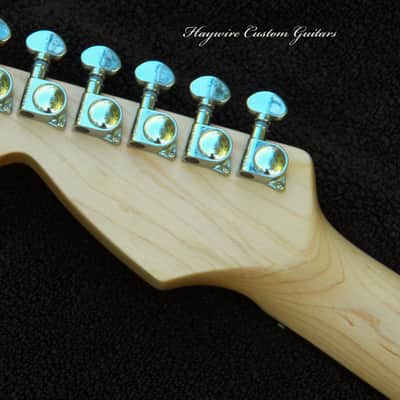

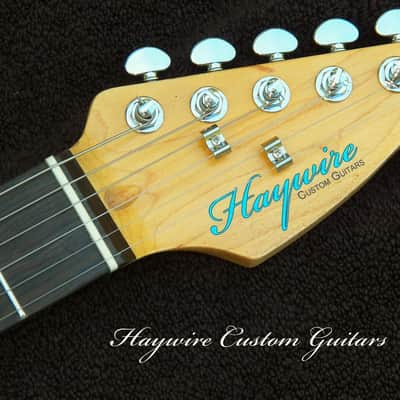

Grover Rotomatic 406C mini locking guitar tuning machine heads make quick work of tuning. With a gear ratio of 18:1, these locking tuners give you all the benefits of standard Rotomatics - plus the positive locking of Grover's internal cam post. Insert your string through the string hole, pull to tension by hand, and start to tune. As you begin tuning, only the locking cam in the string post turns. The string post begins to turn once the string is locked. In under one string post revolution, you'll be in tune. And you'll stay in tune, with Grover's Rotomatic 406C locking guitar tuning machines.

XX-Wide 2" Maple/Ebony Neck (51mm Nut Width) X-Light Weight 6 lb. Sunburst Ash Strat + Working Bridge Tone+ Sound Switching +Treble Bleed+ SRV Pickups +Grover 406C Locking Tuners+ Leveled, Crowned & Polished Frets+ Full Low Action Setup!

Get the right guitar for your hands and you'll be glad you did!

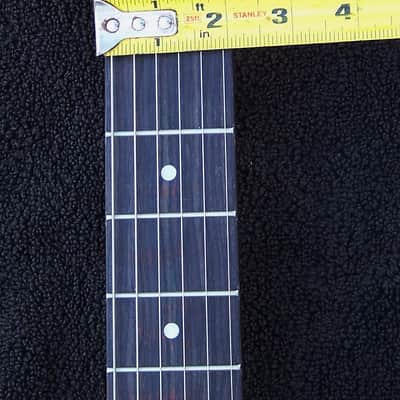

Custom Maple: 22 Frets with WIDE 2" nut width and 12" Radius.

The Benefits Of Wider Fret Boards Include: Better Action, Pull-offs, No Crowded Fingers !

The body wood is Swamp Ash with an Amber clear over the wood. Grain can be seen lightly through finish The string spread at the nut is approximately 1-7/8" and at the bridge it is 2". The scale length is a standard 25-1/2". Standard Chrome Strat bridge.

Wide Neck 2" description: w/Dual Action Steel Truss Rod for dialed in setups!

• Similar to: Modern Fender® American Standard Strat® or Tele®
• Thickness at 1st Fret: .800"
• Thickness at 12th Fret: .850"

This the most popular neck profile, very similar to modern Fender necks. Its medium "C" shape will feel comfortable to most players.

Wide Guitar Necks for Players with Large Hands!

Wide guitar necks are better for players with bigger hands or who want more Neck space in between each string to facilitate fretting notes more cleanly.  A wider nut offers more separation between the strings at the head stock end of the neck. The width of necks, and their shape as well, will suit certain players more than others. Often, it's a case of the size and shape you need, and also the kind of playing preferred.
Custom Standard Thin "C: profile Neck: .080 at the first fret and .085 at the 12th fret.

If you have a size 13 foot, you need a size 13 shoe. Stop any roadblocks to your success as a guitar player. Get the right equipment for you.

If you want to play great! Start with the right equipment for YOU:

This guitar was built and designed for bigger guys, who have bigger fingers. The wider 2" nut installed is much wider and meets the standards of larger players and finger pickers, who need and appreciate the “extra room” between the strings.

The benefits of the wider fret board include but are not limited to: better action, better pull-offs, no crowded fingers when chording, easier finger placement, clearer notes and more real estate on the top of the fret board for the guitarist to play. It is just a building technique to add comfort to playing a guitar that you cannot get from "off the rack" instruments in a music store.

"Light weight plus super low action and a wider nut width".

There are real benefits to a custom extra wide neck and a good luthier who understands what techniques to apply to an instrument so it will be easier to play.

• Neck profile: The neck is thin, straight and easy to wrap your hand around it to fret notes and form chords.
• Action: The height of the strings above the fret-board is very low. A smooth neck and well-placed frets
• String gauge: The gauge of the strings 10-42.
• Scale length: The length of the scale is 25-½”.
• Neck angle: The angle of the neck is perfect on all 4 axis.
• Weight: Light enough to be comfortable with great resonance and sustain.
• Body shape: The single cut-away has a comfortable body shape and a well-balanced weight.
• It feels "broken in" and comfortable right out of the box.
• The great tone will respond to the subtle nuances of your technique, allowing expression of musical ideas with clarity and precision.

X-Light Guitar with Special Custom XX-Large 2" Wide(51mm) Nut with Treble Bleed Circuit installed featuring New WIDE Neck and Bridge SRV Pickups. Body wood is Ash.

SRV Pickups

Our own proprietary SRV  ceramic pickups (Simulated Vintage Retro) provide excellent mid-range and punchy bass notes with noiseless clarity and a great signal to your amp. SRV’s deliver vintage tone, optimum output, balanced string response, and microphonic suppression. They’re specially voiced select custom guitar pickups that deliver masterful tone, overdrive, clarity, dynamics, transparency, versatility & a balanced tonal response.  These come standard with our guitars and loaded bodies at no extra charge. So, you get to try a free set of some of the best sounding pickups you’ll ever experience available only at Haywire Custom Guitars in a re-build or new build. They are brighter, punchier and more focused compared to other single coils. The top end is smooth, and bottom end a perfect match. Excellent on funk, disco, soul, and R&B tracks, these SRV single-coil pickups are ideal. You will love them for soloing. They have been used successfully by players for their power, tone, and clear gritty response on guitars for the last 25 years. Try them!

USA-Custom Shop 7 Sound switching Stratocaster: Note: The body underneath the pick guard is the part of the guitar that is routed. This body is routed for HSH configuration, and able to accept universal pickup choices and various pick guard styles with different cutouts. For example, if you want a S-S-H, or H-S-S, S-S-S, H-H and S-H configurations. The body rout already cut, will accommodate all of these configs. All that is necessary is to decide which pickup configuration, then add the pickups to a guard to accommodate the pickup selection YOU need. Then drop back into you guitar with 3 perfectly fitting pickup slots.

Translation:
You have two choices now missing on your stock Strat.
Here's what you'll get after we added the 7-Sound Toggle Switch between the Tone Controls: 7 Way Switching includes-3 Single Coil and 2 Humbucking Modes!

USA-Custom Shop 7 Sound Stratocaster Switch Translation:

NORMAL Position 1 of the 5-way selector switch activates the bridge pickup alone by engaging the toggle switch at this point it will activate the neck pickup giving you the bridge and neck pickups together.

Likewise, with the 5-way selector switch in the second position with the bridge and middle pickups activated, a flick of the toggle switch adds the neck pickup to the equation which gives you ALL of the pickups together. Two choices now missing on a stock Strat.
5-way switch pickup selections + Your 2 new selections when toggle is activated:
The quick Run-Down: Here's what you'll get after we added the 7 Sound Toggle Switch between the Tone Controls:
(Toggle ON for the first two selections as follows:)
Toggle ON Position 1-Will give you tones and sounds reminiscent of the "Byrds” Rickenbacker tone.

Toggle ON Position 2-Will make all three pickups available at one time.
(Toggle off for following normal switch controls as follows:)
position 1 Bridge pickup alone bridge + neck in parallel
position 2 bridge + middle pickup in parallel all three pickups in parallel
position 3 middle pickup alone
position 4 middle + neck pickup in parallel
position 5 neck pickup alone

Haywire Custom Guitars

"Building satisfied players one Haywire Custom guitar at a time!"

Great Tone and Sustain with lots of resonance

When the Treble Bleed Circuit is included:

Turning the volume control applies varying amounts of a specially tuned high frequency filter to the selected pickups. Now each pickup has the ability to produce a stronger, fuller tone and 50% less noise.

This variable treble bleed circuit is pre-installed. This variable treble bleed/bypass circuit corrects the problem of high frequency losses, provides auto-adjustment of tone at reduced volumes and improves audio taper between 3 and 10.

We hear you.

THIS GUITAR HAS A WORKING BRIDGE TONE CONTROL !

In MOST Fender Stratocaster guitars the tone control doesn't work for the bridge-only pickup on a Stratocaster.

It works on a few, approximately 1% of Stratocaster guitars whether made by Fender or by Squier, or Affinity, Fender Japan, Fender Taiwan, Fender Mexico, American (circa 1991) or Fender China and more have no tone control on the bridge pickup. The tone controls do work for the other four switch positions.

Why? It was just a design that was only meant to please the inventor, Mr. Leo Fender.

Leo Fender wanted a pickup position that sounded similar to a steel guitar. So now in Fender guitars the bridge pickup selection has no tone control wired to it whatsoever and no one at Fender Corp. since then has seemed to notice. They have failed to hear what guitarists for years have asked. Can we simply have a tone control on our bridge pickup? YES.

Recessed Heel Crest added

Improved hand access

Faster playing and more room on the neck

Easier and smoother note bending

Less stress on fingering hand

Cleaner, clearer notes

More responsive hand-tapping

Easier sweep arpeggios

Better trills and hammer-ons

Quicker pull-offs

Modified by Haywire Custom Shop with 7 way switching and 22 Fret Custom Neck

New from the Haywire Custom Guitars-Custom Shop

Haywire Custom Shop info, custom work, artwork, setup and Design by: Haywire Custom Guitars

 This guitar body has a very warm and crisp sound. It is built light and resonant for sustaining notes.
The  treble bleed circuit keeps it clear with a good strong signal all the way down. You can add extra bass with the tone controls.
The middle pickup is a RWRP which is wired like a humbucker in positions 2 and 4 on  the 5 way switch. Overall a great choice for many styles and genres. Because of it's very light weight, it is extremely and comfortable to play all night long.

Custom Shop Axes-without the Custom Shop Prices!

Haywire Guitar Custom Guitars-Home of the "Gig Ready" Guitar! This Haywire Guitar comes with one year warranty on our workmanship from Haywire Custom Guitars. Call or write with any questions you may have ask Rick: Haywire Custom Guitars

We Ship World Wide!

Instruments for Professionals

Pro sound with Vintage SRV Pickups and....Professional Setup for a working musician

Haywire Custom Shop

This light Custom Body with Vintage SRV Pickups is a dream to play all night long. It includes a.....Professional Setup for a working musician.

For Your Audiosyncrasies.........

Haywire Custom Guitar instruments feature a number of deluxe electronic configurations, from

guitars with distinctive switching and control options to powerful, tonally versatile pickup configurations by a variety of some of the best Pickup Makers in the U.S.A.

3 Single Coil and 2 Humbucking Modes!

The pick ups are specially made HOT  SRV's over-wound about 10% as follows:

For Pick-Ups the ohms are:

Special Strat Bridge Pickup:
DC Resistance: 8.10K - 8.23K

Special Strat RWRP Middle Pickup:
DC Resistance: 7.58K

Special Strat Neck Pickup:
DC Resistance:  7.70 K

 If you like Stevie Ray's Sound-You'll love these HOT Vintage Pick ups with vintage style magnets!
