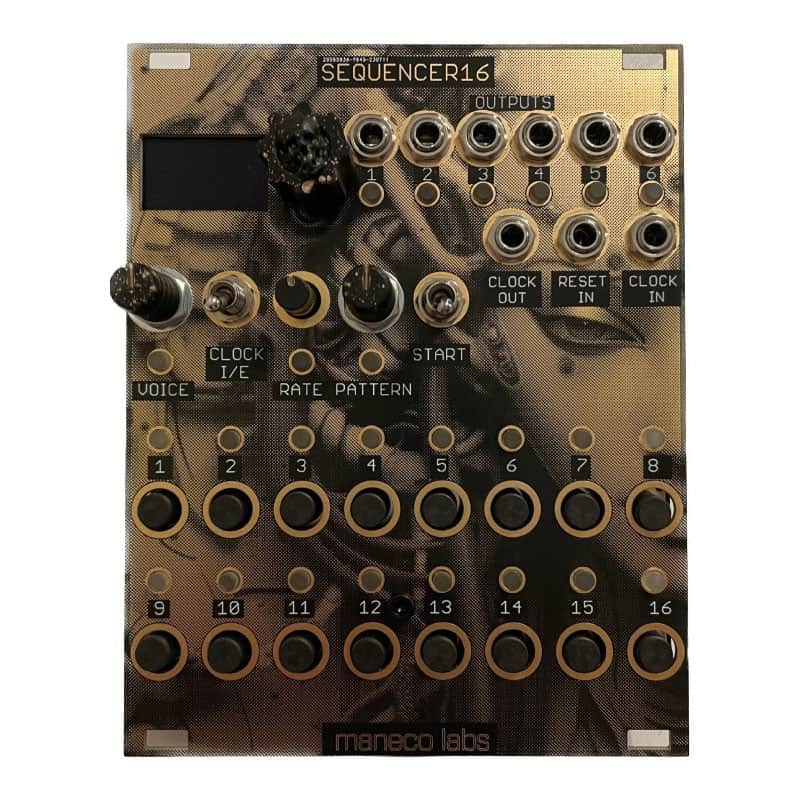

Maneco Sequencer 16 Eurorack Trigger Sequencer Module

Manufacturer's description

Sequencer16 is a six-channel trigger sequencer for Eurorack systems, with X0X like operation: intuitive, fun and visually appealing. Its simple operation allows for flowing live use and inspirational studio experimentation. The structure is based on six channels or 'voices', each with a descriptive colour identification, and four patterns also featuring a unique colour.

Controls

• Rotary encoder: related to display operations, especially save, which puts the four patterns' content in non-volatile memory. NB: the display is refreshed only in stop mode for more precise timing during playback.
• Voice potentiometer: selects which channel is controlled by the 16 push buttons in the X0X grid, identified by colour in LED and grid.
• Clock i/e toggle: selects internal clock source or external from sync input jack
• Rate potentiometer: internal clock generator speed.
• Pattern potentiometer: selects patterns 1 to 4 , with colour feedback for selected.
• Start: allows for playback either from internal or external clock source. Stop resets pattern to 1 position

Jack connectors

• Output 1 to 6: Voice channel trigger outputs
• Clock out: output for sync to other devices, either from internal clock or forwarding the external clock input set by int/ext toggle
• Reset in: a positive signal resets sequence to “1” position
• Clock in: external clock input for slaving to other devices.
