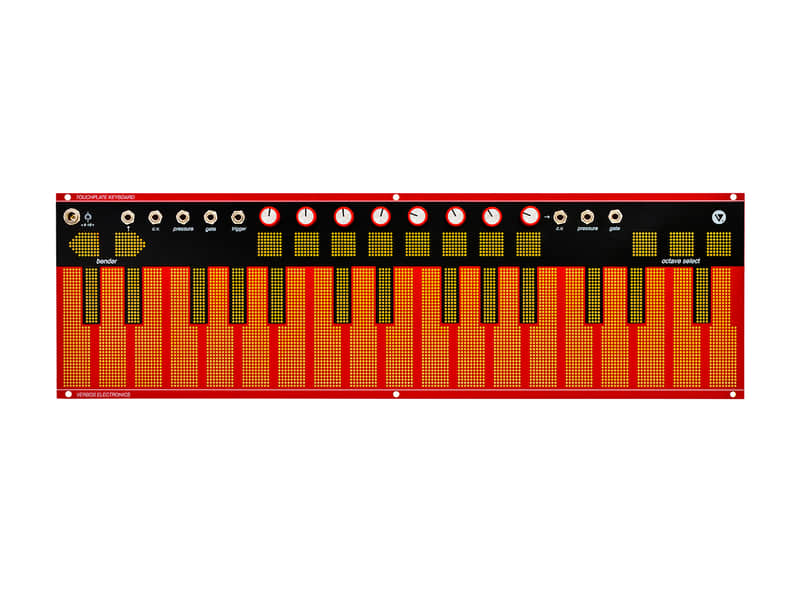

Verbos Electronics Touchplate Keyboard [DEMO]

The Verbos Electronics ‘Touchplate Keyboard’ is a gold plated controller Eurorack module with 3 independent sections for sending control voltage signals in the great tradition of West Coast synthesis. First is a 32 key volt/oct trimmed piano arrangement with 3 octave selects. It has an output for pitch CV, pressure (actually a measurement of the surface area of the finger touching the key), gate and 10ms trigger. Second is a pressure sensitive up/down bender that can be used to bend the VCO or anything that needs bending. Finally, an 8 key tunable keyboard with CV pressure and gate outputs. The Keyboard can be powered from normal Euro power or an external 9-15 volt positive tip DC supply, for use with un-powered skiffs.

Features

• Touchplate Keyboard Module for Eurorack
• 32 Key V/OCT Trimmed Piano Arrangement
• 3 Octave Select Touch Selectors
• 8 Tunable Note Touch Selectors with CV, Pressure and Gate outputs and Frequency Control per each Touch Selector
• Pressure Sensitive Up/Down Bender with CV Output
• Keyboard Outputs: CV, Pressure, Gate, Trigger
