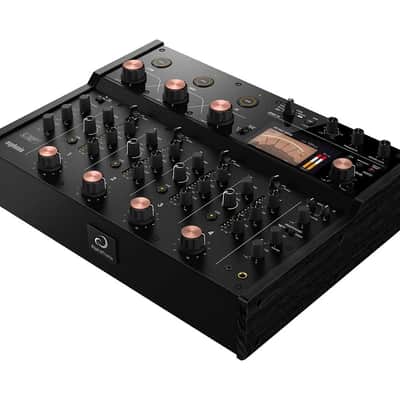

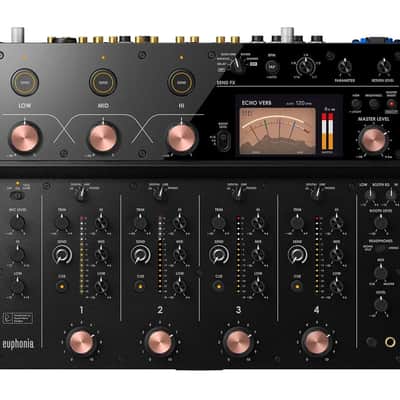

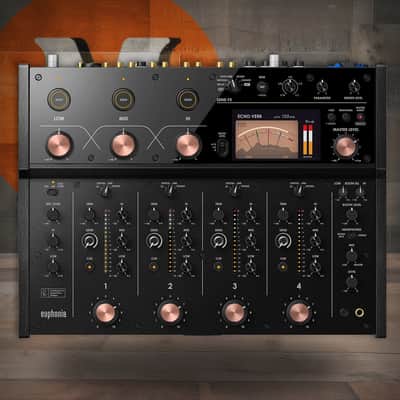

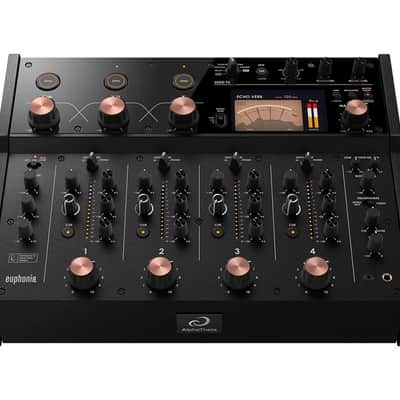

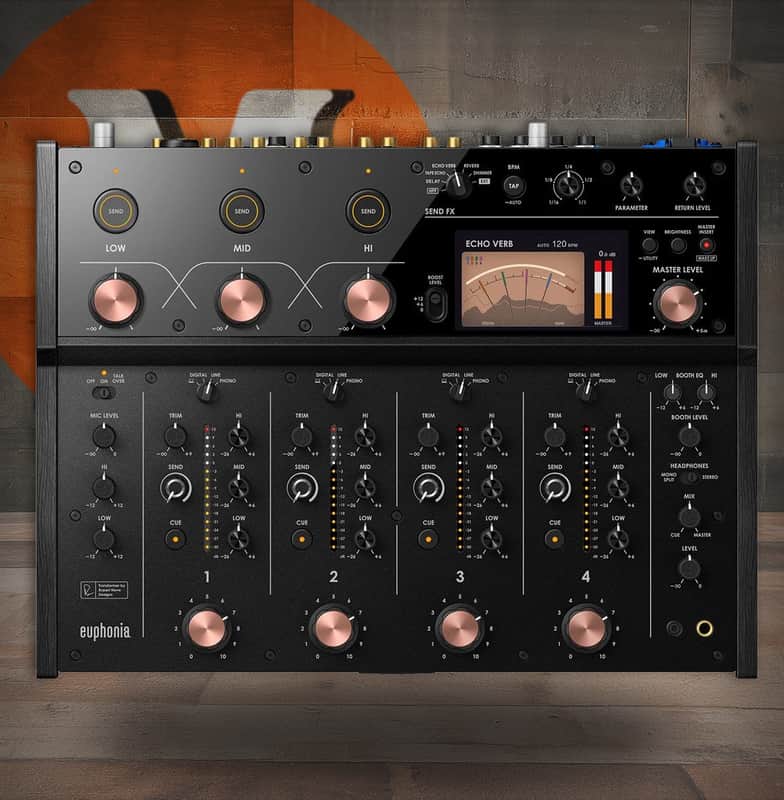

The euphonia produces a euphoric sound with the clarity of digital and the richness of analog that’s never been heard from a DJ mixer before.
To deliver a clearer sound quality that accurately reproduces the expression of the music, the euphonia uses high-quality 32-bit A/D and D/A converters as well as 96kHz/64bit floating point mixing processing operations in the DSP, utilizing the digital signal processing technology AlphaTheta has developed over many years.

Specifications Max. external dimensions (W × D × H) 429.2 × 331.0 × 119.9 mm / 16.90" × 13.03" x 4.72" Main unit weight 9.5 kg / 20.94 lbs. Frequency response 20 Hz ï¼ 40 kHz (LINE) S/N Ratio 107 dB (USB, DIGITAL IN)
88 dB (PHONO)
105 dB (LINE)
79 dB (MIC) Power requirements AC 110 V ï¼ 240 V, 50 Hz / 60 Hz Power consumption 43 W Accessories Power cord
Warranty (for some regions)
Quick start guide
Precautions for use Compatible software rekordbox
Serato DJ Pro Terminals Inputs DIGITAL IN × 4 (coaxial)
LINE × 4 (RCA)
PHONO × 4 (RCA)
MIC x 1 (XLR & 1/4" TRS jack) Outputs MASTER × 1 (XLR)
BOOTH × 1 (1/4" TRS jack)
REC × 1 (RCA)
PHONES × 2 (1/4" stereo phone jack, 3.5 mm stereo mini jack) USB USB Type-C × 1 Others SEND × 2 (1/4" TS jack)
RETURN × 2 (1/4" TS jack)
