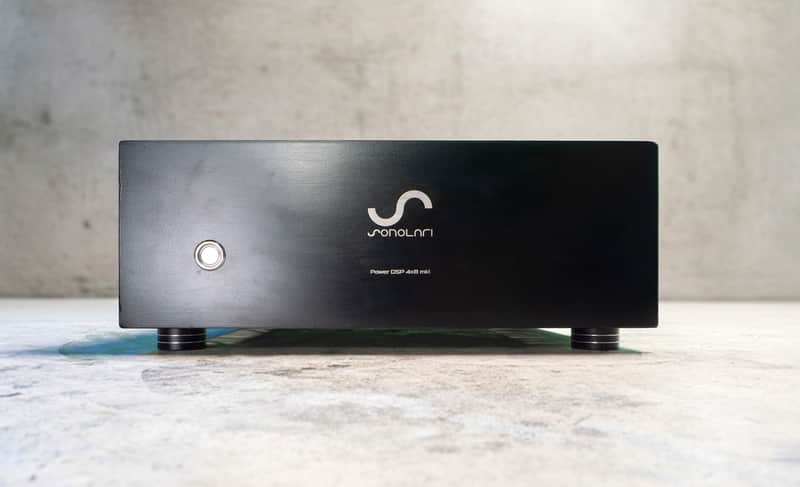

SONOLARI Power DSP 4x8-Channel FIR DSP Amplification Platform — ADAU1466 / ICEpower / 192kHz
Professional multi-channel DSP amplification platform designed for active loudspeaker systems, immersive audio environments, FIR processing, and custom installation applications.
Built around the Analog Devices ADAU1466 DSP architecture and ICEpower amplification modules, the SONOLARI Power DSP 4x8 combines high-resolution signal processing, flexible routing, and high-power multi-channel amplification in a compact integrated system.
The amplifier section uses four ICEpower 700AS2 modules, providing 8 amplified output channels with substantial output capability for demanding active loudspeaker and venue applications.
The integrated ADAU1466 DSP operates at 192kHz for ultra-low latency processing and high signal integrity.

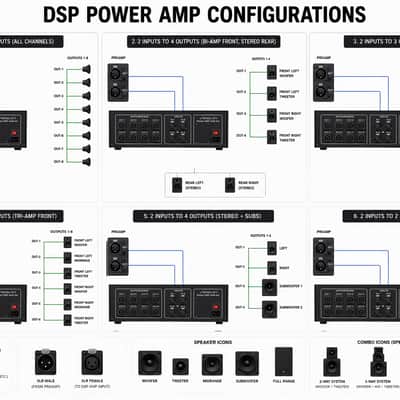

Supported DSP Configurations
- 2-in / 8-out
- 4-in / 8-out
- Multi-way active crossovers
- FIR processing
- Delay alignment
- Matrix routing
- Parametric equalization

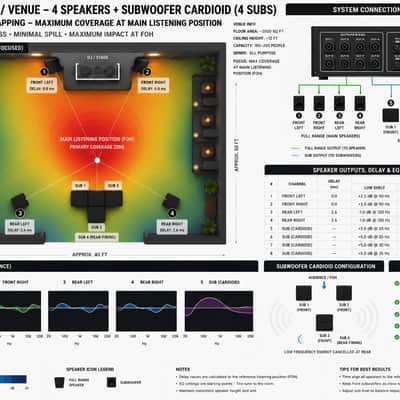

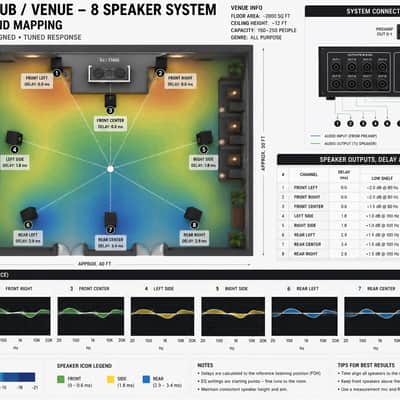

- Immersive / spatial audio configurations
- Cardioid subwoofer arrays

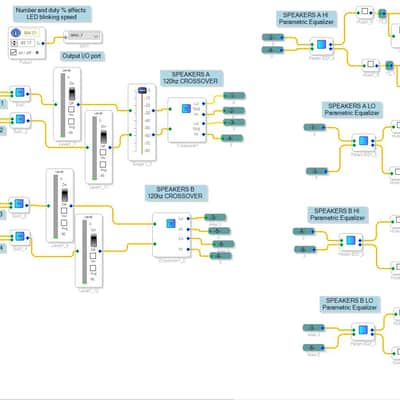

DSP configuration is handled through Analog Devices SigmaStudio, allowing advanced customization and rapid prototyping workflows. A ready-to-use base project/template for this hardware platform is included.
Originally developed as an R&D and system-tuning platform for SONOLARI loudspeaker development, the unit is equally suited for:
- Active speaker systems
- Venue processing
- Immersive audio installations
- Loudspeaker prototyping
- Custom DSP applications
- System integration
- Educational / research environments
Included With Sale
- On-site delivery and basic setup assistance anywhere in Southern California
- Delivery to adjacent states negotiable
- Remote troubleshooting/support for 2 weeks after delivery
- Base SigmaStudio project/template
Additional professional consulting is also available for:
- Multi-way loudspeaker design
- System optimization
- Venue tuning
- FIR implementation
- Sound mapping
- Immersive audio configuration
Technical Specifications
- DSP: Analog Devices ADAU1466
- DSP Sample Rate: 192kHz

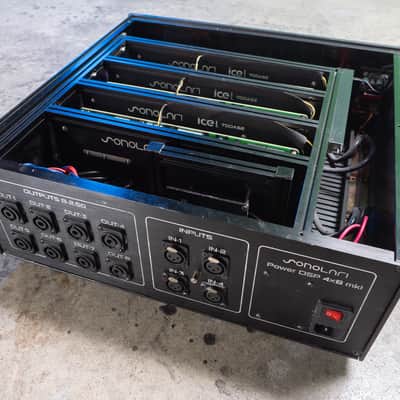

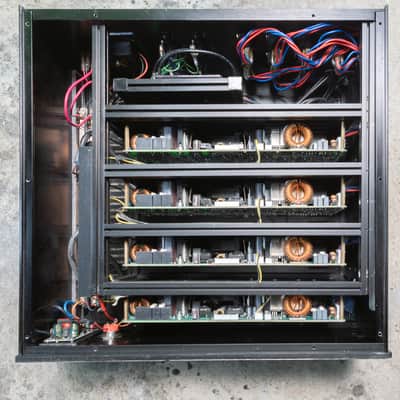

- Amplification: 4x ICEpower 700AS2 modules
- Channels: 8 amplified outputs
- FIR Support: Yes
- DSP Programming: SigmaStudio
- Routing: Fully configurable matrix

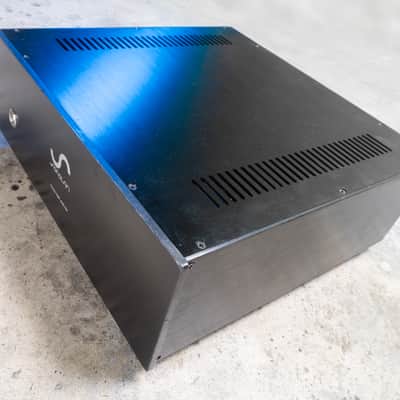

- Cooling: Passive
- Inputs: 4x balanced XLR
- Outputs: 8x Speakon speaker outputs
- Applications: Active crossover / FIR / immersive audio / venue processing
Dimensions
- Width: 43 cm (17 in)
- Height: 17 cm (6.7 in)
- Depth: 41 cm (16.1 in)
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | a month ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand |
|
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
