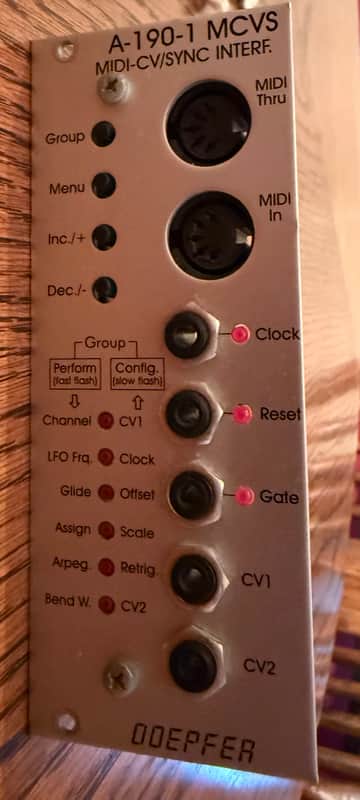

The A-190 is a MIDI-CV/SYNC Interface, with which

you can control any A-100 Module which has CV and

gate/trigger input sockets by MIDI.

The A-190 has two Digital-to-Analogue converters

(DAC for short), which put out control voltages from 0

V to +5 V, so that you can control not just the pitch, but

also another voltage-controllable parameter on the

A-100.

DAC 1 is ‘hard-wired’ to receive MIDI note messages

and convert them into control voltages available at CV

output socket CV 1. The DAC has 12-bit resolution,

which gives excellent tuning resolution (in steps of

1/4096th). As a rule, DAC 1 will be used to control

VCO pitch.

DAC 2 can be assigned to your choice of MIDI con-

troller. This DAC has 7-bit resolution (1/128th steps).

Its output is available at CV 2, and can be used for

voltage control of any suitable module (eg VCF, VCA,

etc.).

The A-190 also has a clock output, controlled by MIDI

clock. This can be divided down to provide a variety of

clock outputs, and enable older sequencers or drum

machines to be synced to MIDI.

A Reset Output provides control of the A-160 / 161

Clock Divider / Sequencer or can produce MIDI-

synchronised gates (for instance on an ADSR). MIDI

START or CONTINUE messages make the voltage at

the Reset output go low, and MIDI STOP messages

make it go high.

In addition, the A-190 allows for portamento (glide)

and pitch-bend, and provides a software LFO. These

functions can all be switched on and off or altered by

MIDI controllers.

All control parameters can be saved in non-volatile

memory.
