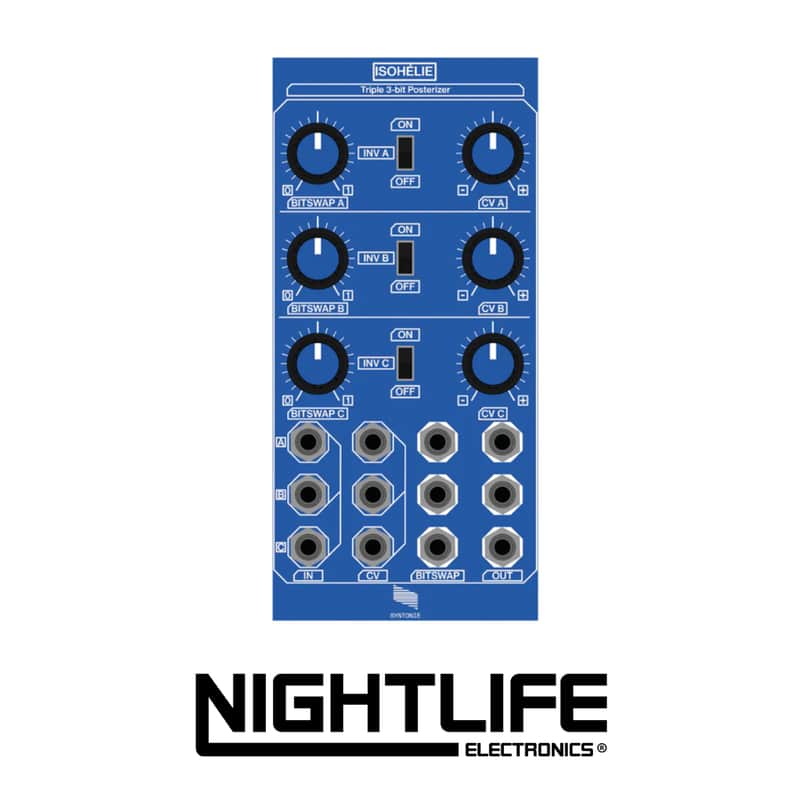

Syntonie Isohélie

Isohélie is a term used in french versions of graphic editing softwares to describe posterization, it is formed on ancient Greek "iso" meaning equal and "hêlios" meaning sun/light.

Each channel is based around a 3-bit ADC/DAC which will quantize the input signal into 8 equal steps, resulting in 8 different color shades. Processing a full RGB signal with the 3 channels will constrain it to 512 possible colors.

The bitswap features allows to swap the 3 bits together before they're summed by the R2R DAC, which result in a colorization effect and can be controlled up to video rate.

All 3 signal inputs and CV inputs are normalized together.

Powered through standard Eurorack connector or DC barrel.

• Inputs: 0-1V IN, 499 ohm / 0-1V CV, 499 ohm
• Outputs: 0-1V Bitswap, 499 ohm / 0-1V OUT, 499 ohm

• Width: 12HP
• Depth: 42mm
• Power: 230mA@ +12V / 0mA @ -12V
