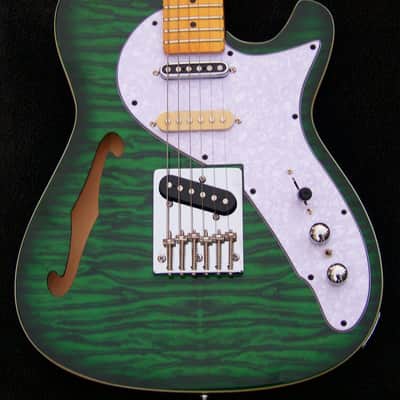

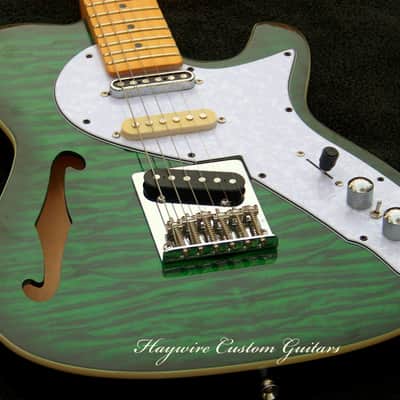

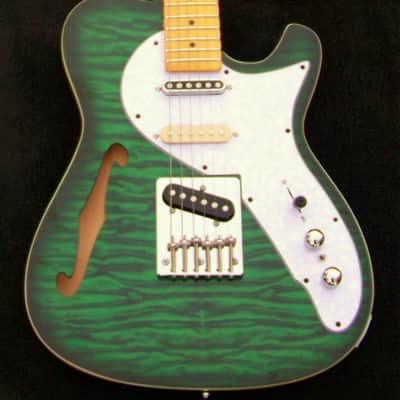

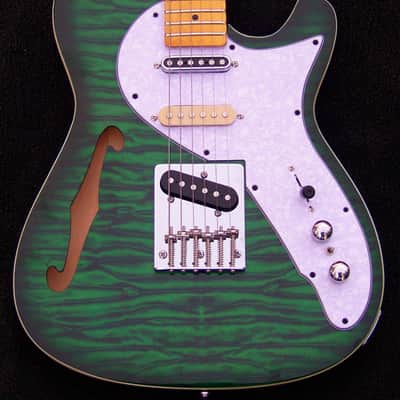

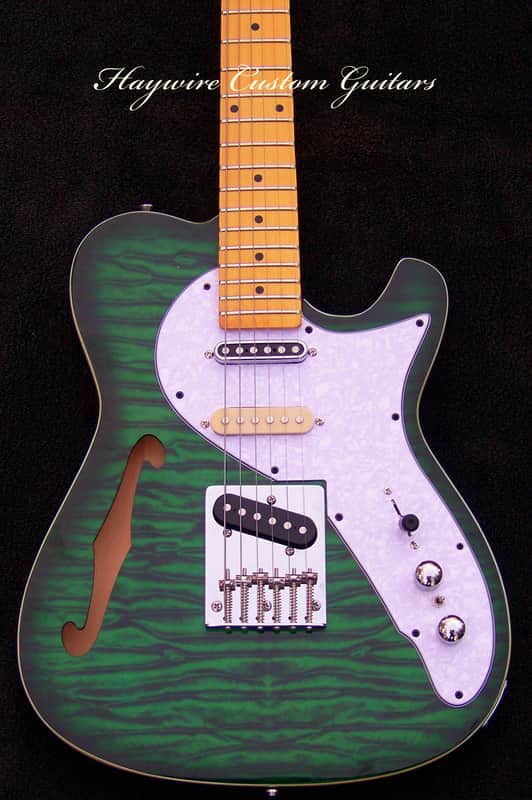

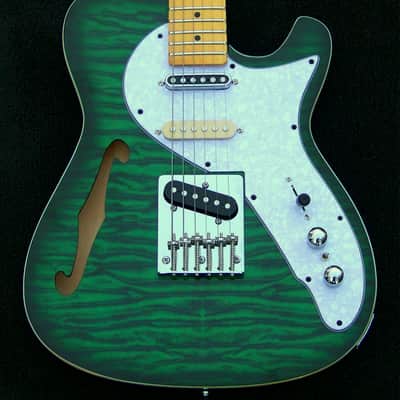

Nashville Thinline Telecaster-Tiger Stripe Green 7-Way Switching 22 Fret Maple Neck Leveled Crowned and Polished Frets+ Grover 406c6 Locking Tuners+ Full Setup!

From The Haywire Custom Shop in South Carolina:
Instruments for Professionals We Ship World Wide!

Nashville Thinline Telecaster-Tiger Stripe Green 7-Way Switching 22 Fret Maple Neck With Leveled Crowned and Polished Frets + 406c6 Mini Locking Tuners+ Full Setup with Treble Bleed Circuit plus more.

This guitar includes a Open Frame Tele Neck Pickup a Middle Strat Pickup and a RWRP standard Tele Bridge pickup AND the ability to get all 7 pickup combinations!

7 WAY Switching includes: 5-way switch pickup selections PLUS Your 2 new selections

One Of A Kind- 1970's Style Thinline Green Nashville Telecaster with a standard Thin neck.

This Guitar features:

1-Frets Leveled and Crowned perfectly and ends dressed for no sharp edges-NO BUZZ
2-Pearl Pick Guard
3-Treble Bleed Option Already Completed on this guitar body!

4-Action and intonation are dialed in perfectly

5-Strings are radiused to the neck for ease of playing

6-Solid input jack with very smooth operation

7-Satin finished neck back for less grab and smoother feel

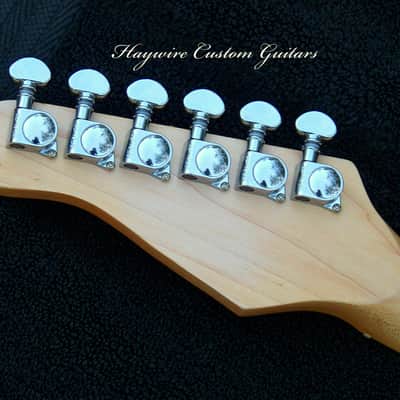

8- Hand-cut nut with proper depth in each string slot to aid your playing consistency and Grover 406c6 Mini Locking Rotomatic tuners

Excellent Condition!

Variable Treble Bleed Circuit included:
This mod keeps the tone you have on "10" throughout the entire range of the volume control.
We add a resistor capacitor network to the input and output of the volume control to
keep the highs from leaving your tone as the volume is decreased.
By adding this circuit, we can help you avoid the "muddy tone" syndrome.
Now your tone is much more controllable and articulate!

When the Treble Bleed Circuit is included:

Turning the volume control applies varying amounts of a specially tuned high frequency filter to the selected pickups. Now each pickup has the ability to produce a stronger, fuller tone and 50% less noise. On Humbuckers (either North or South or both coils can be filtered). This variable treble bleed circuit is pre-installed. This variable treble bleed/bypass circuit corrects the problem of high frequency losses, provides auto-adjustment of tone at reduced volumes and improves audio taper between 3 and 10.

PLUS
Pearl Pick Guard
with
6 Saddle String-through body bridge
featuring 3 great NEW pickups:

SRV Series Neck Pickup, middle and
SRV Bridge Pickup - NEW! It has a fat, rich bottom, with strong, clear mids
 New Electronics** Custom finished Telecaster with Professional Setup. The neck is in excellent condition with newly leveled and crowned frets. If you want great comfortable familiar feel, low action, good breakup and sustain from your pickups-then this is for you. A 12" radius guitar neck +  Haywire Custom Guitars offers this Deluxe Nashville Tele with SRV pickups, & 5 way Switching Sound and Treble Bleed guitar mods.

Special Telecaster Bridge Pickup:
DC Resistance: 8.10K - 8.23K

Special Strat Middle Pickup:
DC Resistance: 7.58K

Special Neck Pickup:
DC Resistance: 7.6K

 New from the Haywire Custom Guitars-Custom Shop

USA-Custom Shop 7 Sound Switch Translation:

Two choices now missing on a stock Nashville tele.

Quick Run-Down: Here's what you'll get after we added the 7 Sound Toggle Switch between the Tone Controls:

On this guitar you'll have two choices, now missing on your stock Nashville Telecaster.
Here's what you'll get after we added the 7 Sound Toggle Switch between the Tone Controls:

USA-Custom Shop 7 Sound Switch Translation:

NORMAL Position 1 of the 5-way selector switch activates the bridge pickup alone by engaging the toggle switch at this point it will activate the neck pickup giving you the bridge and neck pickups together.

Likewise, with the 5-way selector switch in the second position with the bridge and middle pickups activated, a flick of the toggle switch adds the neck pickup to the equation which gives you ALL of the pickups together. The two choices now missing on your stock 3 pickup guitar.

7 WAY Switching includes: 5-way switch pickup selections PLUS Your 2 new selections:
The quick Run-Down: Here's what you'll get after we added the 7 Sound Toggle Switch between the Volume and Tone Controls:
(Toggle ON for the first two selections as follows:)
Toggle ON Position 1-Will give you tones and sounds reminiscent of the "Byrds” Rickenbacker tone.

Toggle ON Position 2-Will make all three pickups available at one time.
(Toggle off for following normal switch controls as follows:)
position 1 Bridge pickup alone bridge + neck in parallel
position 2 bridge + middle pickup in parallel all three pickups in parallel
position 3 middle pickup alone
position 4 middle + neck pickup in parallel
position 5 neck pickup alone

It is a great gigging guitar. It is a keeper with GREAT features. If you want great sound, comfortable familiar feel, low action, good breakup and sustain from your pickups-then this is for you.
Haywire Custom Shop added the setup, and SRV pickups, the treble bleed circuit and
6 saddle bridge

For Your Audiosyncrasies.........

Haywire Custom Guitar instruments feature a number of deluxe electronic configurations, from guitars with distinctive switching and control options to powerful, tonally versatile pickup configurations by a variety of some of the best Pickup Makers in the U.S.A.

Neck Pickup is a slightly higher output pickup, fuller tone, with more drive for your amp. Fullest tone played clean of all our neck pickups. From the Haywire Custom Shop Included:

Treble Bleed Option and Full Setup Already Completed on this guitar body!

Listed, upgraded, customized and modified by:

Haywire Custom Guitars Inc. Instruments for Professionals Call or write with any questions you may have:
 Haywire Custom Guitars Haywire Guitar Custom Guitars-Home of the "Gig Ready" Guitar! This Haywire Guitar comes with one year warranty on our workmanship from Haywire Custom Guitars.

These pickups are great for fat clean tone or harder driving rock with more grind or Soulful Blues
Neck and bridge will be equal, or bridge slightly hotter when playing single notes.

SRV Neck Middle and Bridge Pickups for Warmth with exceptional definition for any chord voicing and great presence for coming through a mix

A Treble Bleed modification ADDED
It allows you allows you to roll off your volume without losing the highs. Would you like being able to use the volume control... without sacrificing tone? Now You Can.

With the Treble Bleed Circuit Mod added on this guitar, what does it do?

It prevents the treble frequencies from bleeding off. It allows the treble frequencies to be re-introduced into the output for clarity and improved timbre.

At Haywire we simply install a TB Circuit capacitor. We build them in our custom guitars for a better Low and High sound spectrum:

1-error-correction of signals with enhanced clarity

2- preserve high end frequencies

3-improved taper when rolling back your volume control

Hand-soldered here in our shop: between the input and output lugs of your guitar volume control pot, to smooth out treble bleed.

Get more uniform tone from 1 to 10, and a more rounded sound at low volume.

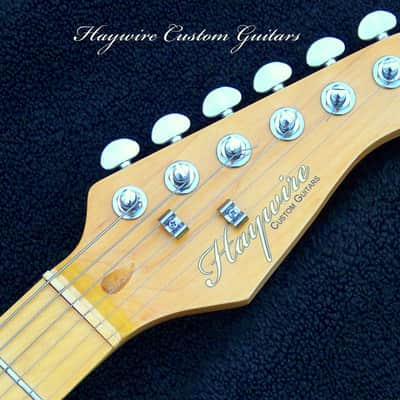

THE NECK
Maple Neck Custom Shop USA Hand Built beauty.
It has been fitted, the frets leveled, the neck aligned on all 4 axis, the frets were then
crowned and polished for a smooth broken in feel
Comfortable familiar feel, low action with a
hand cut nut added to a Thin "C" neck profile

This Guitar Neck Fingerboard Radius is 12"

The fingerboard, or playing surface of the guitar neck, is usually curved or radiused across its width. The purpose of this radius is to accommodate the natural ergonomic shape of your fingers when they are in playing position. Comfort is certainly a major factor in selecting a fingerboard radius, but it is not the only factor. Musical Style... the fingerboard radius must also allow you to play the style of music you prefer. On this guitar the STRINGS are also radiused to the neck curve.

 All controls and pots, switches are new with **NEW Hardware**. The SRV pickups are built for tone and longevity. They are slightly hotter than stock but wound more for better sustain and they are very quiet. For our European Players-These Pick Ups are RoHS Compliant. Included with even pole pieces for reliable tone.

(Haywire Custom Guitars offers custom guitars made to their customer's specifications. The guitars are made with upgraded components at a reasonable price. They also offer custom guitar neck replacements, installations and custom guitar neck contours.) "Building satisfied players one Haywire Custom guitar at a time!" Great Tone and Sustain with lots of resonance.

The Bridge and Saddles on this Guitar Body: 6 Saddle Bridge with Rear string through body loader Bridge
