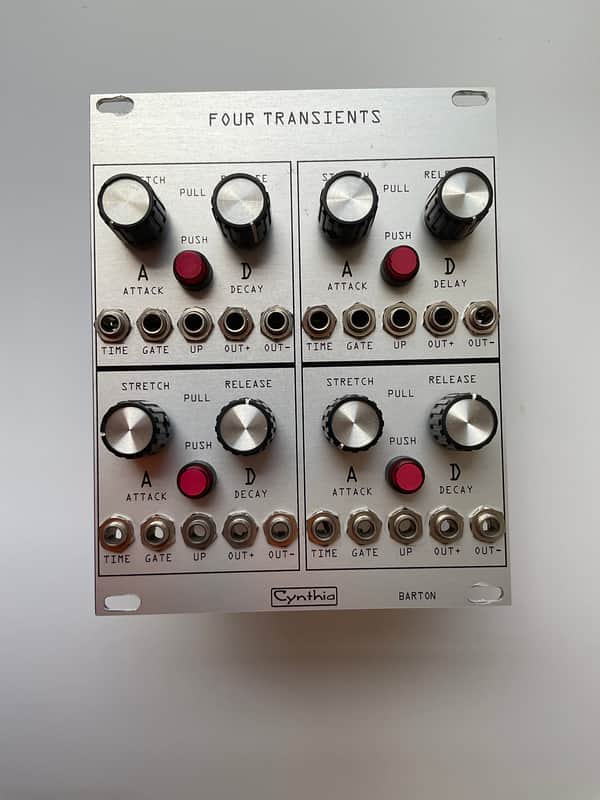

Cynthia Four Transients 4 x AD/AR Envelope Generator

Pristine Module, ready to be integrated into your Eurorack!

The Cynthia Four Transients is a versatile Eurorack module featuring four independent envelope generators that can function as either AD (Attack-Decay) or AR (Attack-Release)types.  Unlike conventional ADSR units, its AD mode is self-completing, meaning the envelope finishes its full cycle from 0V to +5V and back to 0V regardless of how long the gate signal lasts, making it ideal for automated or self-running patches.

Key capabilities include the ability to combine two sections to create ADSR, AHD, or gate delay behaviors, effectively allowing a single 2U module to generate two complex envelope shapes simultaneously.  The module also features audio-rate operation for creating transient pulses, CV-controlled timing via a TIME jack, and bright LED indicators that track the envelope shape and allow for manual triggering via push buttons.

• Dimensions: 2U height.
• Knob Functions: Pulling the Attack knob stretches times by ~100x, while pulling the Decayknob switches the section from AD to AR mode (where the knob then controls Release time).
• Inputs/Outputs: Includes GATE, TIME, OUT, and optional PULSE jacks for logic signals or sequencing.
