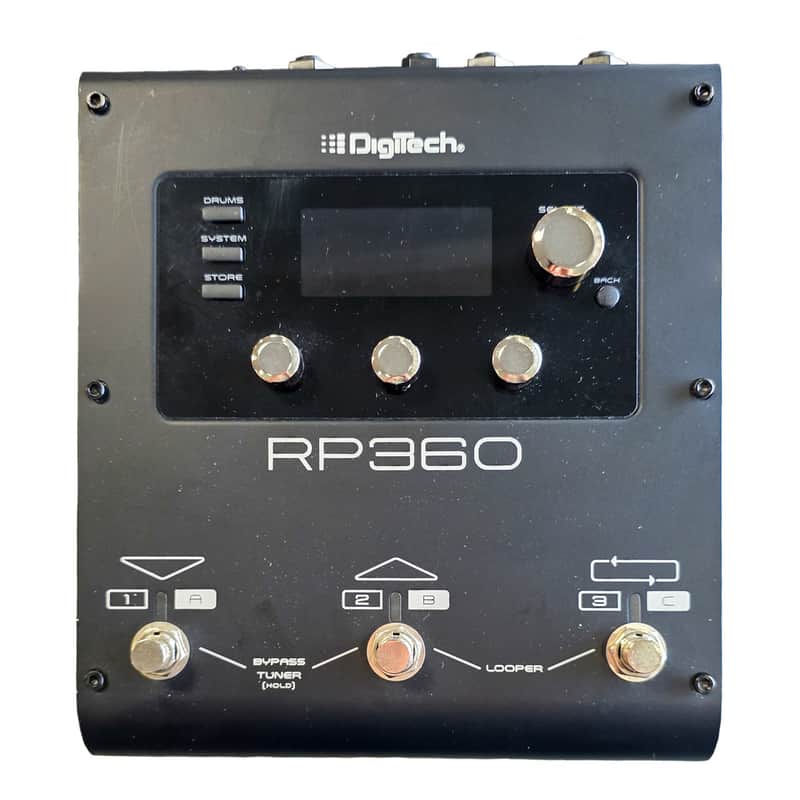

DIGITECH RP360 - GUITAR MULTI-EFFECT FLOOR PROCESSOR

GUITAR MULTI-EFFECT FLOOR PROCESSOR WITH USB STREAMING

85 stompbox pedals, 54 amplifier models, and 26 cabinet models

The tonal-creation sky is the limit!

Up to 10 effects can be used at a time and they can be placed in any order

Giving you complete control over shaping your tones and effects

99 factory presets

Familiarize yourself with all the effects the RP has to offer, and have starting points for creating your own sounds fast

99 user preset memory locations

Store all your favorite sounds for later recall

Built-in 40-second phrase looper

Write leads over your rhythm parts or enhance your live performanc

Sound Check feature

Record a loop and play it back through the internal effects chain, so you can easily audition and edit effects without having to constantly strum your guitar

1/8” headphone output

Practice whenever, wherever

RP360  SPECIFICATIONS General Specifications

A/D/A CONVERTER

24-bit high performance audio

SAMPLE RATE

44.1 kHz

DSP SECTION

AudioDNA2™ DSP Processor

SIMULTANEOUS EFFECTS

10

PRESET MEMORY

99 User Presets/99 Factory Presets

PHRASE LOOPER

40 seconds of record time

DRUM MACHINE

60 Patterns

USB

Type B, supports USB 1.1 Full Speed (12 Mbps Bandwidth USB 2.0 compatible)  Dimensions

LENGTH

7.5"

WIDTH

8.5"

HEIGHT

2"

UNIT WEIGHT

2.84 lbs.  Audio Output

LEFT/RIGHT OUTPUTS

1/4˝ Unbalanced

LEFT/RIGHT OUTPUT IMPEDANCE

500 Ohms per side

MAXIMUM OUTPUT

+8.5 dBu

HEADPHONE OUTPUT

1/8˝ Stereo (TRS) – 118 mW per channel @ 50 Ohms Optimized for use with headphones having an impedance of 60 Ohms or less  Audio Input

GUITAR INPUT

1/4˝ Unbalanced (TS)

INPUT IMPEDANCE

1 MOhm

MAXIMUM INPUT

+10 dBu

AUX INPUT

1/8˝ Stereo (TRS)
