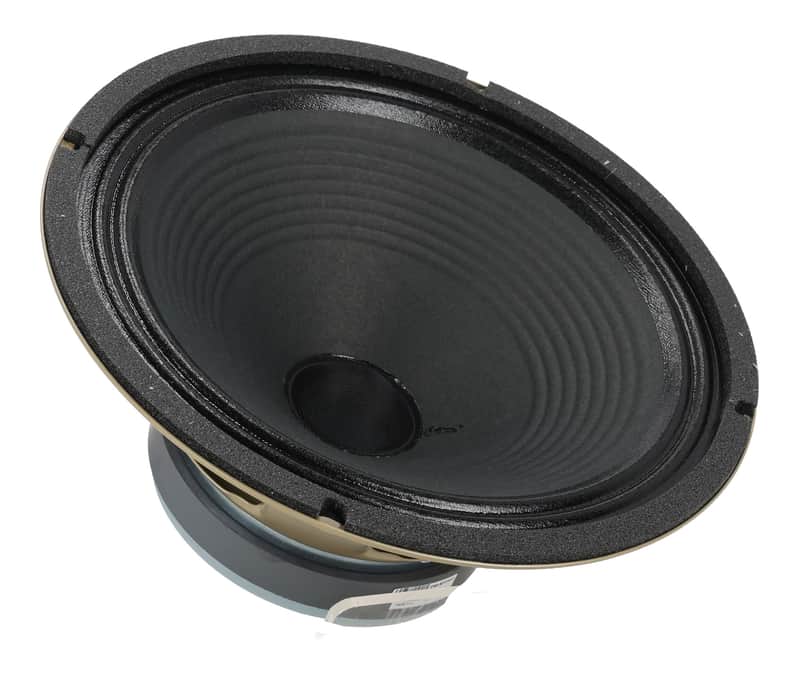

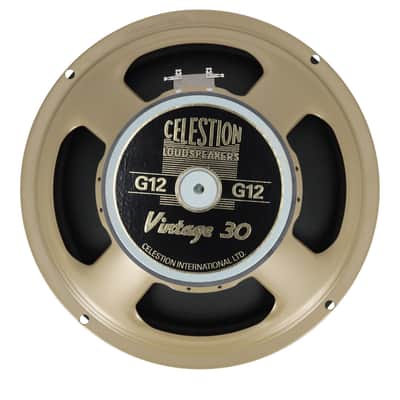

Celestion Vintage 30 8 ohm 60 Watt 12" Guitar Speaker w/ Ceramic Magnet

Description:

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly ‘hot-rodded’ amplifiers we set out to develop a modern guitar speaker capable of handling much more power and overdrive. To achieve this we coupled our ‘H’ magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.

Our most revealing speaker the Vintage 30 features enormously detailed and complex overtones a warm low-end a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps or in quartets for a wonderfully intricate vintage 3D crunch the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash Steve Stevens and Peter Frampton.

Specifications:

• Nominal diameter: 305mm / 12in
• Power rating: 60W
• Rated impedance: 8Ω or 16Ω
• Sensitivity: 100dB
• Chassis type: Pressed steel
• Magnet type: Ceramic
• Magnet weight: 1.42kg / 50oz
• Voice coil diameter: 1.75in / 44mm
• Voice coil material: Round copper
• Frequency range: 70-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 7.3Ω or 12.9Ω

Mounting Information:

• Cut-out diameter: 283mm / 11.1in
• Diameter: 309mm / 12.2in
• Magnet structure diameter: 156mm / 6.1in
• Mounting hole dimensions: 7.9mm / 0.31in Ø
• Mounting hole PCD: 297mm / 11.7in
• Number of mounting holes: 4
• Chassis depth (inc gasket): 97mm / 3.79in
• Magnet depth: 38mm / 1.51in
• Overall depth: 135mm / 5.3in
• Unit weight: 4.7kg / 10.4lb
