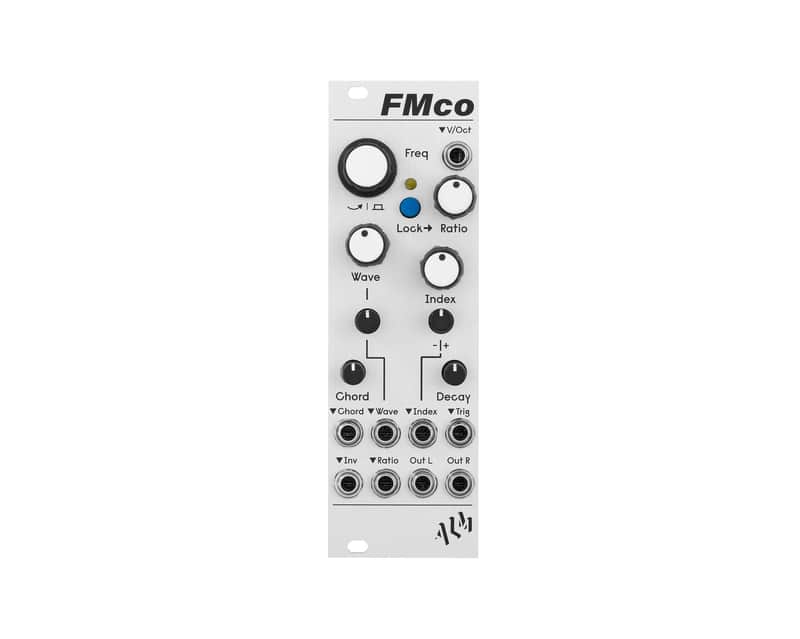

ALM Busy Circuits FMco Compact FM Synth Voice

The ALM FMco is a compact FM synthesis based VCO and voice. It features ALM's own original 2-operator FM synthesis DSP implementation inspired by the ‘Akemie’ modules but tuned for more immediate use and a more modern sound.
It includes both manual and voltage control over FM Index, Ratio and a selection of classic operator waveforms for a wide pallete of FM sounds from a simple set of controls. A built-in decay envelope is routed to both FM depth and output level, allowing the FMco to function as a full synth voice when triggered. The FMco also includes CV-controlled four-voice chords, an encoder-based tuning system for easy accurate pitch control, and a stereo-widened output, delivering a large amount of FM synthesis.

• 2 Operator FM synthesizer voice with direct and voltage controlled parameters.
• 8 Operator wave shapes with direct and CV control with attenuator.
• FM Index offset with direct and CV control with attenuverter.
• Ratio control with lock switch for both free and precise operator ratios.
• Trigger input for simple built in decay envelope internally connected to Index level and output VCA level.
• Easy, quick and accurate tuning via an encoder control.
• Direct and voltage controllable chord mode with inversion and up to 4 voices.
• Left and Right outputs with stereo widening effect.
• USB-C for quick and easy ‘drag and drop’ firmware updates.
• Skiff friendly with reverse power protection.
• 2 Year Warranty
