Frequency Central Tempograf Tap Tempo Clock Source & Divider Eurorack

Excellent condition. Switch caps missing - this doesn't affect function and can be replaced.

Supplied with power cable and screws.

Please check my listings for combined postage and deals.

Tap Tempo clock module with Start/Stop and division functions

DESCRIPTION

Tempograf is a small 4HP clocking module derived from our popular Chronograf module. It takes some of the key features of Chronograf and presents them in a small form, but strips out some of the more advanced features. The result is a handy little master clock module which can be used as a controller for our range of sequencing modules such as Polygraf, Little Melody and High Towers (as well as some forthcoming modules).

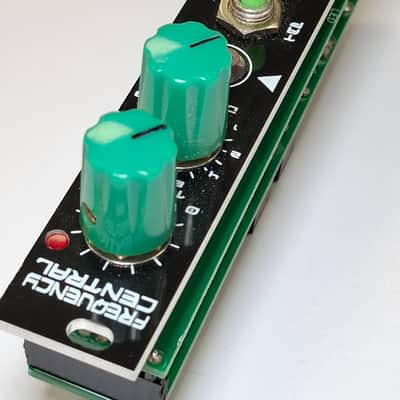

Tempograf can be started by using the Start button (indicated by a triangle), or by double tapping the Tap button, in which case Tempograf will run at the tempo of your taps. Tempgraf can be stopped by pressing the Stop button (indicated by a square). The Tempo knob sets the master tempo, which ca be over-ridden by the Tap feature.

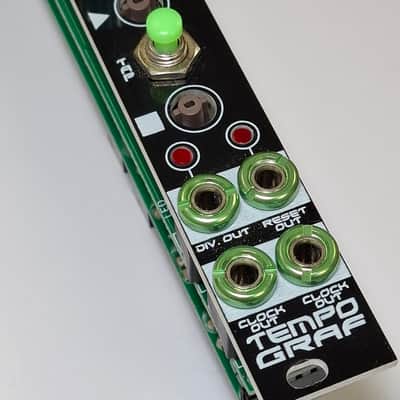

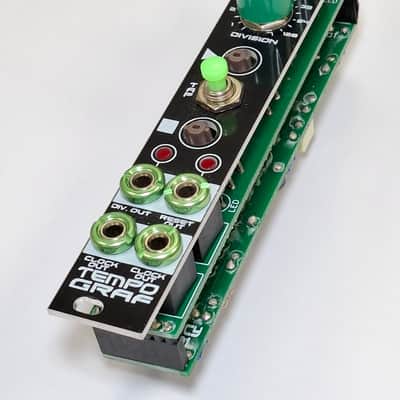

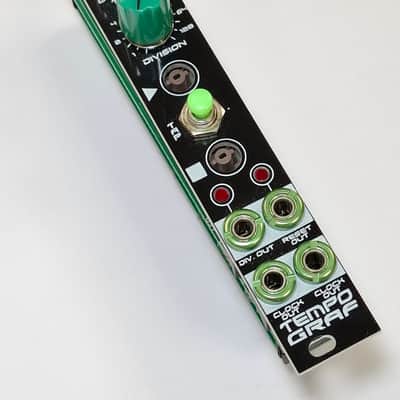

Tempograf has 2 identical Clock outputs, useful for spreading clocks to multiple destinations. Additionally, there is a Div. output, which sends out divisions of the master clock /1, /2, /4, /8, /16, /32, /64, /128, together with the associated Division knob. Div. out can also be used as a reset for devices which require reset on start, usually by setting the Division knob to /128. Tempograf’s Reset output sends out a reset pulse whenever Stop is pressed.
