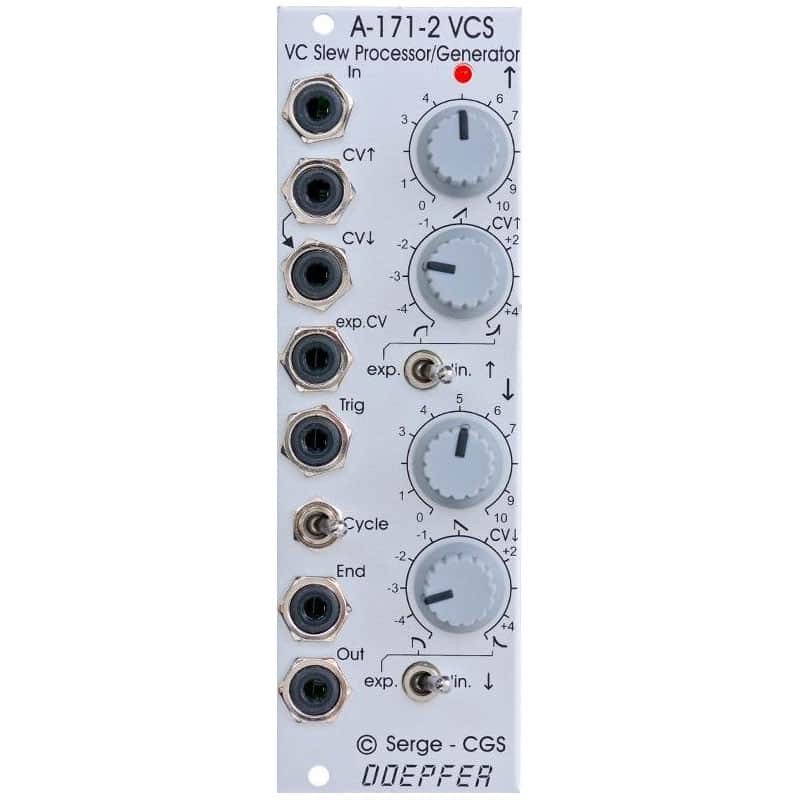

Doepfer A-171-2 VC Slew Processor/Generator

Doepfer A-171-2 VC Slew Processor/Generator

The Doepfer A-171-2 is a voltage controlled slew limiter with a lot of additional features beyond a simple slew limiter. It's primarily a licensed copy of Ken Stone's VCS which is in turn based on the Serge VCS.

Features:

• Manual control of the Slew-Up time
• CV control of the Slew-Up time with polarizer
• Switch for linear/exponential shape of the rising section of the response curve
• Manual control of the Slew-Down time
• CV control of the Slew-Down time with polarizer
• Switch for linear/exponential shape of the falling section of the response curve
• CV Up and CV Down sockets are normalled
• Signal input (the "to-be-slewed" signal)
• Trigger input
• V/Oct input
• End output
• Cycle on/off (when "on" the End output is internally connected to the Trigger Input)
• Output
• LED display
