CAPI Big Red - DI Box

CAPI Big Red DI Box - Direct injection box built around the custom USA made CAPI Big Red transformer, with two selectable ratio modes in a premium aluminum chassis and Neutrik connectors. How does it sound?..... HUGE and FAT ! Ideal for bass !! Use this to add a DI input to your CAPI VP26, VP312, VP28, or FaQ31 Mic Pre.... or any other mic pre.

IN STOCK! Built & Ready to Ship:  The quantity of the units available for this listing are fully built, burned-in, and ready to ship. This is not a pre-order or special order listing. Place an order and it ships in a couple days.

Specifications:

- Two Ratio Modes: 31.5:1 = 1M ohms, 10:1 = 100k ohms

- USA Made Transformer

- Neutrik Connectors

- Dimensions: 4.3" x 5.2" x 2.5"

- Custom Aluminum Clamshell Enclosure

Jeff the Creator @ CAPI sez...

The ZCON-Big Red-DI XFMR Direct Inject is a very simple but useful impedance matching device. Direct Inject boxes are used for converting high-impedance instrument signals to low-impedance microphone signals.

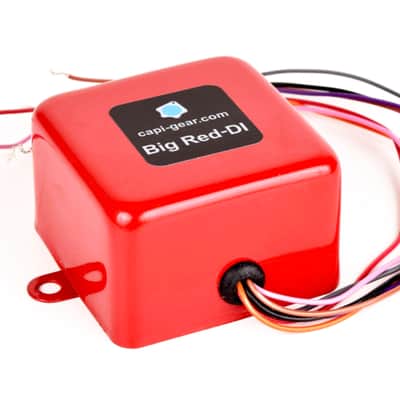

The heart of the ZCON-Big Red-DI XFMR Direct Inject is a Made In The USA custom transformer that we rightfully call Big Red. During the time when our winder was having trouble sourcing laminations for our OG CA-11 DI transformer, he somehow had a fresh idea for a new design pop into his head. He told me it might be bad, it might be OK or it might rule. He sent me one to try and might I say, RULE it does! Simply put, the audio definition of phat is Big Red.

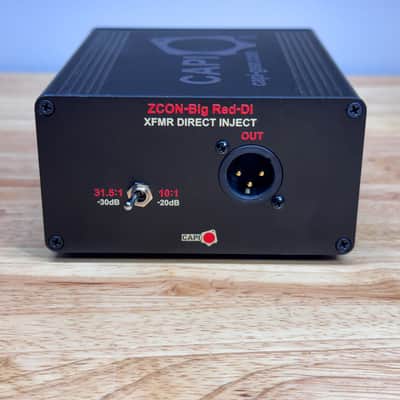

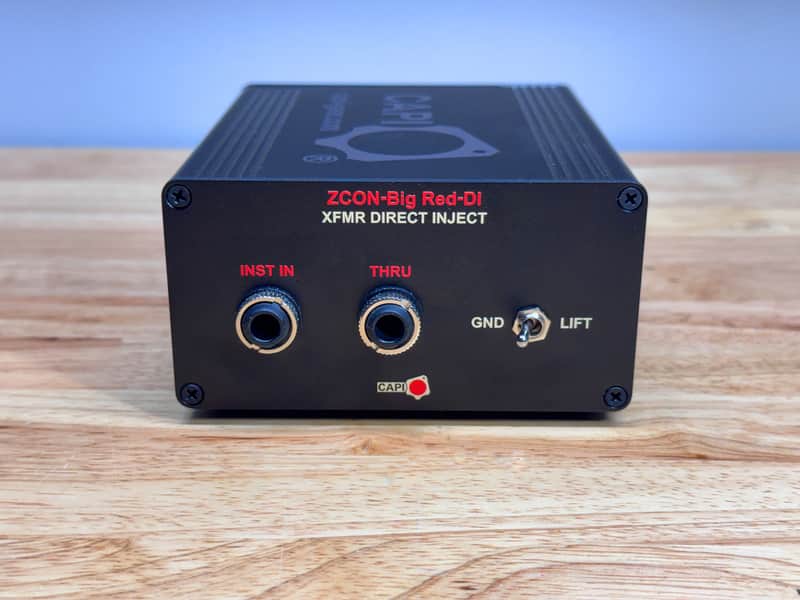

The ZCON-Big Red-DI XFMR Direct Inject has standard features such is an instrument thru jack and ground lift. We have a somewhat unique feature which is toggling between two different secondary transformer ratios. A lot of juicy tone can be found in these two settings.

Product Photos:  All photos of the product are original photos taken in-house of units built at Process Haus.

Warranty:  Parts and labor are covered for one year for component level failure due to normal operational use.

We build these for you as if we are building for ourselves... tight and clean soldering with Kester solder and a digital temperature controlled Weller, fully cleaned PCB, and burned-in and tested.

Shipping: Flat rate shipping is for UPS Ground and fully insured.
