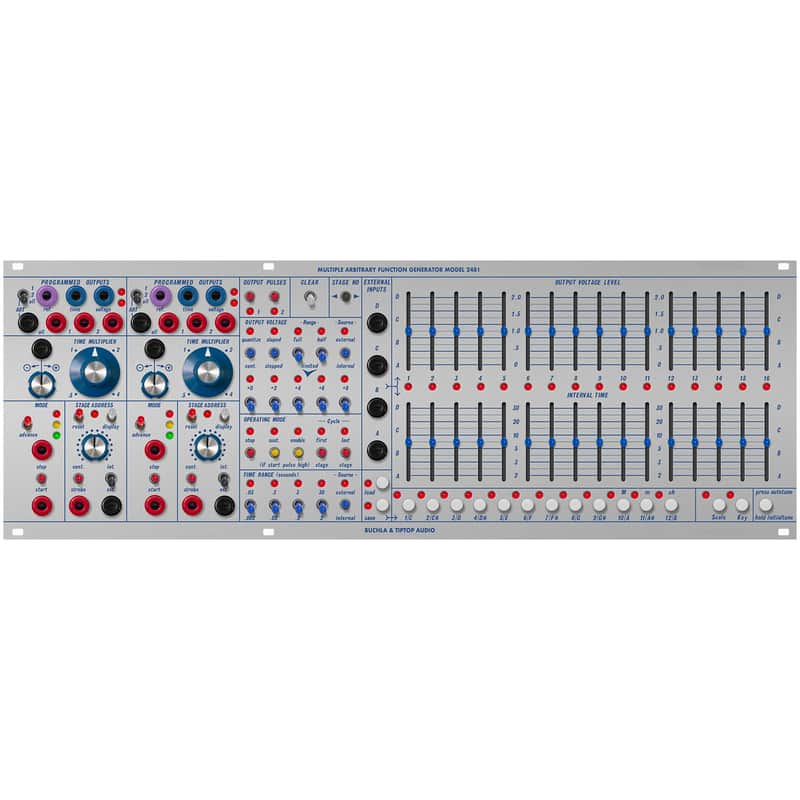

TipTop Audio 248t MARF Multiple Arbitrary Function Generator Module

TipTop Audio 248t MARF Multiple Arbitrary Function Generator Module

The Tiptop Audio 248t MARF brings the legendary 1970s MARF voltage generator to the Eurorack series. The 248t MARF (Multiple Arbitrary Function Generator) is a flexible control voltage source that features a number of improvements making it perfect for modern modular synthesizer rigs. The 248t MARF features 16 stages of programmable control voltages from which you can generate asynchronous outputs with custom time scales and phase relationships.

The Model 248t combines and exceeds the capabilities of sequencers, envelope generators and LFOs and goes beyond these limitations to provide unlimited voltage output and unprecedented dynamic musical control. With 16 addressable memory locations, you can create any asynchronous outputs with custom time scales and phase relationships as desired. It's not a sequencer and not an envelope generator - it's both at the same time, with a level of control and programmability unimaginable in other analog systems. Unlike many more conventional approaches to this concept, it can function as both a voltage processor and a generator. The 248t module has been usefully extended with scales and a handful of memory locations.

TIPTOP AUDIO 248T MARF FEATURES:

• Recreation of the MARF for Eurorack modular format
• Sequencer, envelope, clock generator and more in one unit

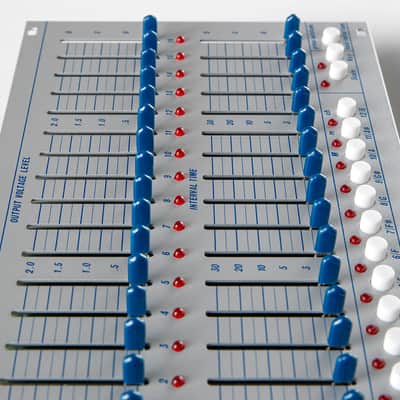

• 16 dedicated output voltages with sliders
• 16 interval time sliders
• Time segment range from 1 ms to 120 seconds
• Maximum of 16 time segments
• Signal generation and (via inputs) signal processing
• Segment-by-segment voltage control of times and output voltage (e.g. for applications such as independent voltage control of attack and decay times)
• 2 time multiplier controls (.5 - 4x) with voltage control
• 2 ranges of programmed outputs
• 4 external inputs
• Continuous, quantized, sloped and stepped outputs
• Range offset
• Stage address functionality with voltage control
• start/stop logic (via switches or patched pulses/triggers)
• Programmed output controls in any pattern
• 12 presets
• Tone scales
