Buchla & Tiptop Audio Multiple Arbitrary Function Generator Model 248t MARF w/Stackcables (BPNYC)

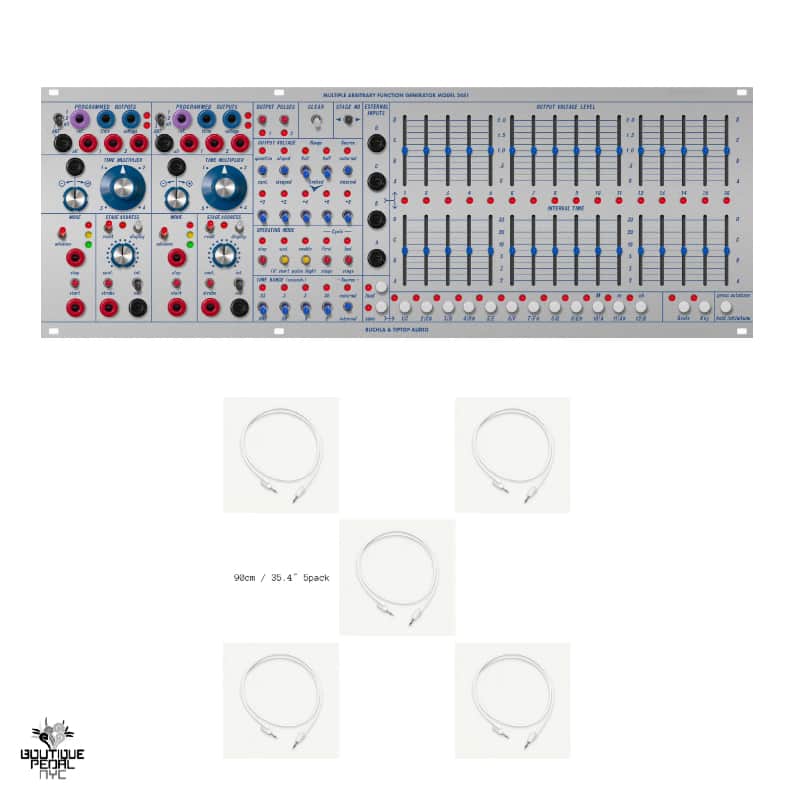

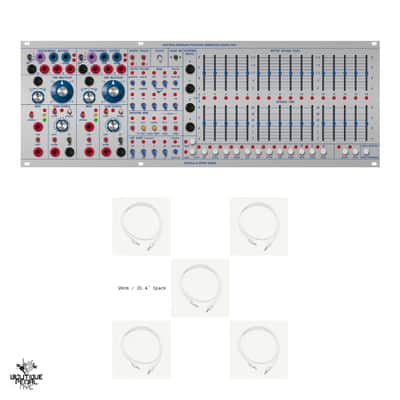

(with FREE 90cm StackCables 5 pack!)

Multiple Arbitrary Function Generator Model 248t

Key Features :

• 16-Stage Versatility: Each stage is fully programmable, allowing for varied time intervals, voltage ranges, and slopes.
• Dual Outputs & Subgrouping: Offers two independent output sections that can read different parts of the 16-stage sequence simultaneously. Stages can be grouped into sub-loops.
• Time Multiplier: Features a dedicated knob and CV input to scale timing values from 1 ms to 120 seconds.
• ART Protocol Support: Includes a dedicated output for Tiptop’s ART protocol, allowing for improved pitch control and integration with modules like the 259t.
• Modern Enhancements: Includes nonvolatile memory for storing and recalling presets.
• Control Options: Features pulse inputs for Start and Stop commands.

Because of its deep programmability, the 248t can function as:

• Multi-Stage Envelope Generator: Create complex, non-linear 16-stage shapes.
• Step Sequencer: Traditional voltage stepping with per-step timing control.
• Voltage Processor: Manipulates external signals through four dedicated external inputs.
• Portamento Pitch Processor: Acts as a sophisticated glide generator between voltages.

Technical Specifications

Width: 72HP

Stages: 16 programmable stages

Timing Range: 1ms to 120 seconds per stage

Time Multiplier: 0.5x to 4x (manual or CV controlled)

Inputs/Outputs: 4 external CV inputs; 2 independent CV/Pulse output sections; ART output
