NLC Nonlinear Circuits BOOLs

NLC BOOLs

• 8 hp, White Panel

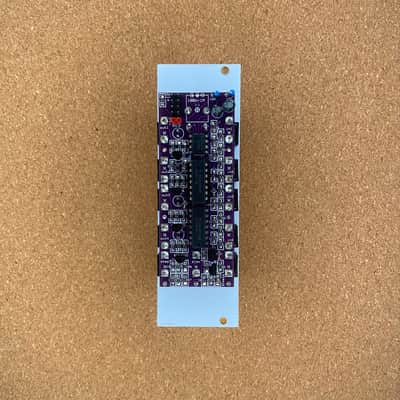

• Logic IC Socketed: OR installed, comes with bonus AND for you to swap
• Fresh build, tested, and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)

Further information from nonlinearcircuits:

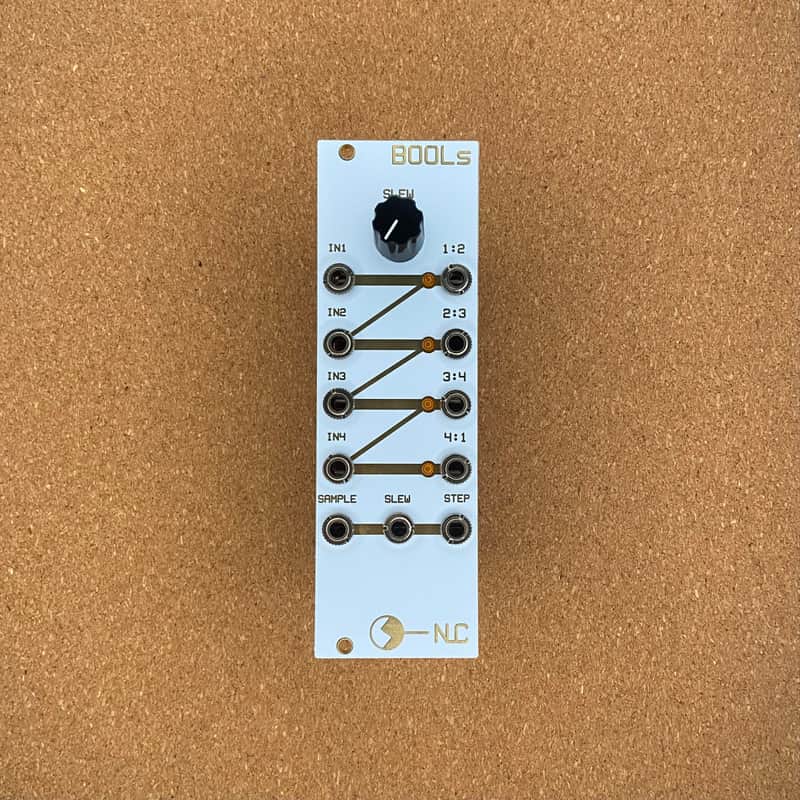

This module is like a hybrid between the NLC quad logic module and the Sauce of Unce. There are 4 inputs driving chained logic gates (you can choose what logic you want - OR, NOR, AND, NAND, XOR or XNOR by the chip installed). There are 4 gate outputs giving the boolean logic result of the signals on inputs 1&2, 2&3, 3&4 and 4&1. A resistor ladder network gives the stepped output based on what these 4 outputs are doing. From this a S&H circuit with a slew processor gives a smooth output.
