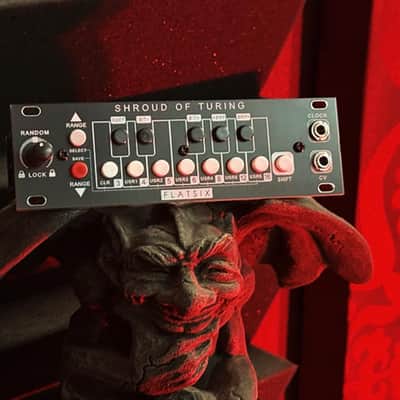

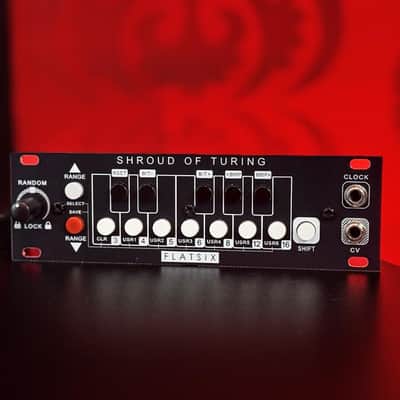

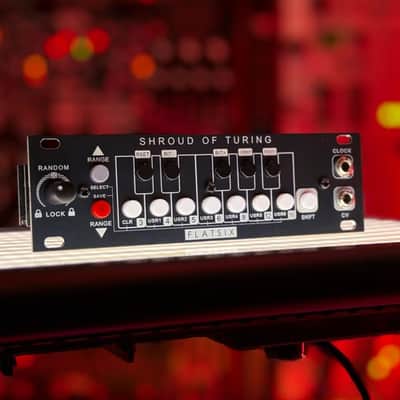

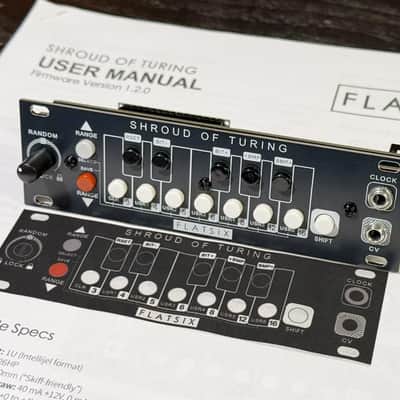

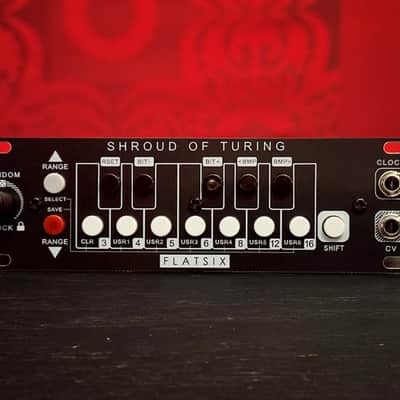

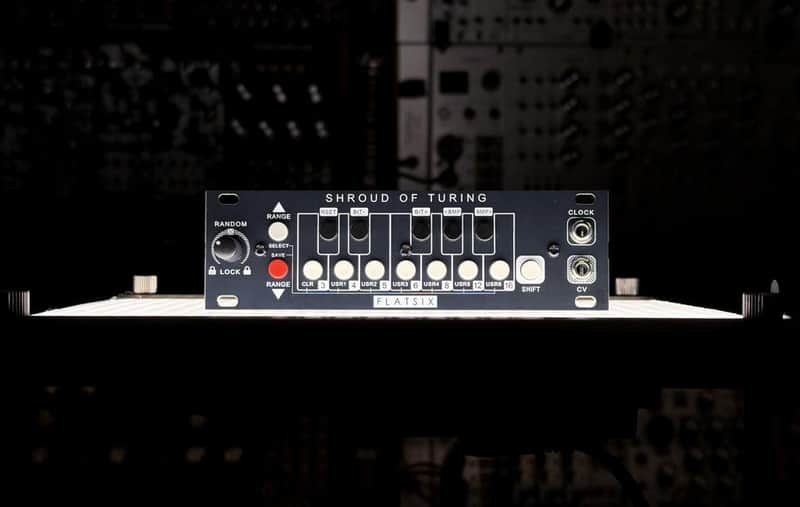

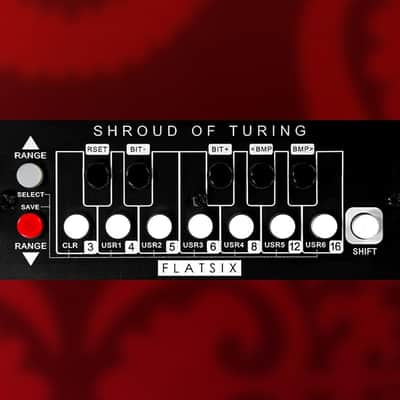

FlatSix Modular Shroud Of Turing (Black) - 1U shift register, quantizing sequencer inspired by the Turing Machine

16-Bit Shift Register Sequencer with Musical Quantization and Machine-State Save/Recall

The Shroud of Turing is a performance-focused shift register sequencer inspired by the Turing Machine, reimagined with musical intelligence. At its heart is a 16-bit shift register that generates evolving pseudo-random CV sequences — turn the probability knob to sweep between locked, repeating patterns and ever-changing generative melodies, or find the sweet spot in between where sequences gradually mutate over time.

What sets the Shroud of Turing apart is its built-in keyboard, and musical quantizer. Use the onboard keyboard to define custom scales, and the sequencer's output snaps to musically meaningful notes — no external quantizer needed. Build scales from any combination of notes, save up to six scales to memory, and recall them instantly during a performance. Leave quantization off for raw, unquantized voltage, or engage it to bring harmonic structure to generative sequences.

Once you've found a pattern you love, the recently updated firmware (v1.2.7) gives you more ways than ever to lock it in and perform with it. Add portamento by holding Shift and dialing the pot — anywhere from instant note-to-note jumps to long, sweeping glides. Nudge the sequence forward or backward with pattern rotation until it lands on the downbeat you want. Shift your entire voltage output window up or down in one-volt steps — hold Shift and tap the octave buttons to walk the same pattern through different registers without touching your scale or range size. Use loop reset to snap to step one on command, or sculpt patterns by hand with the clear and set bit functions.

And when you find a setup that's truly working for you — the right pattern, the right scale, the right range, the right glide — save the whole thing to one of five machine-state slots. Everything gets captured: your 16-bit pattern, loop length, rotation, voltage range, active scale, and portamento setting. Recall it instantly, even after a power cycle. With five independent slots, you can keep a completely different configuration for every song, key, or mood.

Whether you're looking for a source of happy accidents, a tool for controlled generative composition, or a compact sequencer that speaks in scales, the Shroud of Turing bridges the gap between chaos and musicality.

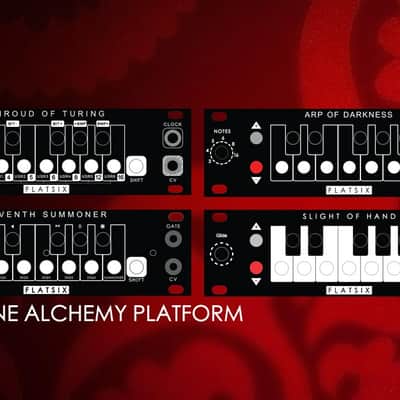

This module is a part of the Nocturne Alchemy Platform - a flexible eurorack module series that shares the same robust Arduino-based hardware, allowing one to effortlessly swap firmware and functionalities through an intuitive web loader. By purchasing one module, you gain access to a full range of freely available firmwares, including the other current creations, Slight of Hand and Arp Of Darkness, and Seventh Summoner, as well as more planned for future release! It's like getting multiple modules for the price of just one!

Specs

• 1U (Intellijel format) 26HP Module
• 40mm skiff-friendly depth
• Current Draw: 40 mA +12V, 0 mA -12V, 0 mA 5V

Features

• 16-bit shift register sequencer with analog-style probability control — fully random at noon, locked and looping at full clockwise, locked at double length fully counter-clockwise
• Built-in musical quantizer with onboard keyboard for defining custom scales in real time
• Six scale memory slots — save and recall your favorite scales on the fly
• NEW! (v1.2.7) 5 full state save/recall slots — snapshot the complete module state (pattern, scale, rotation, range, window, slew) to any black key and restore it instantly
• Pattern rotation — nudge sequences forward or backward to find the perfect downbeat or create instant variations
• NEW! (v1.2.7) Voltage window shift
• Variable loop length — 3, 4, 5, 6, 8, 12, or 16 steps
• Adjustable output range — 1 to 4 octave spread
• Manual bit editing — clear or set individual bits to sculpt patterns by hand
• NEW! (v1.2.7) Slew/portamento
• Loop reset — reset to step one on command for tight synchronization
• Precision calibrated CV output (0–4V) with gate output
• External clock input — integrates seamlessly into any clocked patch
• Bootable 'Slight Of Hand' Mode - transforms the module into a simple CV keyboard
• Open Source Arduino Nano-based Firmware - See the GitHub Page
• Calibration mode with tuning for each note across 4 octaves (Comes pre-calibrated)
