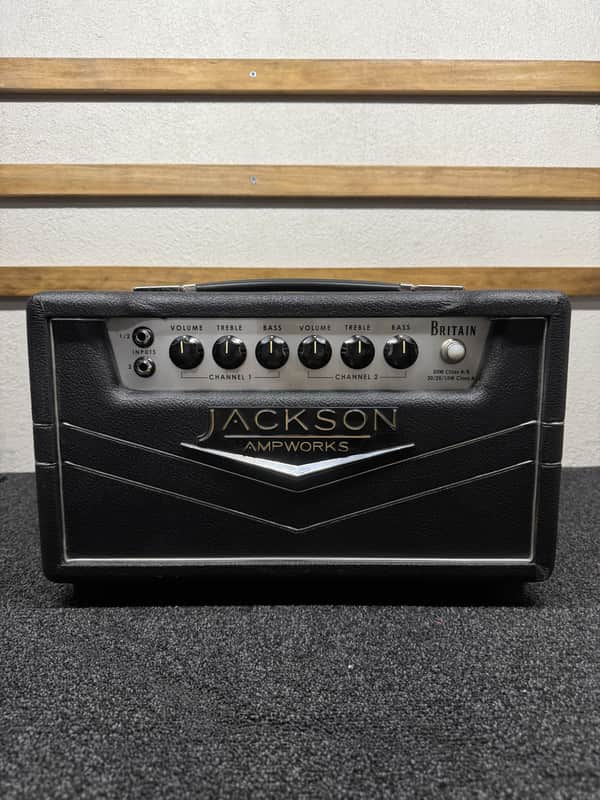

Jackson Ampworks Britain 4.0 2016 - Black

An absolute beauty of an amp with great chimey cleans and amazing overdrive tones. The amp is built like a tank and in stellar condition, and has been looked-over by Brady at Jackson Audio with no flaws whatsoever.

FROM JACKSON AMPWORKS👇

The Jackson Ampworks Britain 4.0 is the smallest, most flexible and portable British style guitar amplifier ever made. With four distinct power settings and two blendable channels, the Britain 4.0 offers more tone and more value than any amp ever made.

If you are looking for one amp that will cover all the classic British guitar tones of the last 50 years along with a host of new tones never before available then the Britain 4.0 is your amp.

SMALL SIZE, HUGE TONE, TREMENDOUS VALUE

Jackson Ampworks, the creator of “The Britain” amplifier, has just released The Britain 4.0.

With careful consideration of the feedback from users of the original Britain and the Britain 2.0, Jackson Ampworks has totally redesigned the amp to become the most pristine, versatile, and compact boutique amp on the market today. The new Britain 4.0 is 18 pounds lighter than its original predecessor, 8” more narrow and 3 times more powerful! In addition to these changes they added a second channel to the amplifier, a unique footswitch-able boost circuit for the Britain’s now legendary EF86 channel, series effects loops for each channel, and selectable 15/25/30W Class A or 50W Class A/B operation that features 2 different sets of output tubes for unmatched versatility.

TWO CHANNELS - INFINITE TONES

The Britain 4.0 features two totally separate channels, each with its own set of dedicated tone controls. While two channel amps have been available for any years, the magic of the Britain lies in its ability to blend those two channels together to create an infinite number of tonal options.

Channel 1 is the exact same EF86 based preamp that was featured in the original Britain but has been updated with Jackson Ampworks own footswitch-able boost circuit that true bypasses the Treble and Bass controls resulting in a substantial boost in volume, gain and tonal purity. Channel 1, being the higher gain of the two, is considered the dirty channel of the amp and offers a very broad frequency response that works to deliver your instruments true voice with minimal coloring or artifacts.

Channel 2 of the Britain 4.0 is a 12AX7 based “Top-Boost” preamp that balances perfectly against Channel 1 by providing pristine clean tones incredible headroom and articulation. This channel, which was designed to remain clean longer than Channel 1, embodies the very definition of clean British guitar tone but is enhanced with increased richness and depth.

Channels 1 and 2 are internally linked so that the use of the input labeled “1/2” sends the guitars signal to both channels equally. In this arrangement, each channel is active along with its associated tone controls and blending of the two channels is a simple as adjusting the Volume control for each channel. The true advantage of this type of arrangement lies in the ability to blend Channels 1 and 2 together while still allowing tonal shaping of each channel via their respective Treble and Bass controls.

Plugging into the input labeled “2” breaks the internal connection to Channels 1 and 2 thereby allowing them to function independently. This feature allows the musician to use a completely different signal chain (floor based effects etc.) for each channel if desired, and is fully expanded by the use of an ABY box to select channels 1, 2 or both.

With all of these tonal options available, the Britain 4.0 truly delivers Two Channels, Infinite Tones.

FEATURES

• Channel 1: EF86 Preamp with Volume Treble and Bass Controls. 15/30W Class A, 25W Class A and 50W Class A/B Rotary Switch on back panel.
• Channel 2: 12AX7 “Top Boost” Preamp with Volume Treble and Bass Controls. Power and Standby Switches on back panel.
• EL84 Power Tubes provide 15/30W of Power in Class A modes. EL34 Power Tubes provide 25W of Power in Class A mode and 50W of Power in Class A/B mode. External Locking Bias Trimmer and Test Points on back panel.
• Boost Footswitch for Channel 1 that disables the Treble and Bass controls and provides gain and volume boost and front panel LED indication. Power Entry Module that allows switchable 120/240VAC operation.
• Series FX Loop for Channel 1 and Channel 2. Mains and B Fuses on back panel.
• 8-16 Ohm Speaker Impedance Selector Switch Dual Speaker Jacks on back panel.

CONSTRUCTION FEATURES

• Precision Cut and Welded Anodized Aluminum Chassis Silver Plated Teflon Hookup Wire and Shielded Cable
• Chassis Mount Ceramic Tube Sockets 4” High Flow Output Tube Cooling Fan
• Proprietary Vented Cabinet Design Custom Designed Fan Isolation Mount
• Laser Engraved Stainless Steel Front and Back Face Plates Precision Cut and Drilled 1/8” Fiberglass Turret Boards
• Custom Wound Output and Power Transformers Heavy Duty Carling Switches
• F&T Filter Caps 1W 5% Carbon Comp and Carbon Film Resistors
• Mallory 150 Coupling Capacitors Tube Shields for all preamp tubes
• Central Point Grounding with Star Ground Genuine Neutrik Jacks for Input, FX Loop and Speaker Connections
• Distributed Power Supply Die-cast Chrome Plated Emblem
• Fully Regulated DC Heater Supply for All Preamp Tubes Internally Shielded Cabinet
• Fully Isolated Input, FX Loop and Speaker Jacks Threaded Metal Inserts used to attach back panel of cabinet

SPECIFICATIONS

Output Power

• 15W Class A – (2) – EL84 Cathode Bias Low Voltage
• 30W Class A – (4) – EL84 Cathode Bias Low Voltage
• 25W Class A – (2) – EL34 Cathode Bias Low Voltage
• 50W Class A/B – (2) – EL34 Fixed Bias High Voltage

Tubes

• Preamp Channel 1 1x EF86
• Preamp Channel 2 1x 12AX7
• Phase Inverter 1x 12AX7
• Output 2x – EL34; 4x – EL84

Rectifier: Solid State; 5U4G Simulated in 15/30W and 25W Mode

Input Impedance: 1MΩ

FX Loop Impedance: 1MΩ

FX Loop Wiring: Stereo Plug Tip Send/Ring Return

Weight: 31lbs (Boxed)

Size

• Head Size: 14″ x 8.5″ x 8.25″
• Head Size (Boxed): 18″ x 13″ x 12″
• 1×12 Combo Size: 21.5″ x 18.5″ x 11.5″
• Shipping Package Size: 20″ Wide 12″ Tall 12″ Deep

Line Voltage: 120VAC or 240VAC; Switchable via Back Panel
