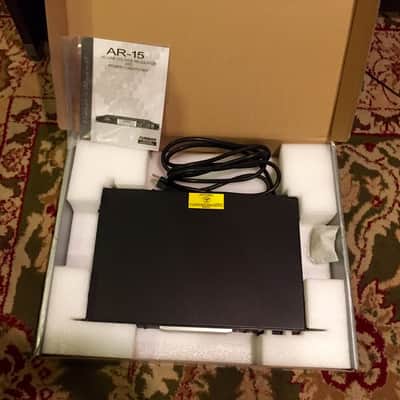

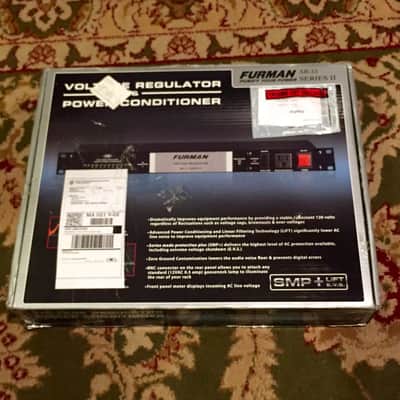

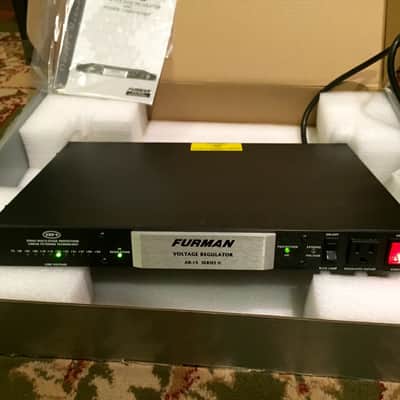

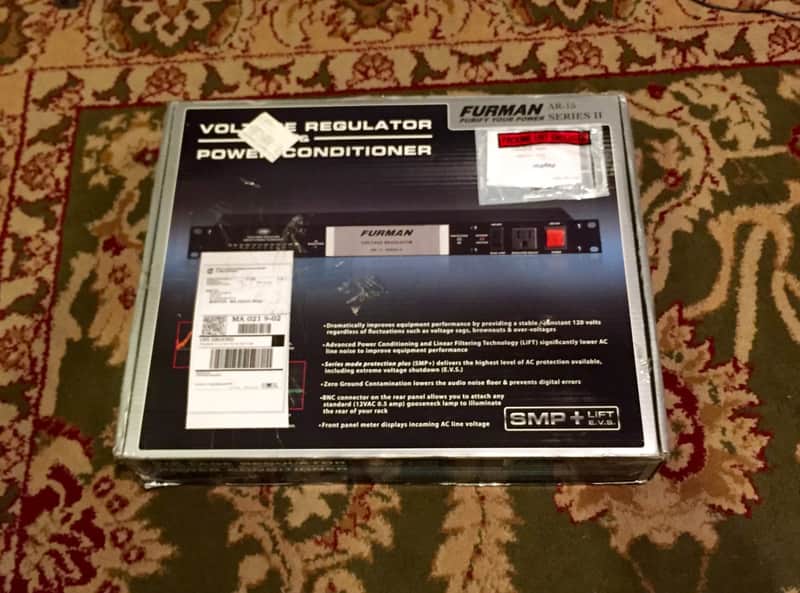

Furman AR-15 II Voltage Regulator / Power Conditioner - In Box

The Furman AR-15 II Voltage Regulator Power Conditioner delivers a clean, constant flow of power while offering solutions to the many noise problems common to today's AC power supply. The Furman AR-15 II is the only regulator that filters and purifies AC power to reduce line noise and ensure optimum performance. Features 8 outputs on the back and one on the front. The AR-15 II delivers a stable 120 volts of AC power at 15 amps to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which+ can cause sensitive electronic equipment to malfunction or sustain damage. The AR-15 II accepts any input voltage from 97V to 141V and transforms it to a constant 120V (+/- 5V).

FEATURES

• Delivers 120 ±5 VAC whenever the input AC line voltage is between 97V and 141V
• Linear Filtering Technology (LiFT) with zero ground contamination
• Series Multi-Stage Protection Plus (SMP+) with Extreme Voltage Shutdown (EVS)
• Output capacity 15 amps
• Low noise torodial autoformer
• BNC connector on the rear panel allows you to attach any standard 12V goose neck lamp to illuminate the rear of your rack

SPECIFICATIONS

AR-15 II Voltage Regulator Power Conditioner

• Spike Protection Modes: Line to neutral, zero ground leakage
• Spike Clamping Voltage: 188 Vpk @ 3,000 amps, 133 VAC RMS
• (tested to UL-1449 6,000 Vpk @ 3,000 amps)
• Response time: 1 nanosecond
• Maximum surge current: 6,500 amps
• Voltmeter Accuracy: ±5V
• In Regulation Ranges: AR-15 II: Provides regulation ±5V in 120V mode from 97 to 141V
• AR-15 IIJ: Provides regulation ±4V in 100V mode from 80 to 122V.
• Noise attenuation:10dB @ 10kHz / 40dB @ 100 kHz / 100dB @ 10MHz
• Linear attenuation curve from 0.05 - 100 ohms line impedance
• Shutdown Range: Above 137V
• Dimensions:
• 19" W x 11.63" D x 1.75" H (48.26 x 29.54 x 4.45 cm)
• Weight: 14.5 lbs. (6.58 kg)
• Current Rating: The AR-15 II is capable of 15 amps for input voltages of 124V (104V in 100V mode) or higher; derate at 113 mA per volt to a minimum of 12:3A
• Three Year Limited Warranty:
• The AC-15 II is protected by a limited three-year warranty covering defects in materials and workmanship. (See manual for details.)
