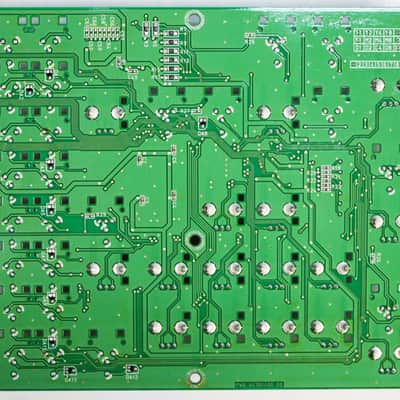

Roland M-400 V-Mixer Encoder Board

Roland M-400 Encoder Board

Outside the lower 48 states? Message us! We ship worldwide :)

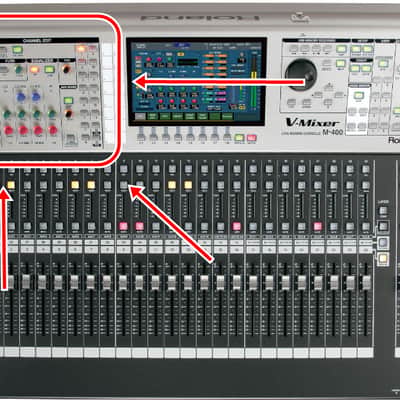

**Please note that the m-400 mixing console isn't included. The stock photo provided is for presentation purposes only**

We ask you to look at our pictures and invite you to reach out with any questions. We're happy to help!

Description

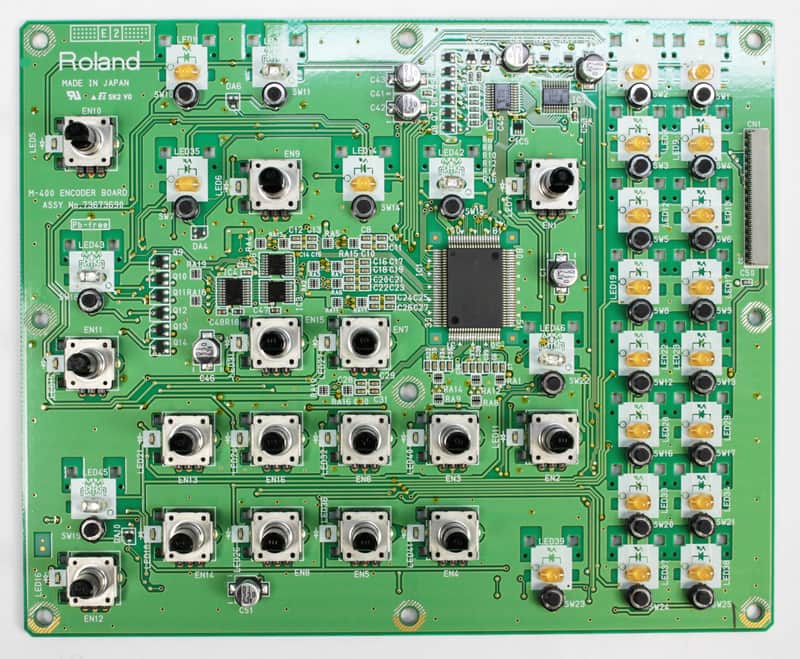

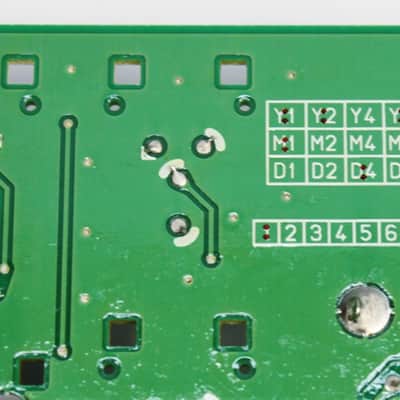

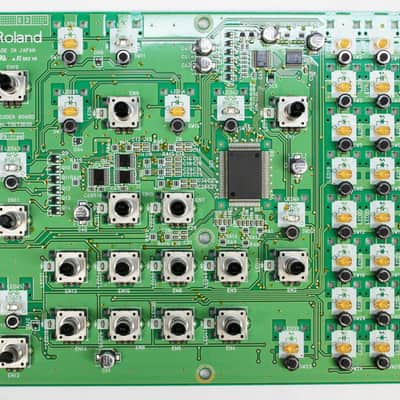

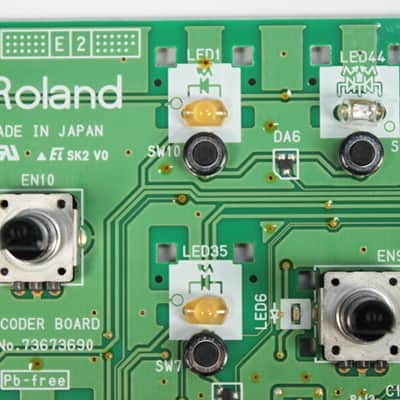

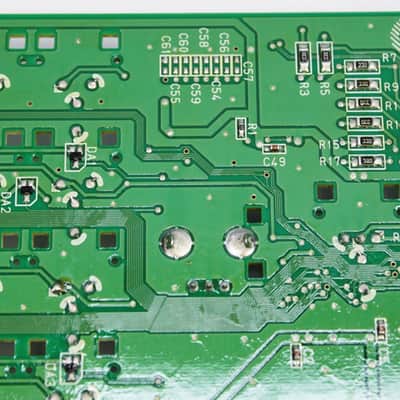

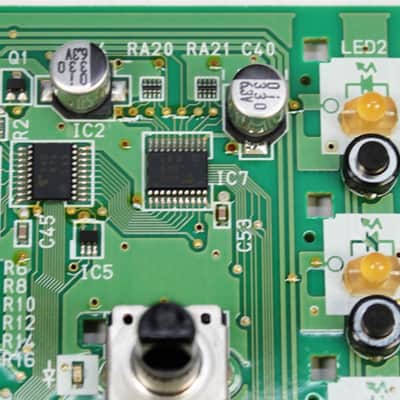

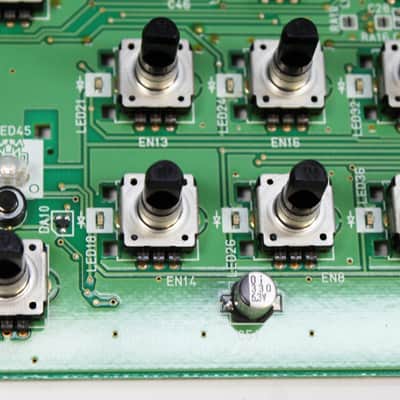

Here's a brand new Encoder Board replacement for your Roland M-400 digital mixing console. Save big by replacing parts rather than buying a brand new unit entirely. Below are the M-400 specs for your reference:

SPECS

Processing

• Channels: 48 Inputs / 18 Buses
• Signal Processing: 56-bit
• AD/DA Conversion: 24-bit
• Sample Rate: 44.1 kHz or 48 kHz (system latency spec at 48.0 kHz)
• Network Latency: 2.8 ms (typical)
• • Total system latency from S-1608 inputs to outputs via M-400 REAC ports (A or B)
• Effects: No insert effects

ConnectorsInputs

• XLR Inputs (1–8): XLR-3-31 type (balanced, phantom power)
• Talkback Mic Input: XLR-3-31 type (balanced, phantom power)
• RCA Inputs (L/R): RCA pin type

Outputs

• XLR Outputs (1–8): XLR-3-32 type (balanced)
• Phones Output: Stereo 1/4" phone type
• Digital Outputs: Optical ×1, Coaxial ×1

Network / Data

• REAC Ports: RJ-45 EtherCon ×3
• USB Ports: Type-A ×1, Type-B ×1
• Remote Connectors:
• • RS-232C (D-Sub 9-pin) ×1*
  • MIDI (5-pin DIN) ×2 (Out/Thru & In)
  • Serial remote control not available on Version 1 firmware

Other

• LAMP: XLR-4-31 type ×1
• Grounding Terminal
• AC Input

Audio PerformanceFrequency Response

• XLR Outputs (1–8): -2 dB / +0 dB (20 kΩ load, +4 dBu)
• Phones Jack: -3 dB / +0 dB (40 Ω load, 150 mW)

Total Harmonic Distortion + Noise

• XLR Outputs (1–8): 0.05% (typical)
• Phones Jack: 0.05% (typical)

Dynamic Range

• XLR Outputs (1–8): 110 dB (typical)

Crosstalk @ 1 kHz

• XLR Inputs (1–8): -80 dB (Pad ON, Input Gain +10 dBu, typical)
• XLR Outputs (1–8): -100 dB (typical)

Input SpecificationsNominal Input Level (Variable)

• XLR Inputs (1–8):
• • -65 to -10 dBu (Pad OFF)
  • -45 to +10 dBu (Pad ON)
• RCA Inputs (L/R): -18 to 0 dBu
• Talkback Input: -50 to -10 dBu

Input Impedance

• XLR Inputs (1–8): 14 kΩ
• RCA Inputs (L/R): 10 kΩ
• Talkback Input: 41 kΩ

Maximum Input Level (Non-Clip)

• XLR Inputs (1–8):
• • +8 dBu (Pad OFF)
  • +28 dBu (Pad ON)
• RCA Inputs (L/R): +18 dBu
• Talkback Input: +8 dBu

Output SpecificationsNominal Output Level

• XLR Outputs (1–8): +4 dBu (10 kΩ load)

Output Impedance

• XLR Outputs (1–8): 600 Ω
• Phones Jack: 100 Ω

Recommended Load Impedance

• XLR Outputs (1–8): 10 kΩ or greater
• Phones Jack: 8 Ω or greater

Maximum Output Level (Non-Clip)

• XLR Outputs (1–8): +22 dBu (1 kHz, 10 kΩ load)
• Phones Jack: 150 mW + 150 mW (1 kHz, 40 Ω load)

Noise

• Residual Noise (IHF-A, typical): -88 dBu (All faders minimum)
• Equivalent Input Noise (E.I.N.): -126 dBu

Display & Power

• Display: 800 × 480 Wide VGA backlit TFT full color
• Power Supply:
• • AC 115 V / 117 V / 220 V / 230 V / 240 V (50/60 Hz)
• Power Consumption: 95 W
