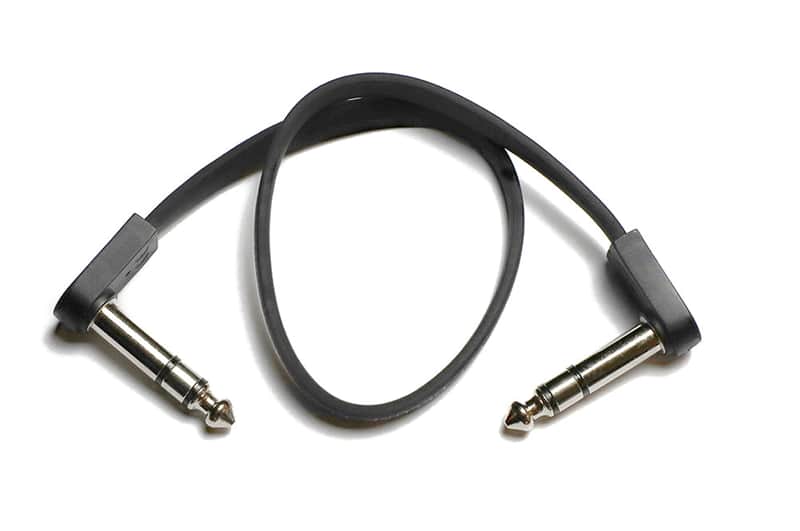

EBS Flat Patch Cable with TRS Stereo Ends - 28 CM
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
If you have ever struggled with limited space on your pedalboard, the super compact and affordable EBS Flat Patch Cables will help end the frustration. They perform excellently on sound and flexibility while reducing the required space between pedals to a minimum with their unique design.
THE EBS PCF DELUXE STEREO FLAT PATCH CABLE (PCF-DLS) IS BASED ON THE EBS ORIGINAL FLAT PATCH CABLE BUT WITH TRS CONTACTS TO TRANSPORT STEREO SIGNAL.
Features
Contact Housing
New! 30% Reduced Size Contact Housing (from September 2021)
Cable Type
Flat Patch Cables
Conductors
Copper Conductors
Contacts
Super Compact Angled Contacts
Shielding
Extremely Well Double Shielded
Resistance
Low Resistance
Cable Type
Stereo (TRS) cables
Specs
- Conductor: Flexible copper conductor, low voltage audio signal system
- Operating Temperature: -15ºC to +70ºC
- Outer Insulation: PE (polyethylene)
- Signal Copper Cores: 20 x 0.12 mm
- Signal Insulation: PE (polyethylene)
- Copper Twisted Shield: 38 x 0.12 mm
- Capacitance Cond./Shield: < 10 pF/decimeter
- Conductor Resistance: < 10 mΩ/decimeter
- Dimensions: 6 x 3 mm
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Categories |
Product safety information may be available here.
