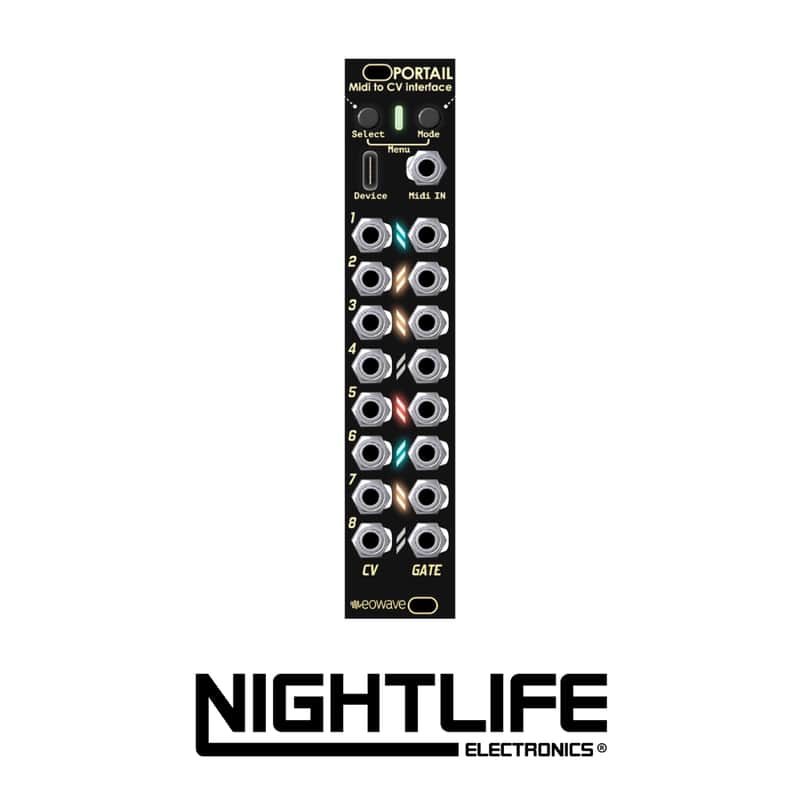

Eowave Portail

Portail is a MIDI/CV gate interface that can be configured using a web configurator or a simple embed editor.

It can be connected to various devices via the TRS Midi socket or the USB C port.

The interface can be configured in several ways:

• create classic cv/gate outputs
• create polyphonic cv/gate outputs with different modes
• create drum stacks to trig gate with consecutive midi notes
• create dynamic gates outputs with the gate level reacting note velocity
• output midi clock, whose division will be controllable with midi cc
• output internal envelopes and lfos whose parameters are controllable with cc and more.

On each different mode it's possible to add filters like gate probability, and scale quantizer.

• Width: 5HP
• Depth: 30mm
• Power: 110mA @ +12V / 20mA @ -12V

Features:

• 16 cv/gate outs
• USB C / TRS midi connection
• Dynamic gate possibility
• Classic midi to cv/gate interface
• Output envelopes, LFOs
• Connect your external sequencer, groove machines, computer
• Skiff friendly
