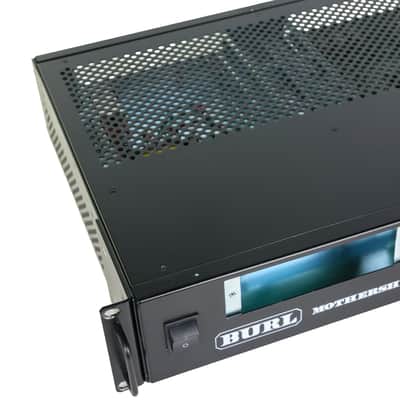

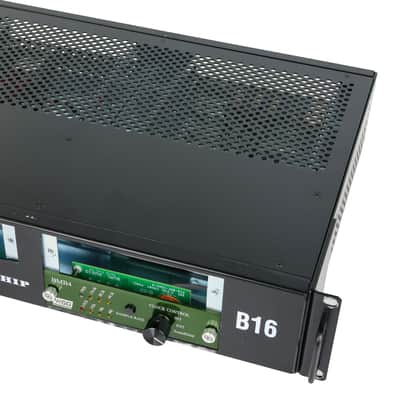

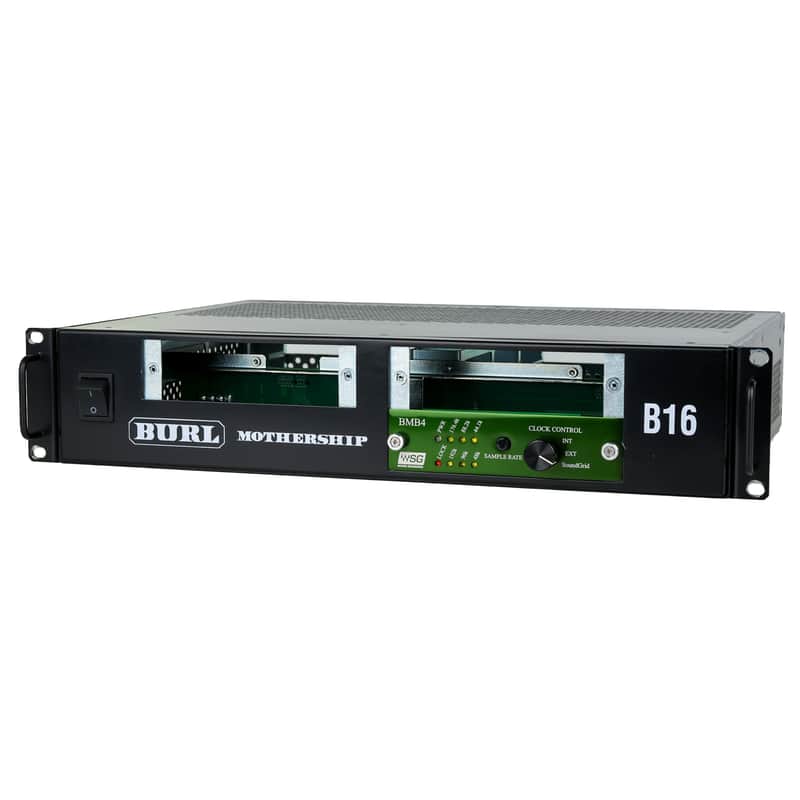

BURL Audio B16 Mothership AD/DA Converter with BMB4 Waves SoundGrid Motherboard #0274 (Used)

This item has been carefully inspected, tested and serviced by our expert tech team. All vintage, used and open-box items we sell are backed by an industry-leading warranty. Expand your studio with confidence knowing that we have you covered.

The BURL Audio B16 Mothership is a 2U, 2-slot version of the revolutionary B80 Mothership, Burl Audio’s signature product. Simply put, the B80 Mothership has redefined digital recording, and now the legendary sound can be found in a smaller, more portable B16 Mothership. Utilizing technology developed for the B80, the new B16 Mothership uses the exact same I/O cards as the B80 Mothership, continuing Burl Audio's deep dedication to analog, Class A circuitry. The result is not only heard, but it is also felt. The Mothership stands out from every other interface on the market not because it is colored, but because it does not sterilize the source.

Using a card-based system, and a heavy-duty 2U chassis, the B16 Mothership employs 2 daughter card slots with an internal power supply and your choice of Motherboard for Digilink, MADI, Dante, or SoundGrid connectivity. Every ADC channel uses a proprietary BX1 transformer and every DAC channel has the latest Burl Audio discrete op-amp, BOPA4.

For anyone who has yearned for a Mothership in a smaller format, this is a dream come true. Check out our to learn more about the Burl B80 and B16 Motherships and their respective AD/DA option cards.

The BMB4 features an Ethernet port for 64 IO channels of Waves SoundGrid connectivity. SoundGrid is an Audio-over-Ethernet networking and processing technology developed by Waves. SoundGrid provides extremely low-latency, high-channel-count audio processing using standard Intel CPUs and 1 Gbps Ethernet networks for studio, live sound, and other real-time professional audio applications. Real-time audio processing is performed on standard Intel-based plugin servers, running a Waves-customized real-time version of Linux. Waves SoundGrid audio over Ethernet technology is a robust, proven system for audio over IP networking. Amongst the competing standards for audio over IP, SoundGrid boasts impressive, low latency. With 6 BAD8s and 4 BDA8s a 48×32 IO can be achieved. With 2 BAD8s and 8 BDA8s a 16×64 IO can be achieved. With the configurability of the Mothership the IO possibilities are limitless.

• 1 SoundGrid Ethernet port
• 64-channel IO at 44.1k, 48k, 88.2k, 96k
• 2 BNC Word Clock outputs
• 1 BNC Word Clock input

• 2-slot chassis for Burl Audio converter modules
• Waves SoundGrid motherboard included
• Robust 2U chassis with an internal power supply
• Modular format with a host of analog and digital cards allows you to create your own custom converter configuration

Vintage King offers an industry-leading level of technical service and warranty support on our used and vintage items. Our used item warranty periods are as follows:

• Analog Outboard Gear – 1 Year
• Microphones – 1 Year (excluding capsules, tubes, and ribbon elements)
• Speakers – 1 Year (excluding drivers)
• Digital Outboard Gear – 30 Days
