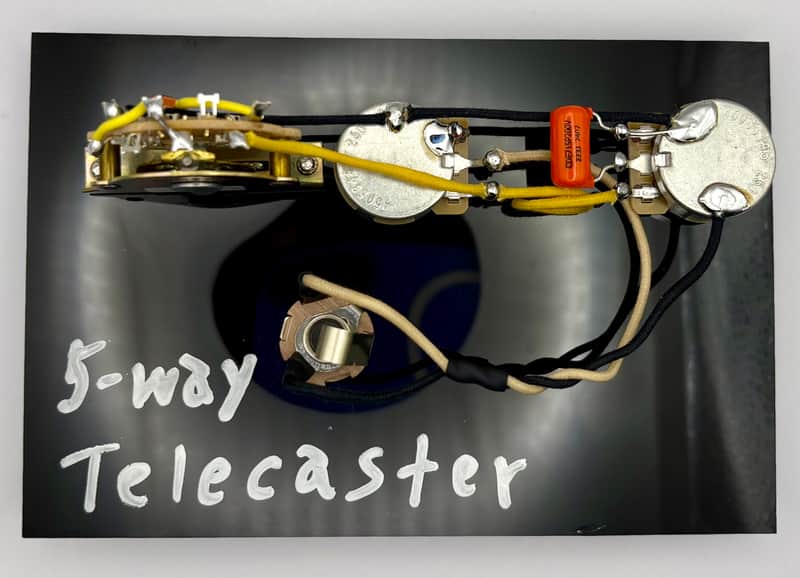

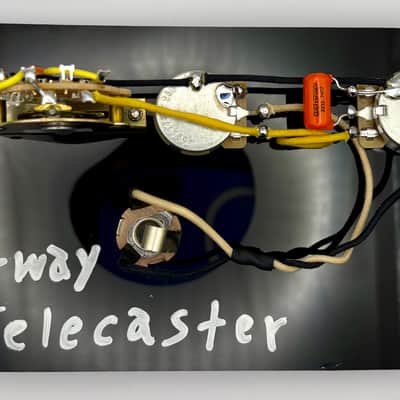

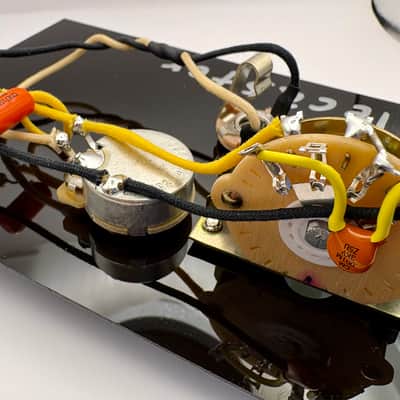

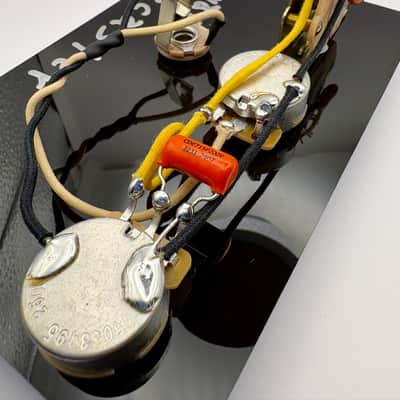

Premium upgrade Fender Telecaster 5-Way wiring harness. A simple way to add a little extra to your Telecaster - replace the standard 3-way switch and add a 0.001uF fixed capacitor in series with a 5-way switch and you add two extra dimensions to your tone.
- (2) CTS 250k solid short shaft audio taper potentiometers
- Oak Grisby 5-way switch (#51993)

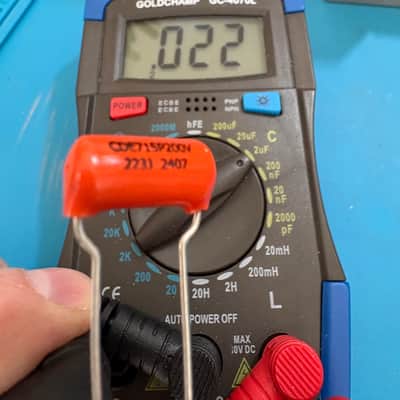

- Sprague orange drop 0.022uF capacitor
-Sprague orange drop 0.001uF series capacitor
- Switchcraft 1/4" input jack
- Gavitt 22awg vintage cloth push back wire for all connections
This setup enables the HOOP (half out of phase switching options) as well as your traditional Telecaster switch positions.
The first 3 positions are the same as your typical Telecaster (neck, neck + bridge in parallel and bridge) with the addition of 2 further options.
Position 2 on the switch puts the neck and bridge pickups half out of phase with each other, whilst the 1st position on the switch puts the neck pickup up on a fixed capacitor in series (0.001uF) which is similar to the Esquire Eldred Mod. Half out of phase wiring generally sounds a bit fuller/sweeter and is similar to those "in between" sounds you can get from a Strat.
5-Way Switch positions:
1. Neck with series cap
2. Neck & bridge HOOP
3. Bridge
4. Neck & Bridge parallel
5. Neck

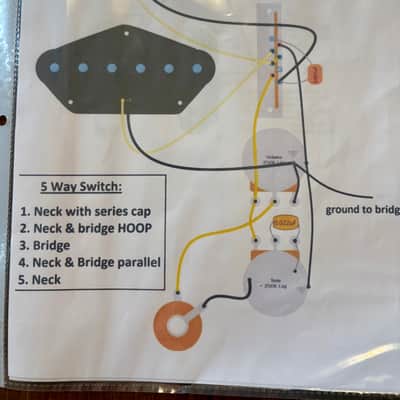

*** Wiring diagram included. Custom wiring variations or capacitors (0.033uF or 0.047uF) can be made upon request.
