SuperSwitcher

• Programmable effects hub pedal
• Extensive I and O maximizes flexibility and control
• Has mono and stereo send and return, among others
• Has tuner and tap tempo outs, MIDI In and Out, and more
• Features eight mechanical-relay controlled, true bypass loops
• Provides 128 presets of 16 banks with 8 presets each
• Tap footswitch sets BPM
• Tuner footswitch sends input signal to tuner out
• Boost footswitch engages a knob adjustable
• Output gain Boost on both left and right channels

Product Description

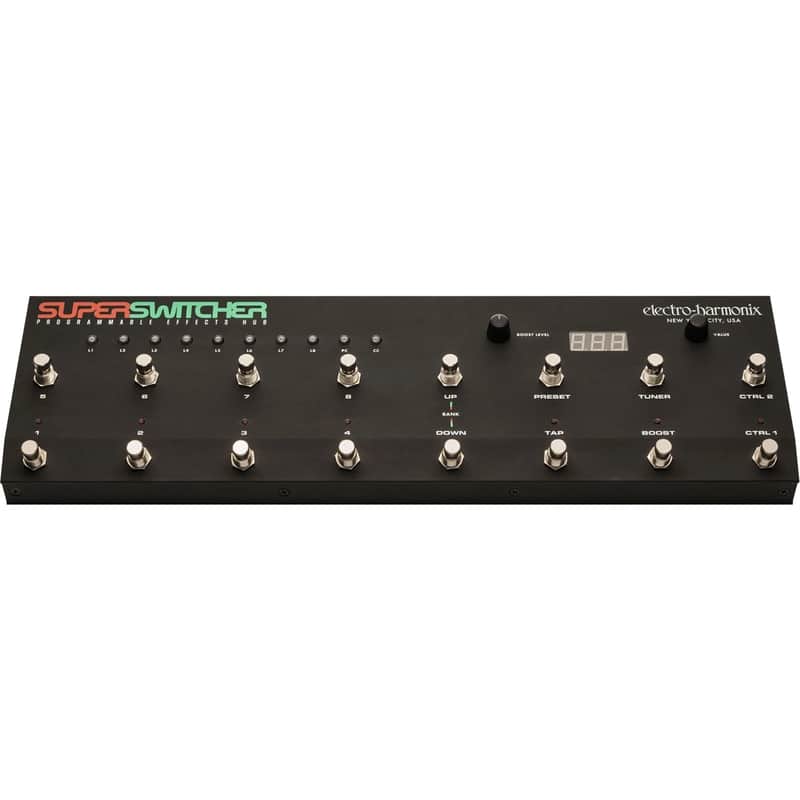

The Electro-Harmonix Super Switcher Programmable Effects Hub Pedal, as its name implies, offers a powerful solution for players who are tired of ‘tap dancing’ around their pedalboard. In effect, it moves all of your pedals to your pedalboard’s front row while delivering control of them with one button push. The result is that it puts the player back in control of an unruly pedalboard. It’s also perfect for any guitarist using the ‘four-cable method’ because it makes it easy to properly route effects that should go in front of an amp and those that are best in the effects loop. When it comes to live performance, the Super Switcher can efficiently organize presets into banks that are easy to recall and match your show’s setlist. If you’re playing to a click track and want to have the presets recalled via MIDI programmed to a song, the Super Switcher can handle that, too. It’s also a great way to sync time-based effects to the same master clock.
Features
Extensive In and Out maximizes flexibility and control. Features mono and stereo send and return, insert send and return, and mono and stereo out. Equipped with tuner and tap tempo outs, MIDI In and Out, and more. It features eight mechanical-relay controlled, true bypass loops and provides 128 presets: 16 banks with 8 presets each. Tap the footswitch to set the BPM. The Super Switcher can be configured to send or receive MIDI clock and send tap signals to the output. BPM can be global or per preset. The Tuner footswitch sends the input signal to the tuner out and cuts off the signal from any loops or output. Boost footswitch engages a knob adjustable, output gain Boost on both the left and right channels.
Illuminated Buttons and Footswitches
The illuminated buttons for loops 1-8 both control and display the on or off status of the corresponding effects loop. Footswitches 1-8 engage and disengage the corresponding presets 1-8 for the bank that is currently selected. Bank Up and Bank Down footswitches increment or decrement through the preset banks. There are 16 banks each with 8 presets. The Preset footswitch toggles the Super Switcher between its normal Preset Mode and a manual mode called Instant Access Mode. Two or more presses on the Tap footswitch update the BPM setting for the Super Switcher. The Tap footswitch also controls the tempo signal that is output from the Tap jack. When the Tuner footswitch is pressed, the Super Switcher sends the IN signal directly to the Tuner jack. The Boost footswitch turns On and Off the stereo output boost. The Ctrl 1 footswitch can be used to switch amp channels, trigger remote effects, etc. Ctrl 1 can be set normally open or closed. Ctrl 1 can be set to momentary or latching. Ctrl 1 can be set as a master bypass button. The Ctrl 2 footswitch can be used to switch amp channels, trigger remote effects, etc. Ctrl 2 can be set to normally open or closed. Ctrl 2 can be set to momentary or latching.

What's in the Box

• Electro-Harmonix Super Switcher Programmable Effects Hub Pedal with 8 True Bypass Loops
• Power Adapter
• Limited 1-Year Warranty
