Olivella Modular Duplex
Our users rate Reverb
New unit, sold with full warranty.

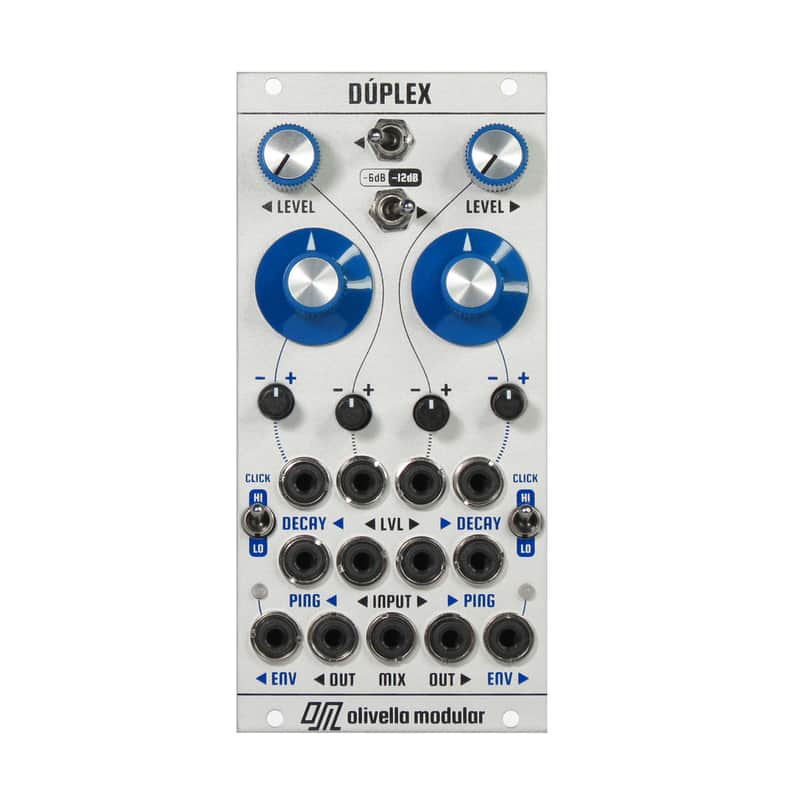

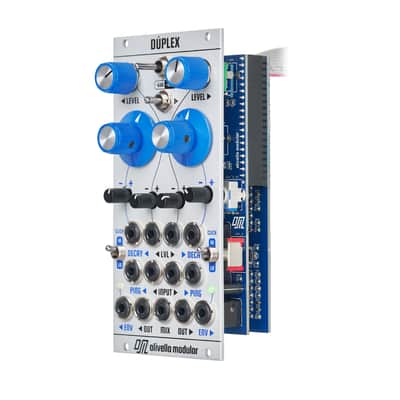

DÚPLEX is a dual solid-state low pass gate, featuring no vactrols but sounding exactly like the real thing. Each channel has: voltage control over decay, level and offset, a PING input that converts any signal into a suitable trigger for the circuit (running all the way into audio rates!), a 1-pole or 2-pole filter response, a switchable CLICK amount and an envelope output. The module is fully DC-coupled, so it can also process CV as well as audio.
Features
- Complex envelope-based vactrol-free core
- DECAY knob and CV input w/attenuverter per channel
- LEVEL knob and CV input w/attenuverter per channel
- PING inputs that convert almost any signal into a suitable trigger for the core
- -6dB/oct or -12dB/oct filtering response switch per channel
- CLICK softens (or not) the initial transient of the sound
- ENV outputs per channel
- MIX output
Specifications
- 12HP
- Depth: 30mm
- 2mm anodized aluminium panel
- Fully DC-coupled
- All CV inputs allow audio-rate modulation, PING up to ~100 Hz
- Input impedance: 100 kΩ
- Output impedance: 510 Ω
- +12V: 110mA
- -12V: 65mA
- Reverse-polarity power protection
