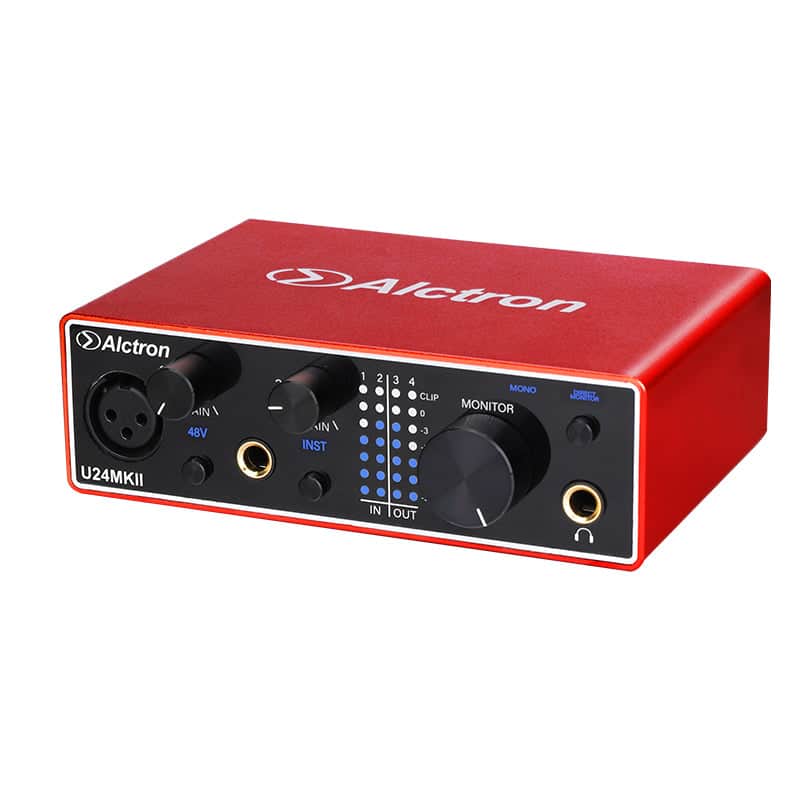

Alctron U24 MKII 2-Channel Audio Interface

Product Introduction:

The U24MKII is a high-performance USB audio interface. Its 24-bit/192kHz chip provides faster performance speed during recording and preserves more sound details. The professional circuit features high definition and resolution, meeting the high recording requirements for vocals and instruments. Its wider dynamic range, low noise, and low distortion make the audio interface applicable in most scenarios. It transmits signals at high speed, supports ASIO software, and achieves low-latency performance. The Signal LED indicator handles the levels more effectively. Optimized drivers offer reliable performance on both MAC and PC, while also being compatible with most DAWs, enabling plug-and-play functionality.

High performance 24bit/192khz converters

High-headroom instrument input for bass, guitar etc

Unique, intuitive level indicators for optimized gain staging

Super low latency lets you monitor with native plug-in effects in real time

Mic Input:
- Frequency Response: 20Hz - 20 kHz +/- 0.1 dB
- THD + N: 0.006% (min gain, input: 400mV, A-weighted)
- Noise: -86 dBu
- Gain Range: 18dB - 48dB

Instrument Input:
- Frequency Response: 20Hz - 20 kHz +/- 0.1 dB
- THD + N: 0.01% (min gain, input: 400mV, A-weighted)
- Noise: -94 dBu
- Max Input Level: +11.5 dBu

Line Input:
- Frequency Response: 20 Hz +/- 0.5 dB, +/- 0.1 dB
- THD + N: 0.006% (min gain, input: 400mV, A-weighted)
- Noise: -95dBu
- Max Input Level: +18.5 dBu

Line Output:
- Max Input Level: +13 dBu balanced
- THD + N: -0.006%
- Material: Aluminum
- Net Weight: 439g
